Installation Procedure

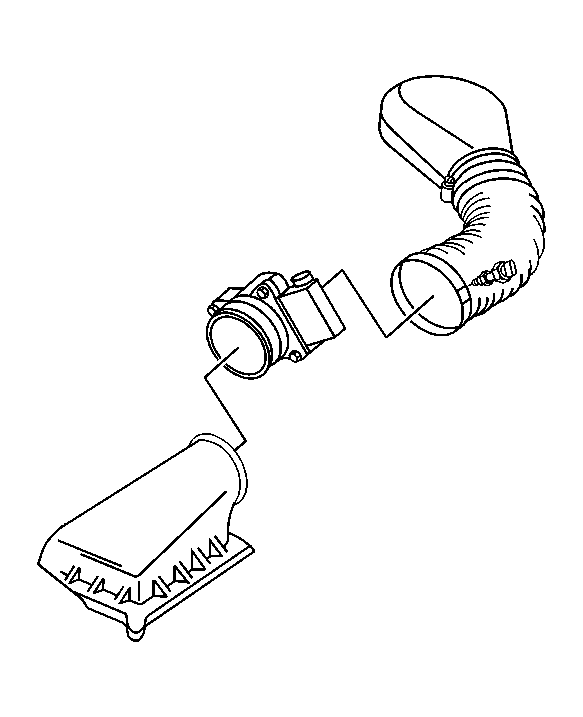

    Fig 1: View Of Mass Air Flow Sensor
    GM288460Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The embossed arrow on the MAF sensor indicates the proper air flow direction. The arrow must point towards the engine.
  1. Install the MAF sensor to the air cleaner outlet duct and the air cleaner cover.
  2. Secure the air cleaner cover and outlet duct to the MAF sensor.

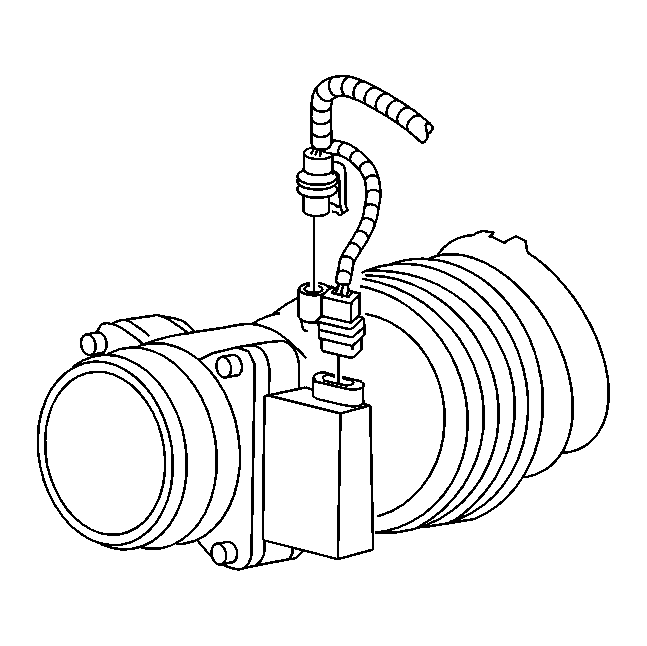

    3. Fig 2: View Of MAF Sensor Harness Connector
    GM281851Courtesy of GENERAL MOTORS CORP.
  3. Connect the MAF sensor harness connector.
