Installation Procedure

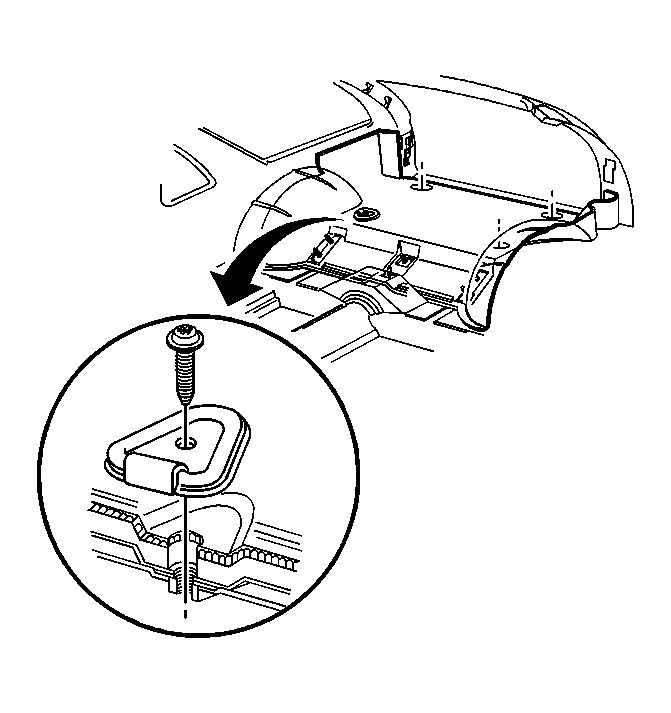

    Fig 1: View Of Cargo Tie down
    GM613646Courtesy of GENERAL MOTORS CORP.
  1. Position the cargo tie down loop on the floor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the cargo tie down loop to the floor with the mounting bolt.

    Tighten:  Tighten the cargo tie down loop mounting bolt to 35 N.m (26 lb ft).
