Installation Procedure

NOTE: Refer to Installing Hoses Without Twists or Bends Notice in Cautions and Notices.

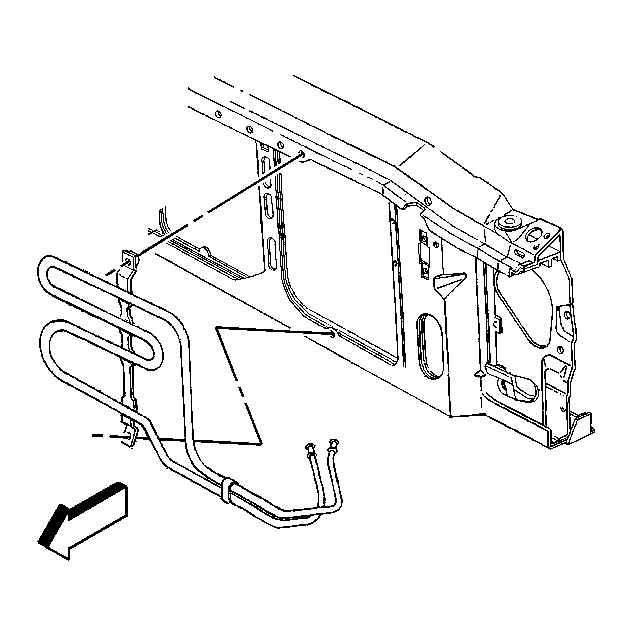

Fig 1: View Of Power Steering Cooler

Courtesy of GENERAL MOTORS CORP.

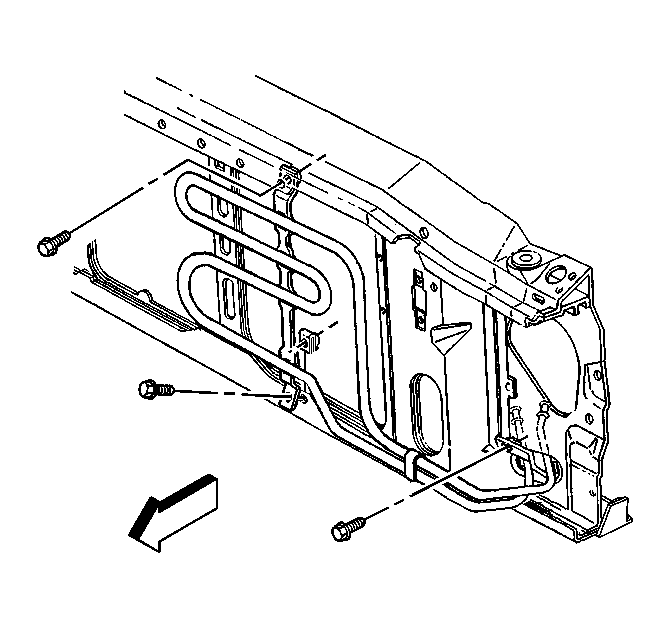

Fig 2: Locating Power Steering Cooler Retaining Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the power steering cooler retaining bolts.
Tighten: Tighten the bolts to 10 N.m (89 lb in).

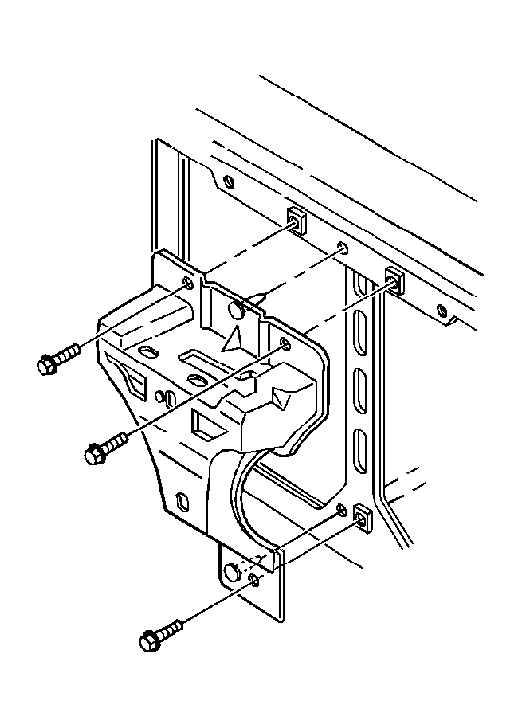

Fig 3: View Of Primary Hood Latch Support Bracket

Courtesy of GENERAL MOTORS CORP.

Reposition the hood latch support to the radiator core support.
Install the hood latch support mounting bolts.
Tighten: Tighten the bolts to 25 N.m (18 lb ft).

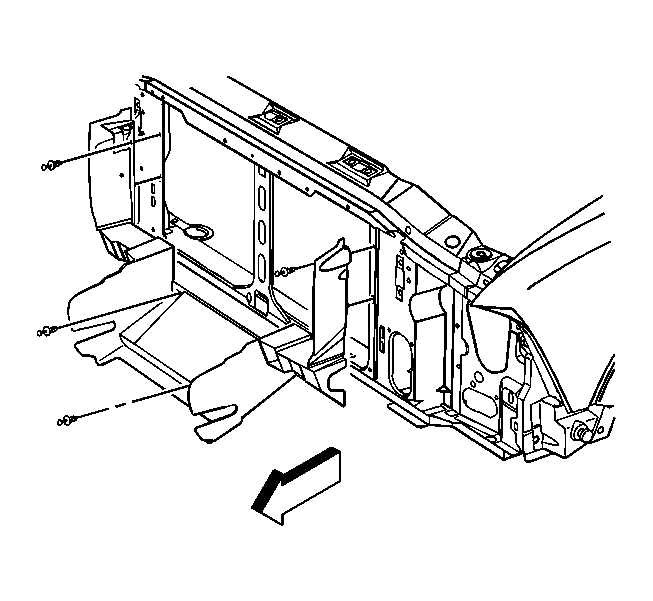

Fig 4: View Of Radiator Air Intake Baffle

Courtesy of GENERAL MOTORS CORP.

Reposition the radiator air intake baffle to the radiator core support.
Install the radiator air intake baffle retaining clips to the LH side.
Install the grille. Refer to Grille Replacement (GMC) or Grille Replacement (Chevrolet) in Exterior Trim.

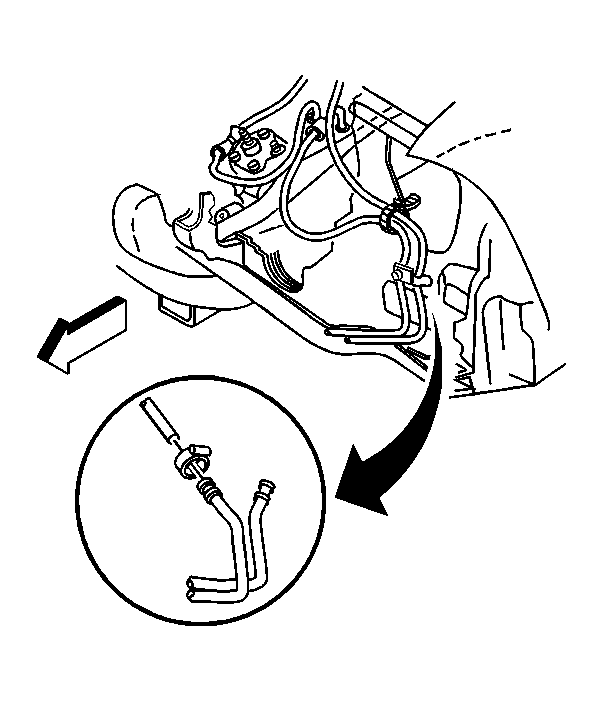

Fig 5: View Of Power Steering Cooler Hose At Power Steering Cooler

Courtesy of GENERAL MOTORS CORP.

Connect the power steering cooler hoses to the power steering cooler.
Tighten: Tighten the power steering hoses clamps to 2 N.m (18 lb in).
Remove the drain pan from under the vehicle.
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 4.3L.
Bleed the power steering system. Refer to Bleeding the Power Steering System .
