Automatic Transmission Shift Lock Control Schematics

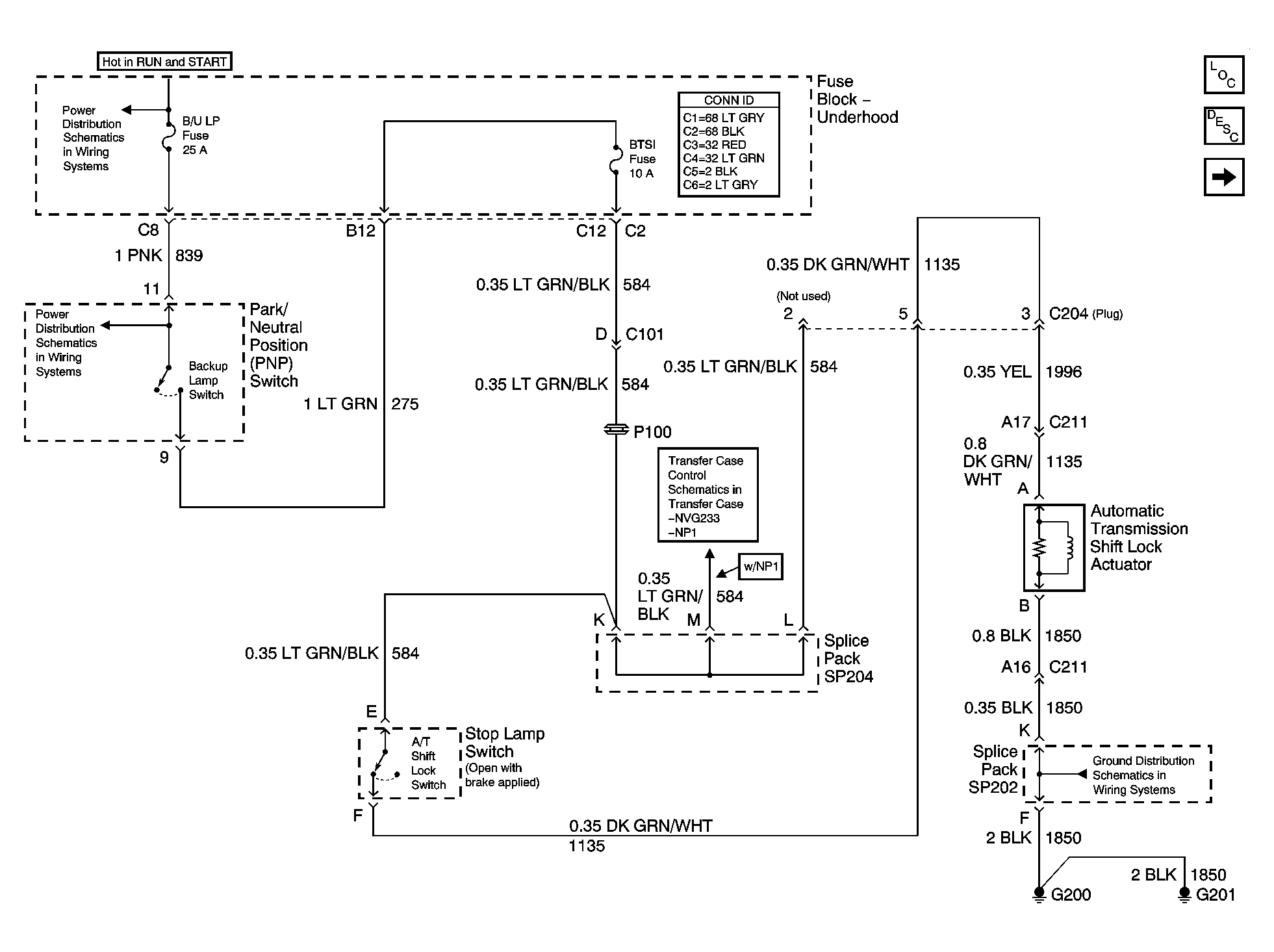

Fig 1: Automatic Transmission Shift Lock Control Schematic w/Column Shift
Courtesy of GENERAL MOTORS CORP.

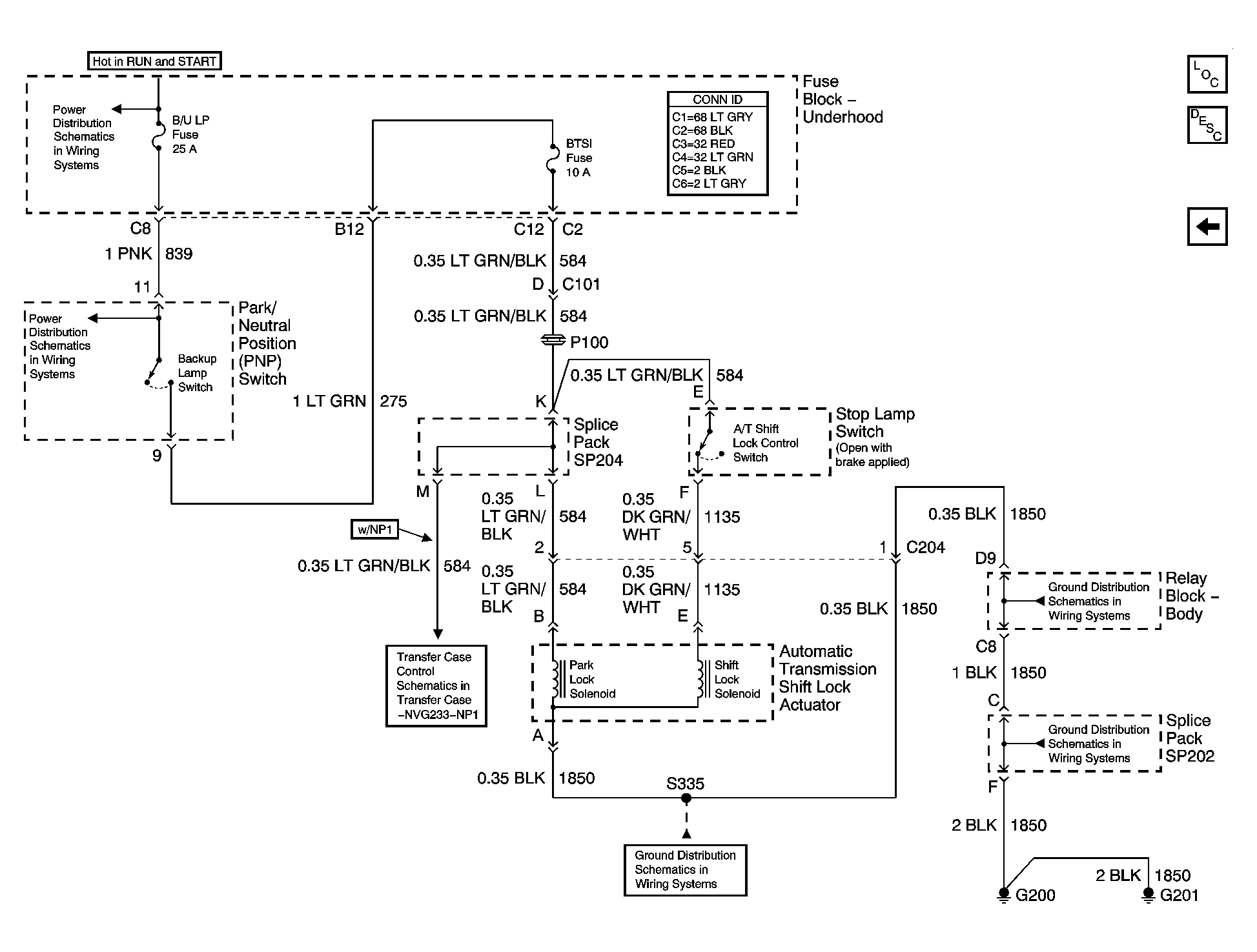

Fig 2: Automatic Transmission Shift Lock Control Schematic w/Floor Shift
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
