Stationary Windows Component Views

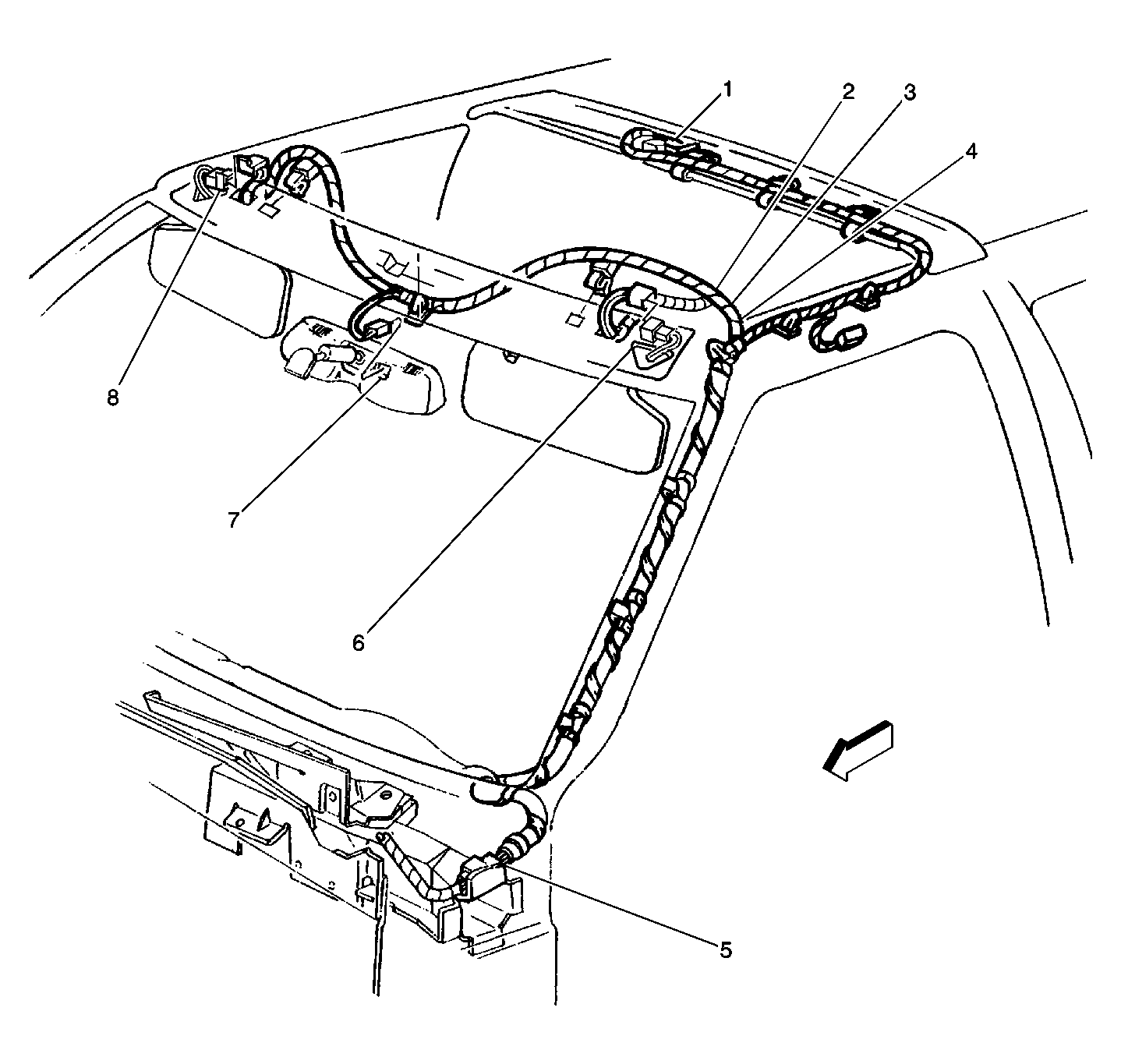

Fig 1: Dome Lamp Harness w/o Driver Information Center (DIC) (Utility)
GM357174Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Dome Lamp
2 S300
3 S302
4 Dome Lamp Harness
5 C209
6 Vanity Mirror Lamp - Left
7 Inside Rearview Mirror
8 Vanity Mirror Lamp - Right

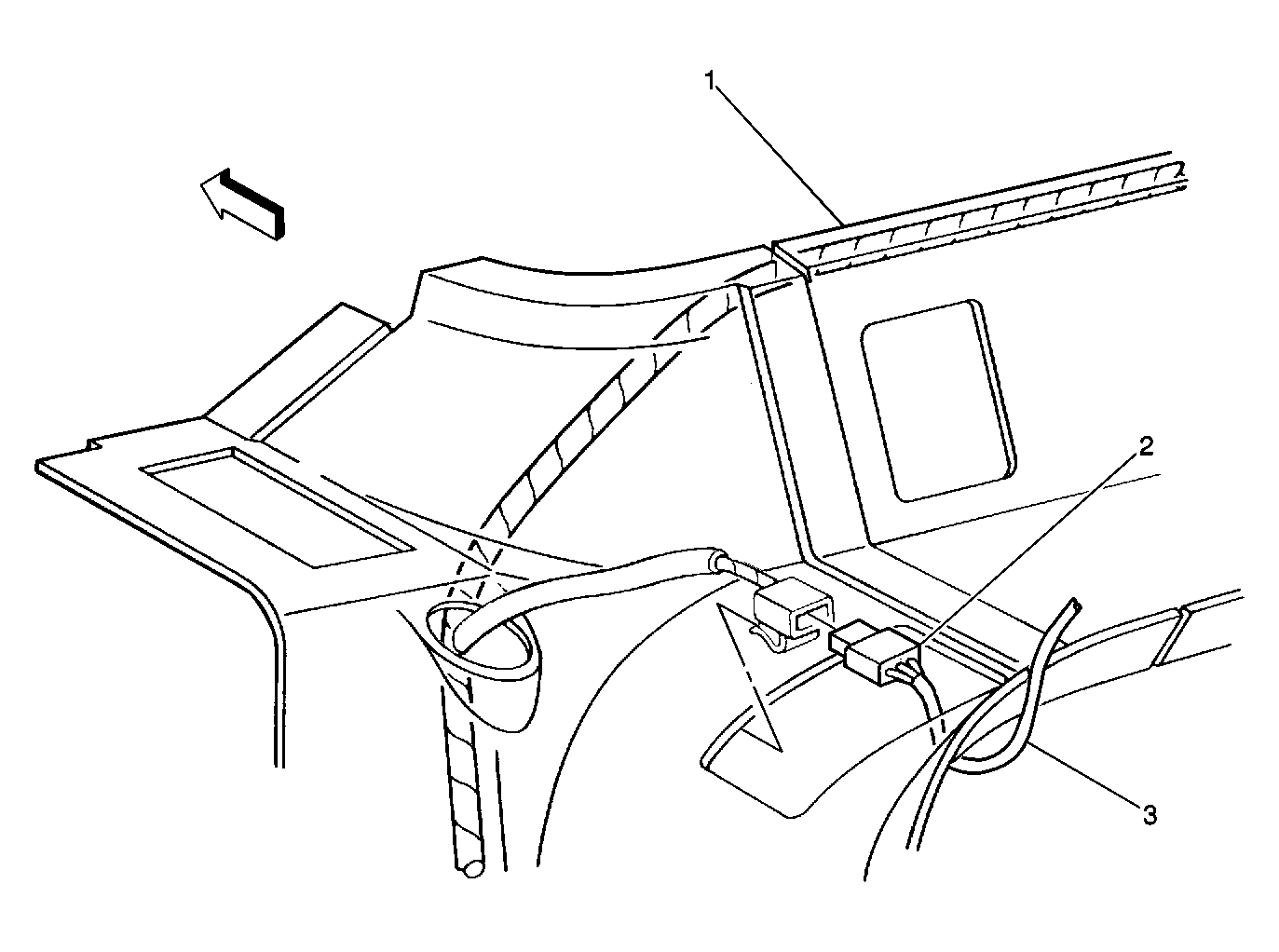

Fig 2: Body Opening Frame, Rear Window Defogger, Extension Harness
GM357346Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Endgate
2 Rear Window Defogger Connector, RH (C433), LH (C432)
3 Rear Window Defogger Harness
