ABS Schematics

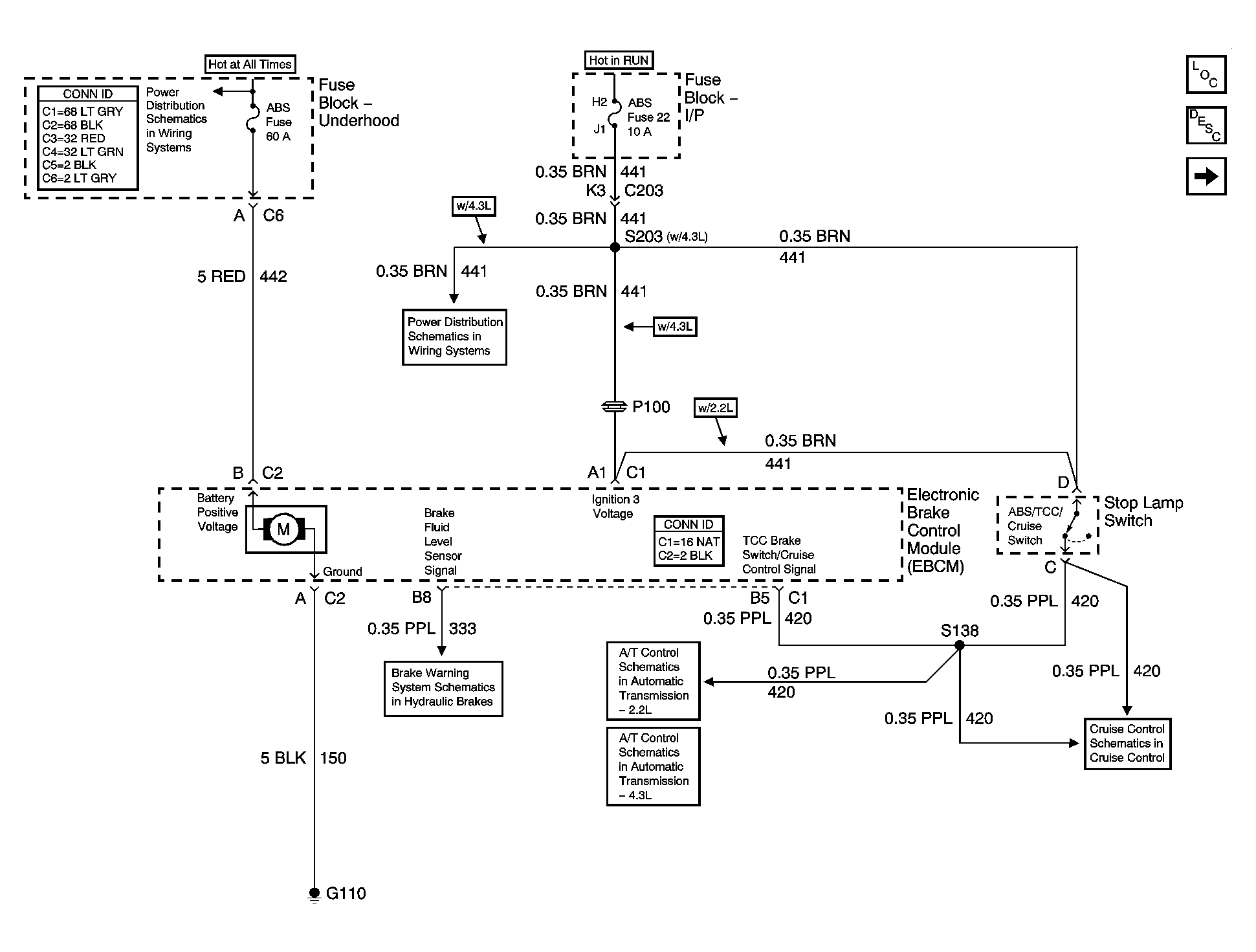

Fig 1: ABS Power and Ground Schematic

GM888480

Courtesy of GENERAL MOTORS CORP.

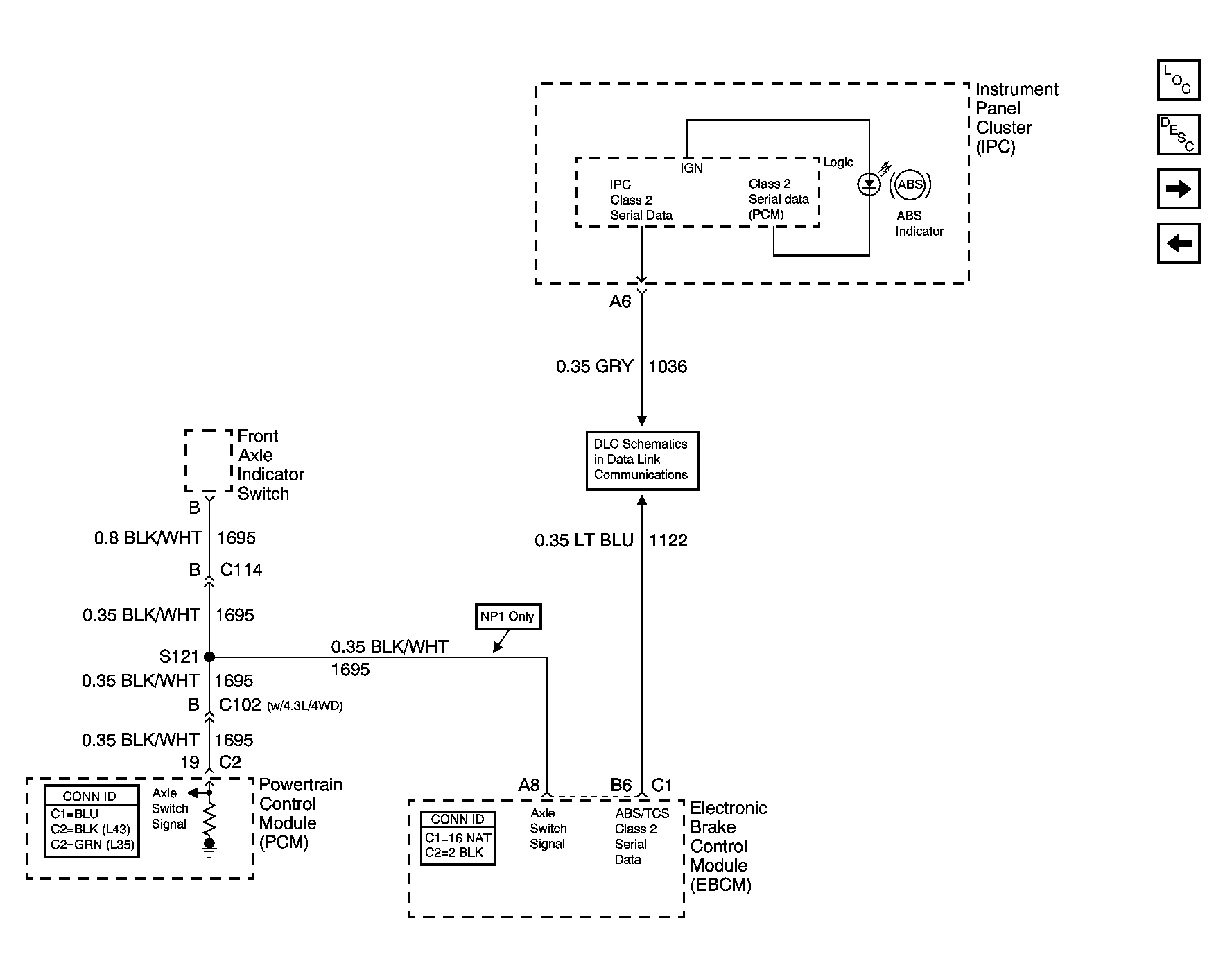

Fig 2: Class 2 Communication Schematic

GM884541

Courtesy of GENERAL MOTORS CORP.

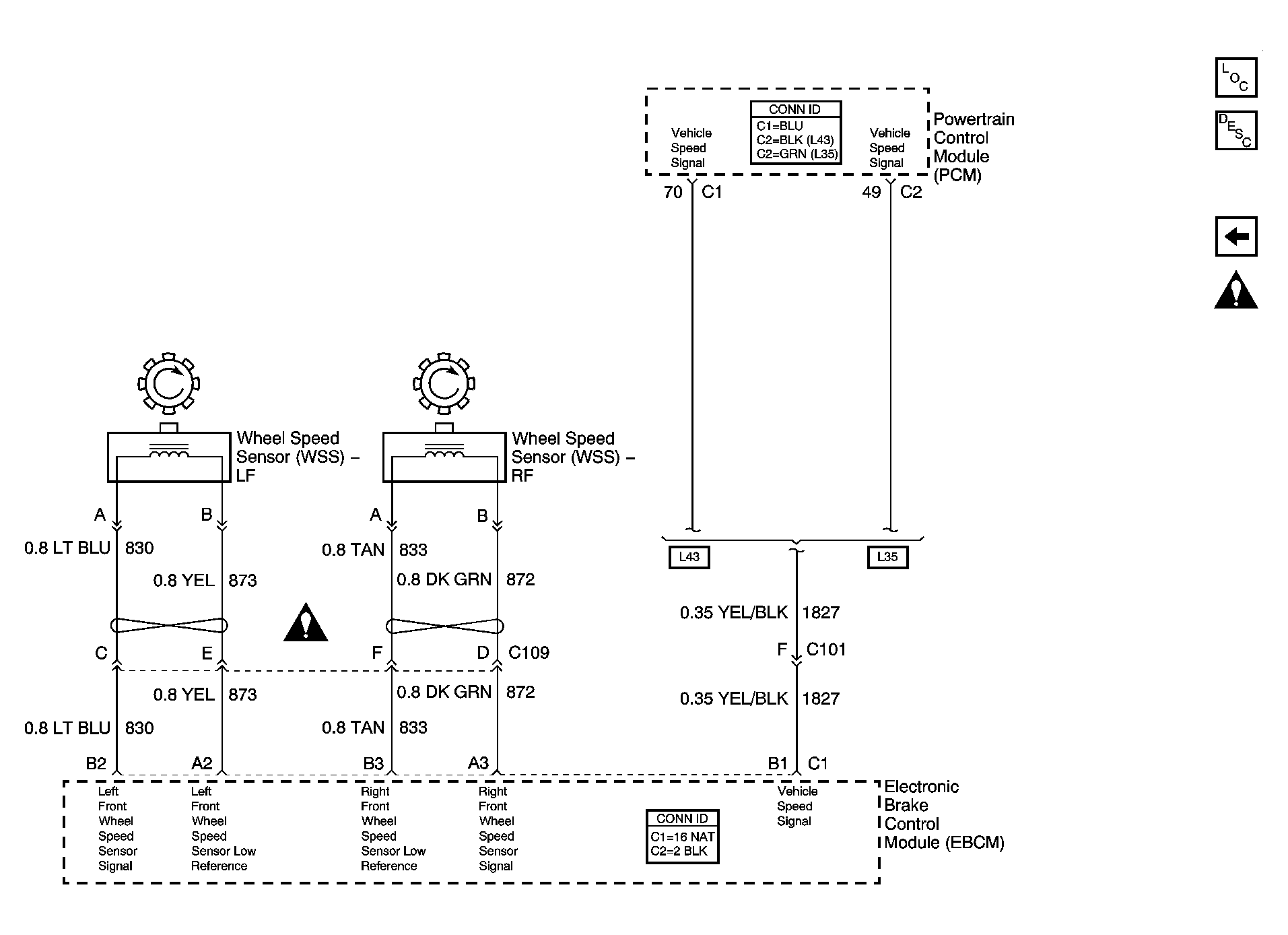

Fig 3: Speed Sensor Signals Schematic

GM884543

Courtesy of GENERAL MOTORS CORP.
