Installation Procedure

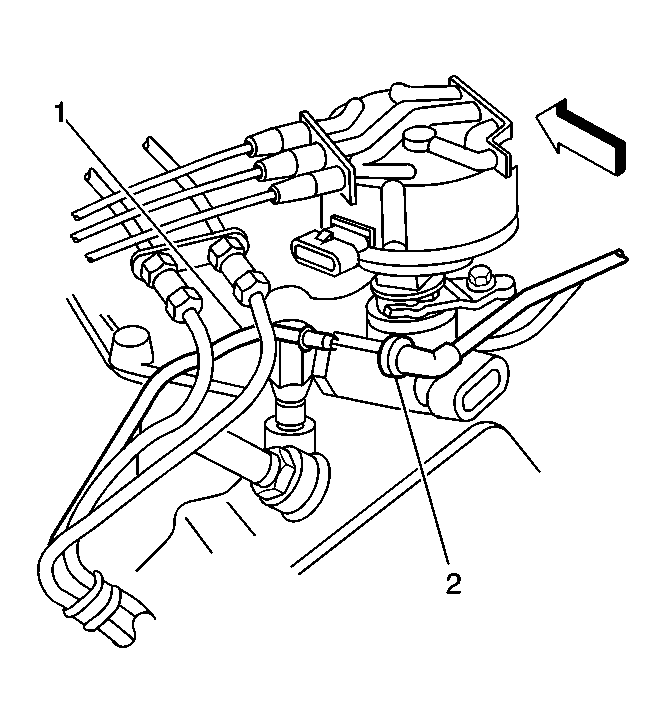

    Fig 1: Locating EVAP Pipe At EVAP Front Chassis Pipe
    GM588977Courtesy of GENERAL MOTORS CORP.
  1. Connect the EVAP pipe (2) to the EVAP front chassis pipe (1).
    2. Fig 2: Evaporative Emission (EVAP) Purge Pipe
    GM309184Courtesy of GENERAL MOTORS CORP.
  2. Connect the EVAP pipe to the EVAP canister purge valve.
