Fuel Hose/Pipes Routing Diagram

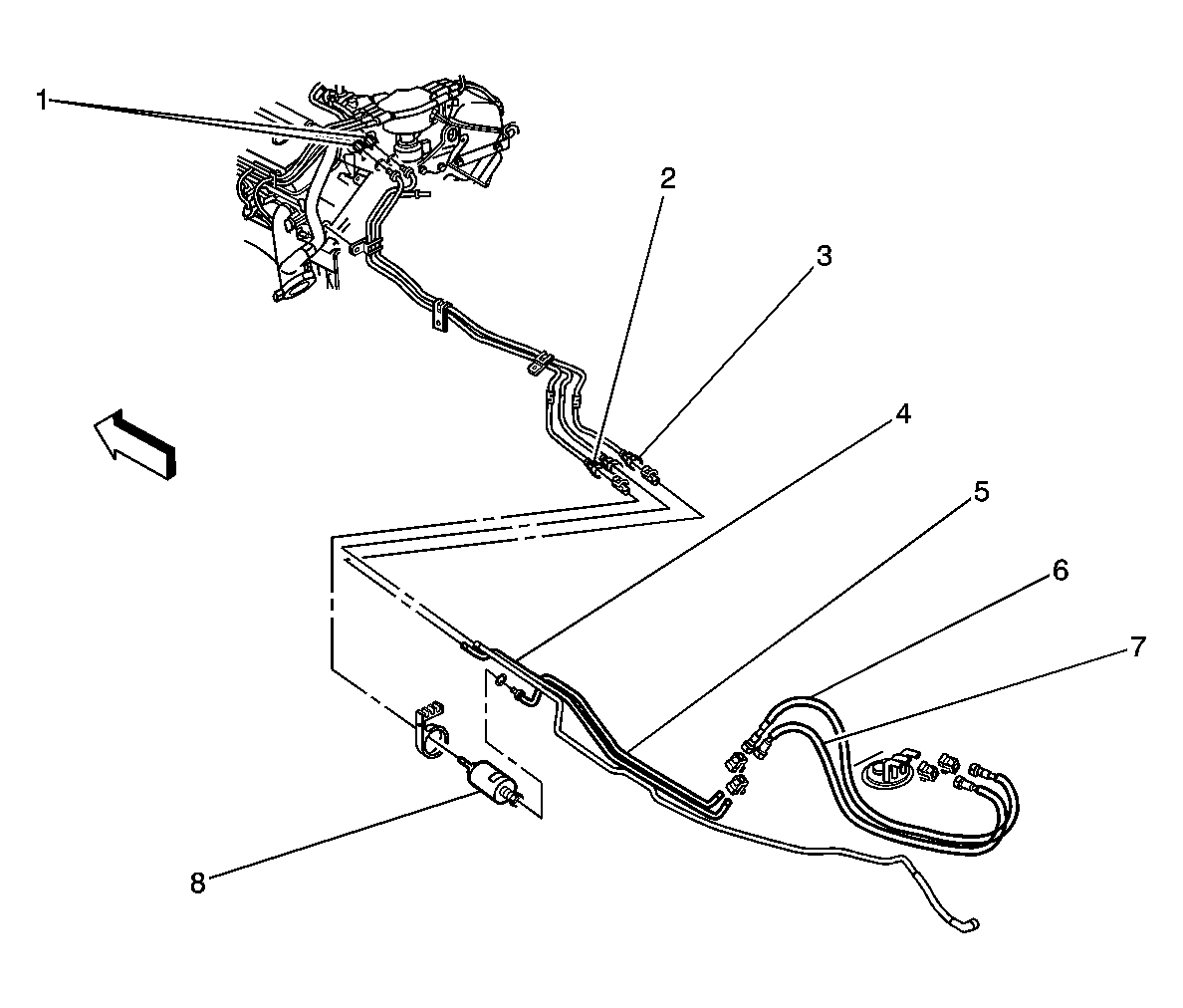

Fig 1: Fuel Hose/Pipes Routing Diagram - 2 Door Utility
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Engine Compartment Fuel Pipes
2
Fuel Feed Front Pipe
3
Fuel Return Front Pipe
4
Fuel Return Rear Pipe
5
Fuel Feed Rear Pipe
6
Fuel Feed Rear Pipe
7
Fuel Return Rear Pipe
8
Fuel Filter
