Air Bag Control Module

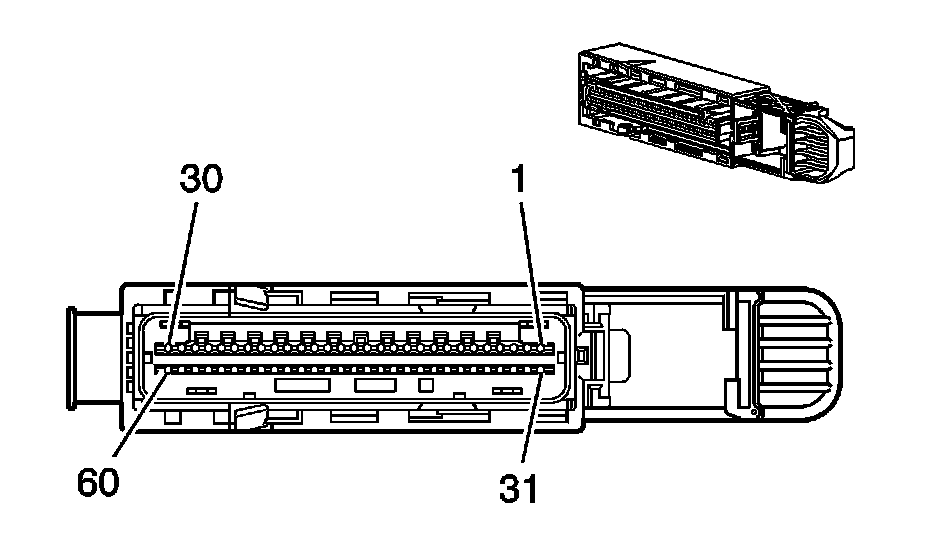

SIR Connector End Views

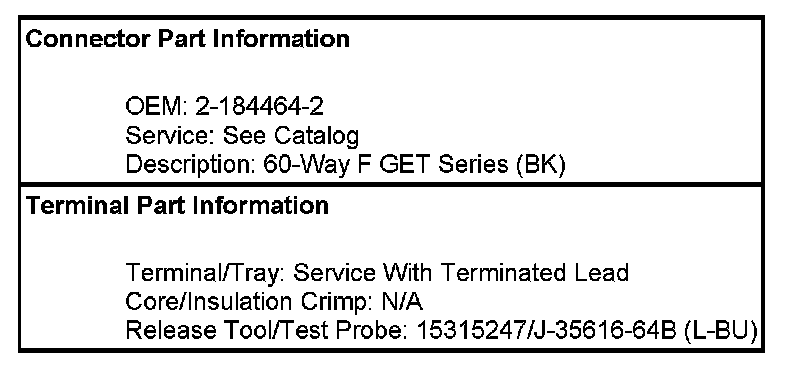

Inflatable Restraint Sensing and Diagnostic Module (SDM) (WDA)

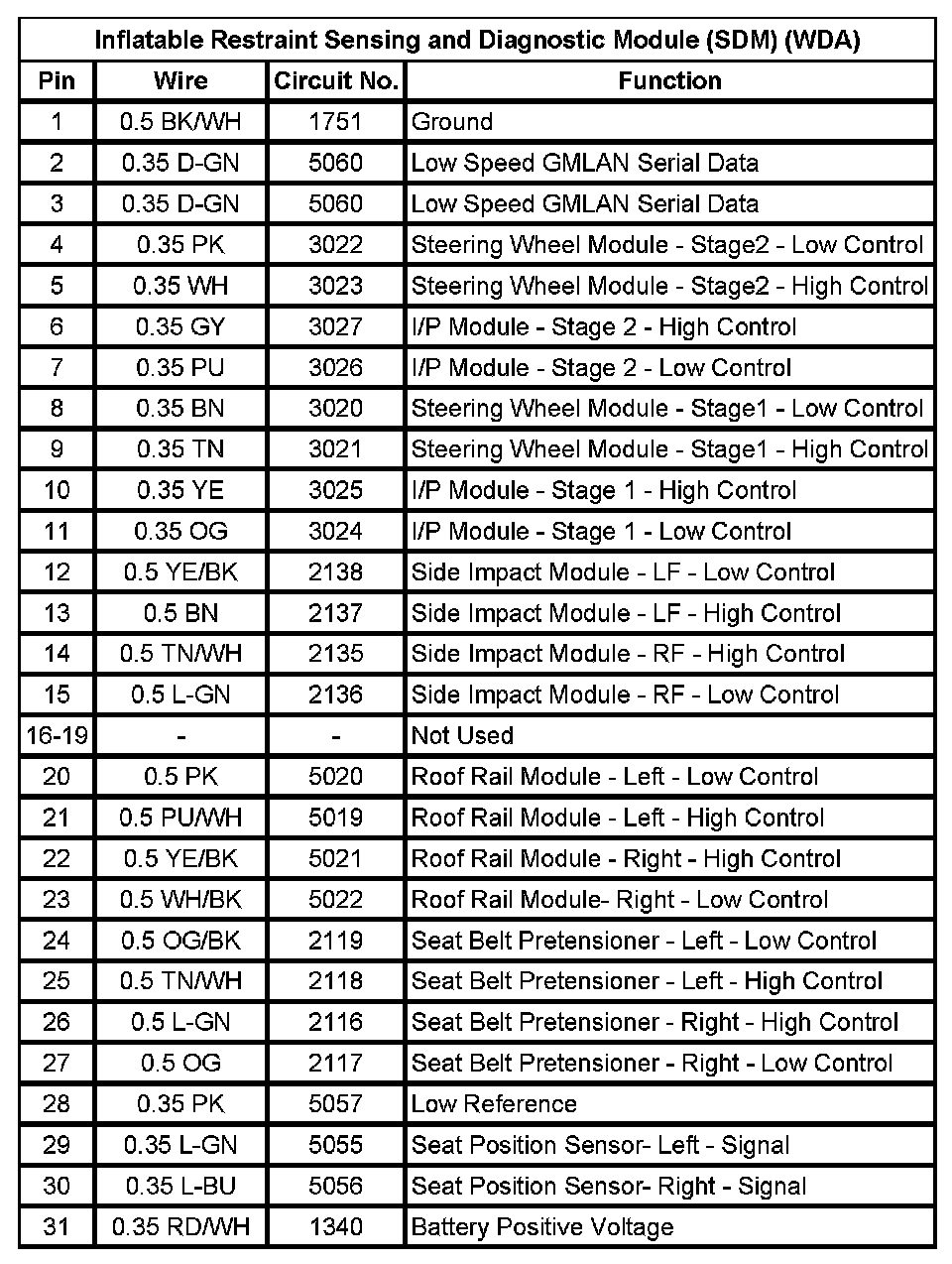

Inflatable Restraint Sensing And Diagnostic Module (SDM) (WDA) (Pin 1 To 31):

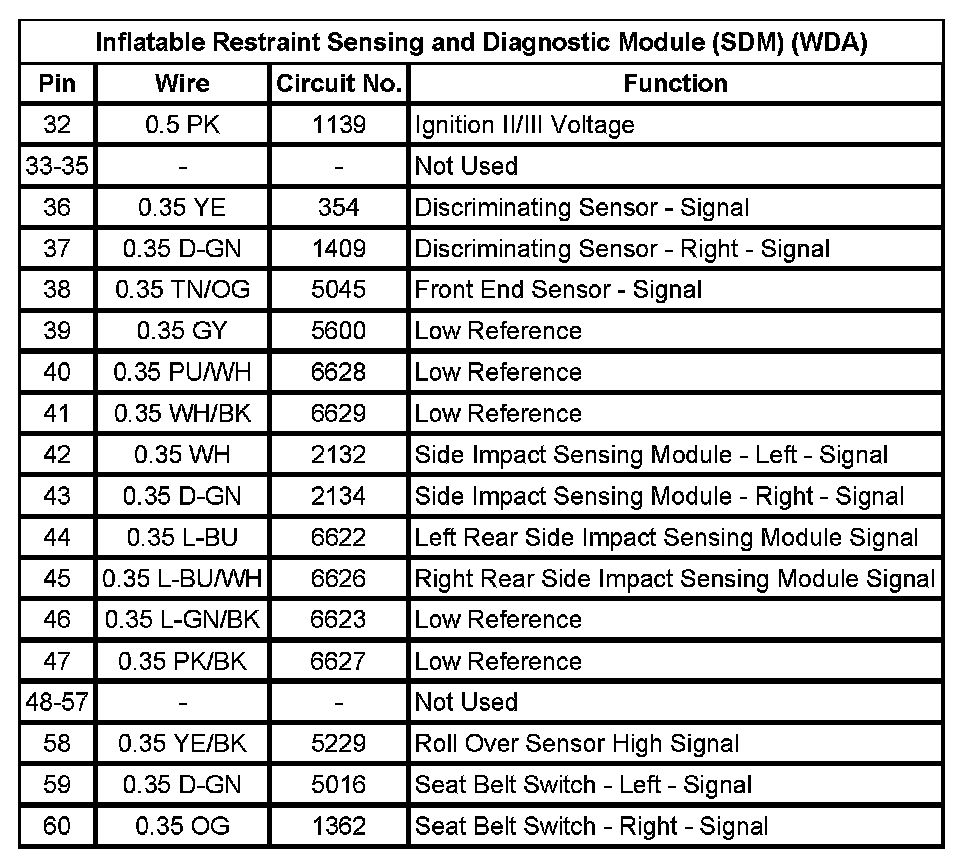

Inflatable Restraint Sensing And Diagnostic Module (SDM) (WDA) (Pin 32 To 60):

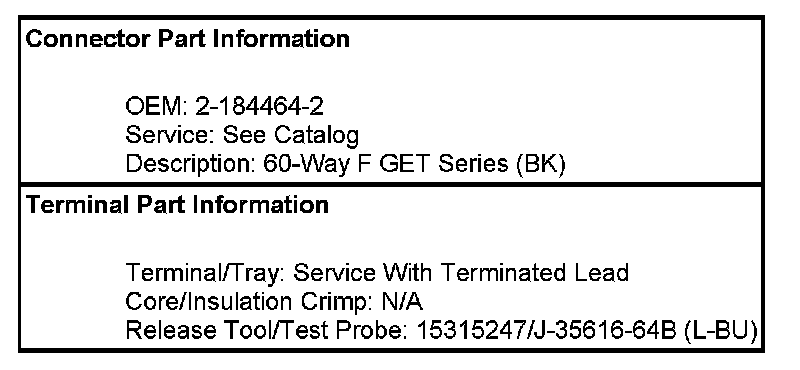

Inflatable Restraint Sensing and Diagnostic Module (SDM) (Z88)

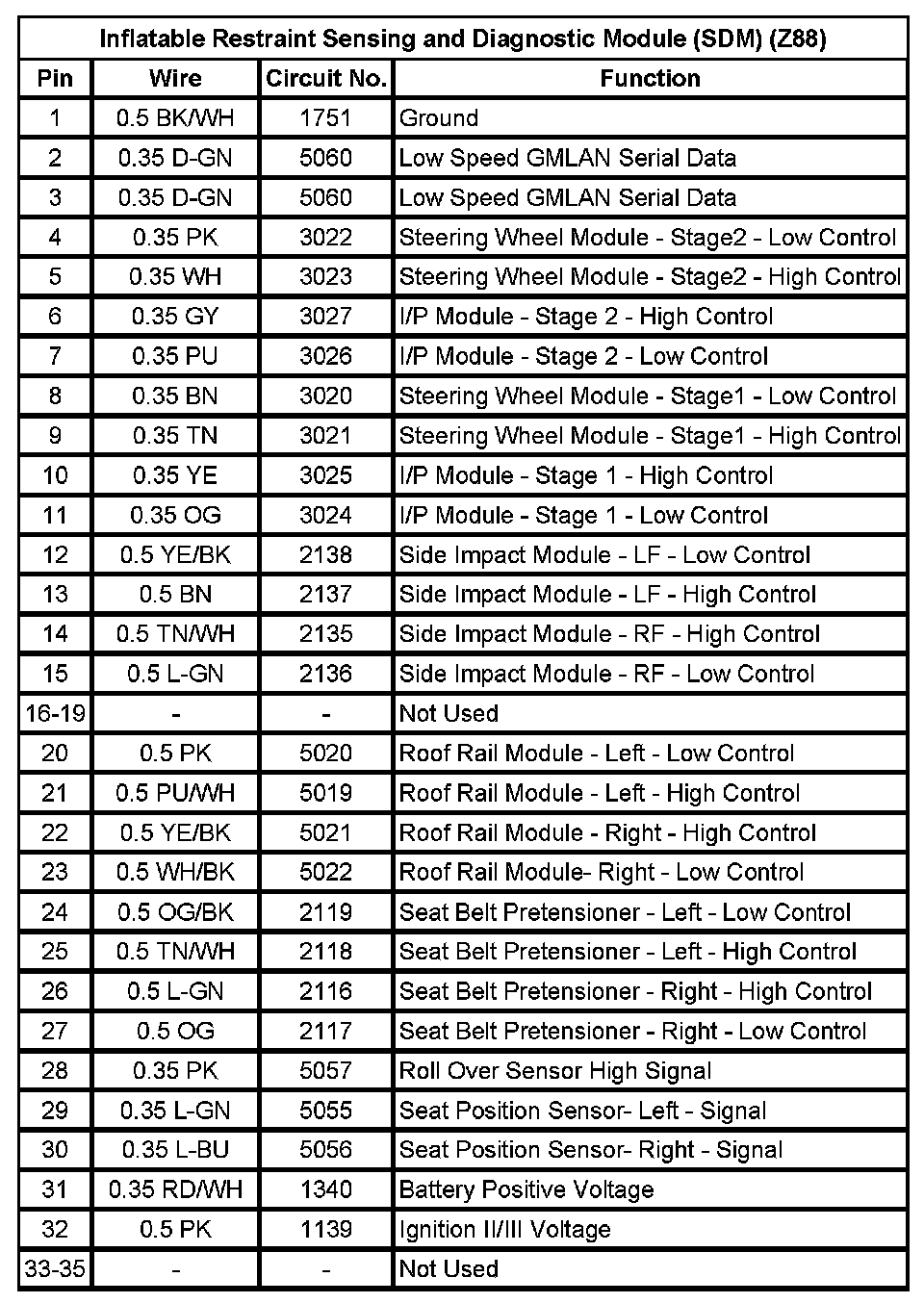

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Z88) (Pin 1 To 35):

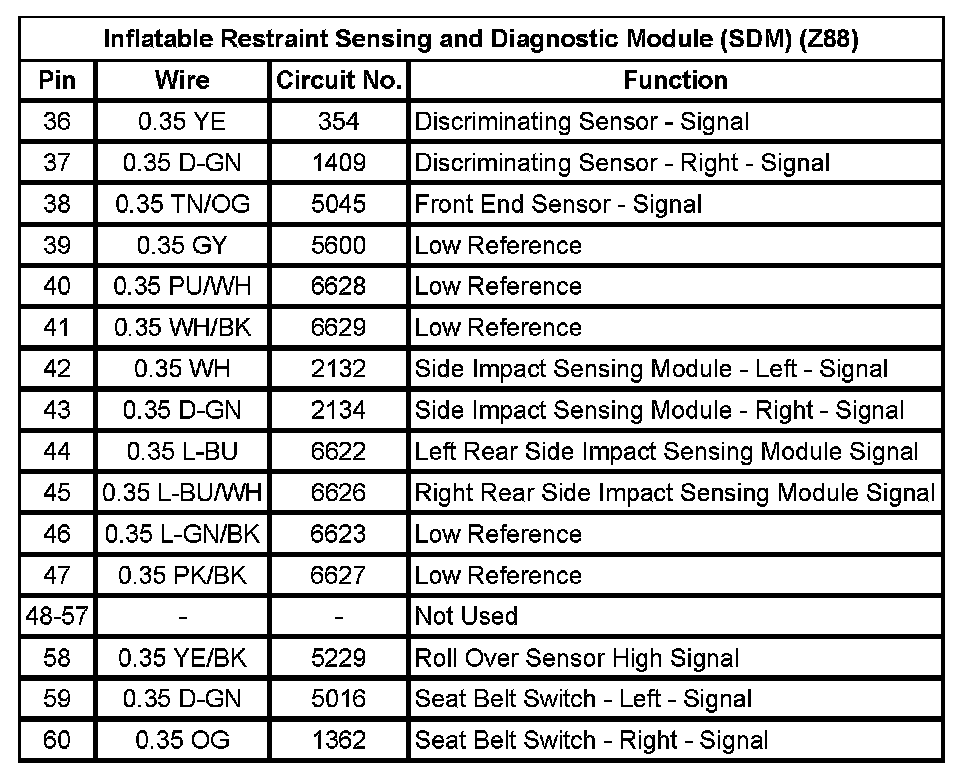

Inflatable Restraint Sensing And Diagnostic Module (SDM) (Z88) (Pin 36 To 60):
