Body Control Module (BCM) X4 (With RPO Code Z88)

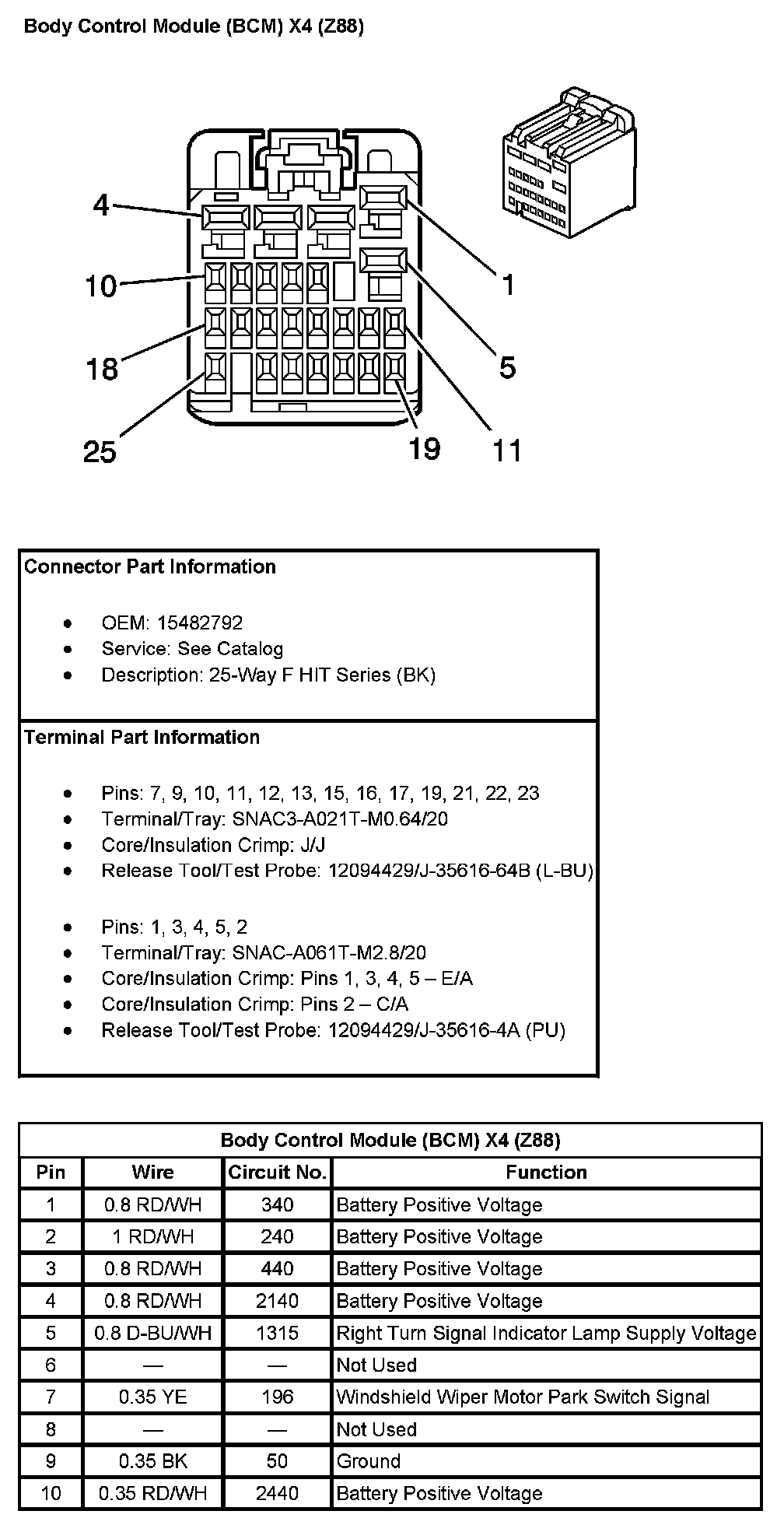

Body Control Module (BCM) X4 (With RPO Code Z88) Pin 1 To 10:

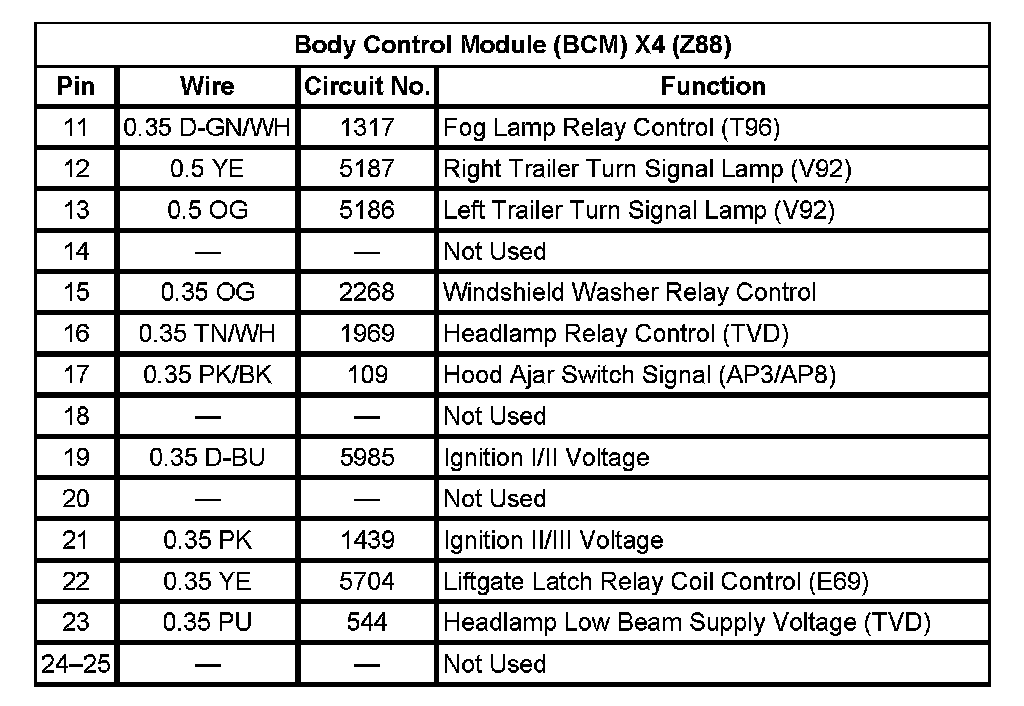

Body Control Module (BCM) X4 (With RPO Code Z88) Pin 11 To 25:
