HVAC - Automatic



HVAC Connector End Views

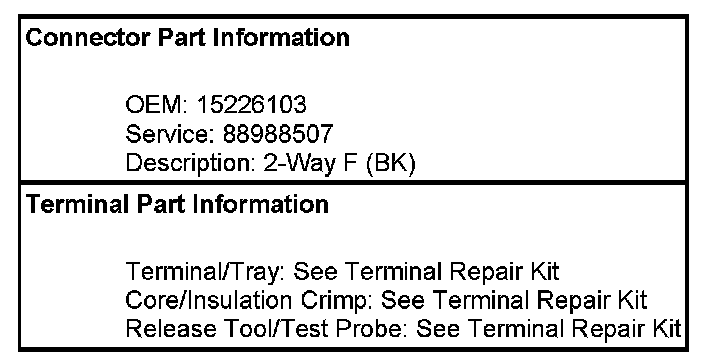

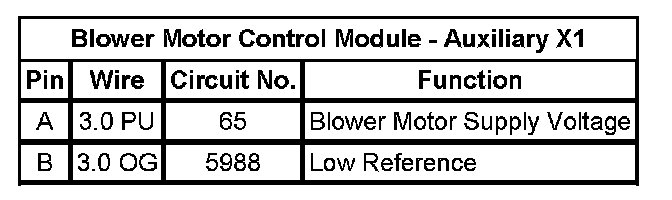

Blower Motor Control Module - Auxiliary X1

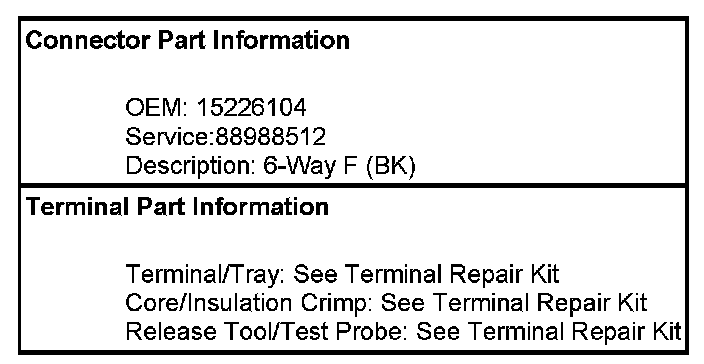

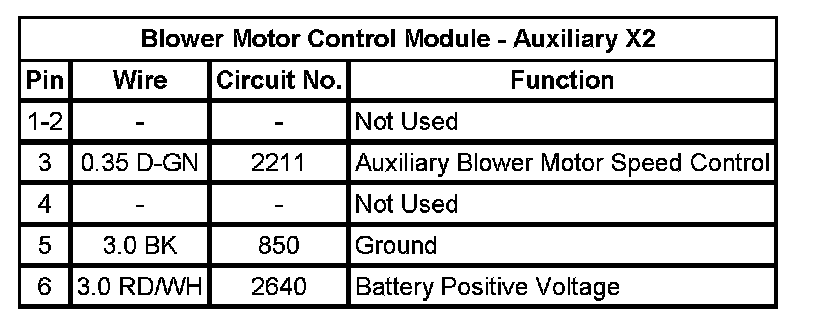

Blower Motor Control Module - Auxiliary X2
