Power Trunk / Liftgate Control Module

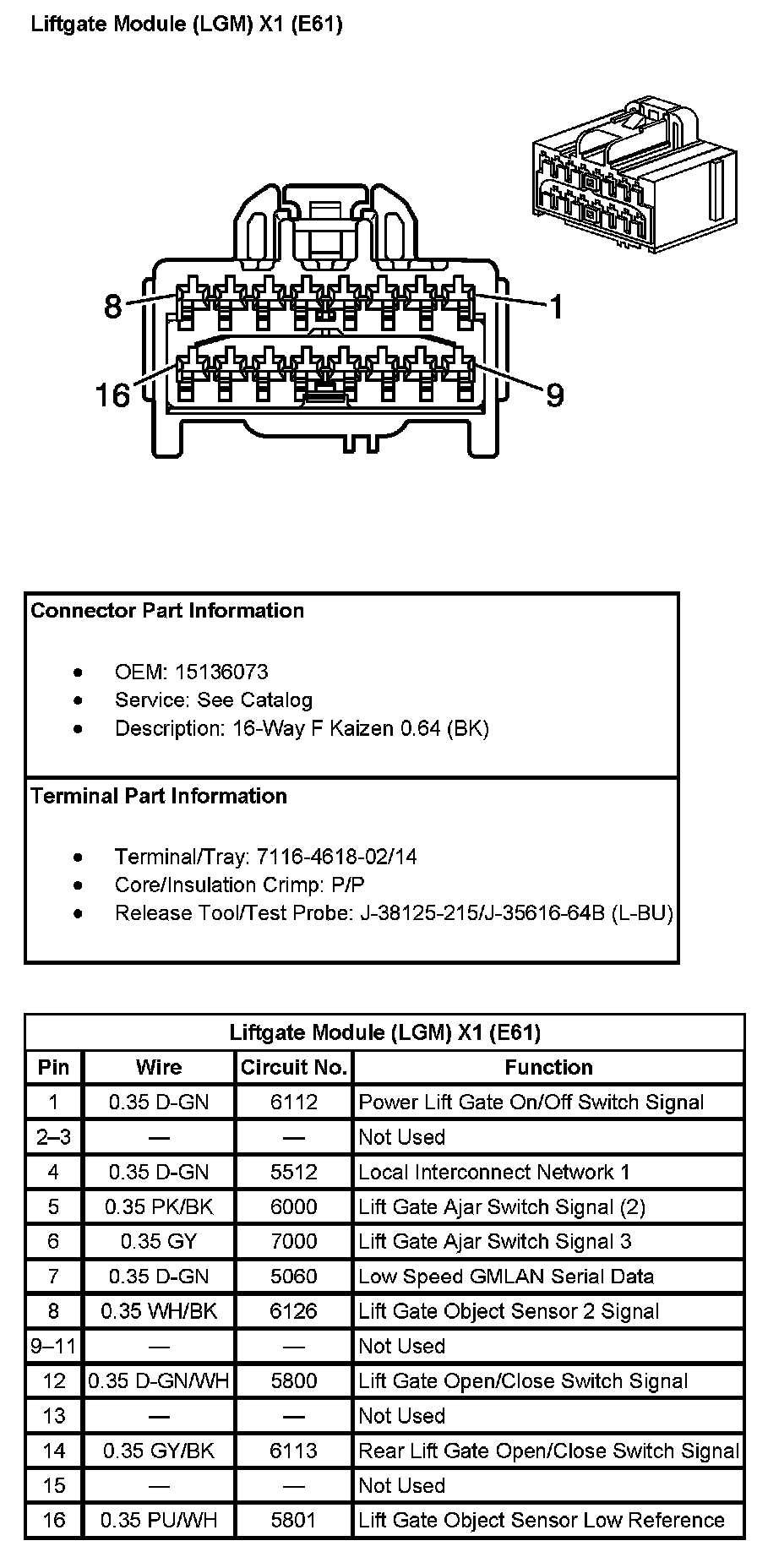

Liftgate Module (LGM) X1 (With RPO Code E61) Pin 1 To 16:

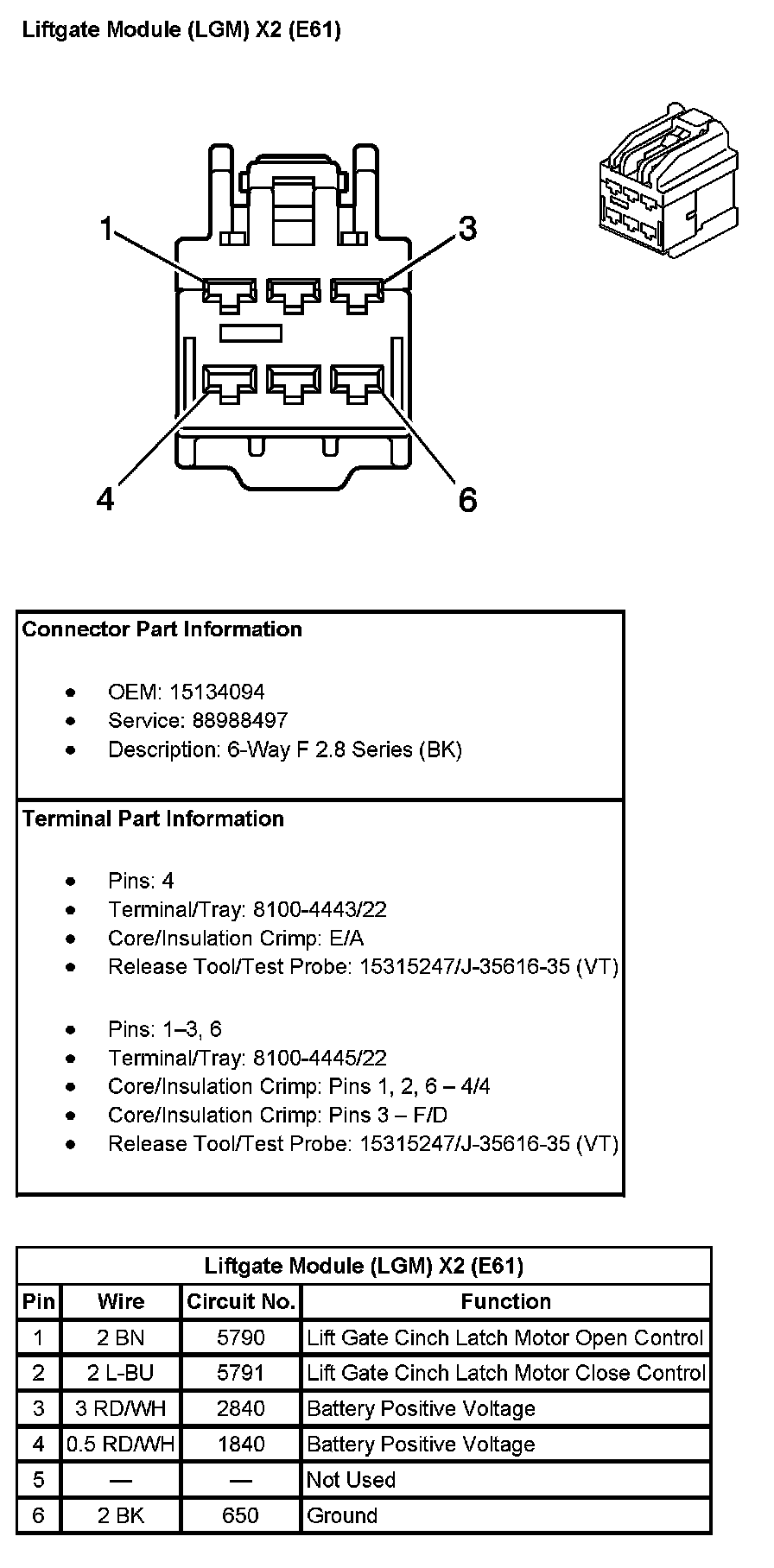

Liftgate Module (LGM) X2 (With RPO Code E61) Pin 1 To 6:

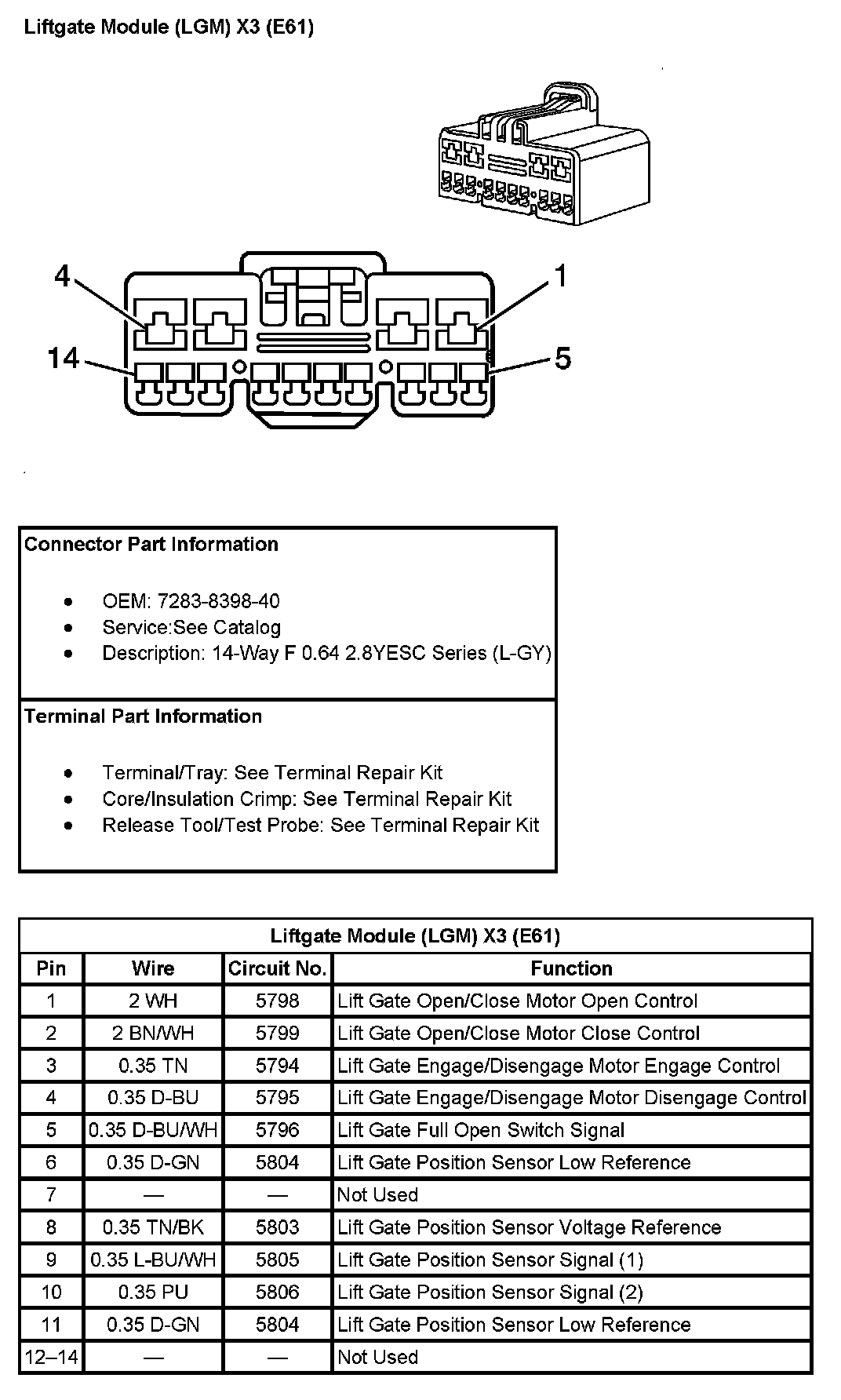

Liftgate Module (LGM) X2 (With RPO Code E61) Pin 1 To 14:
