Home >> GMC >> 2007 >> Acadia AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Control Module - Driver X2

April 5, 2026: LEMON Manuals is launched! Read the announcement.

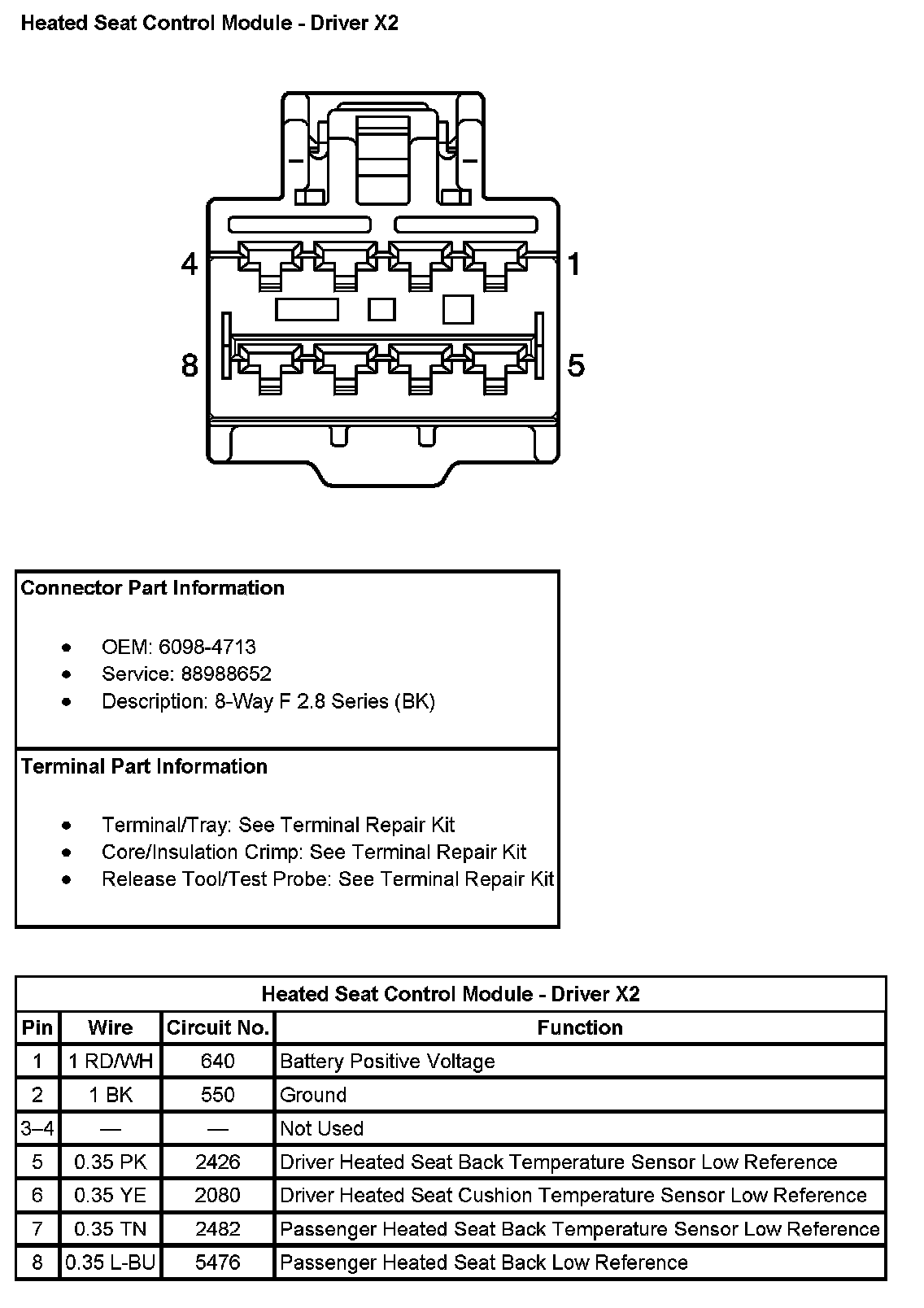

Heated Seat Control Module - Driver X2

Heated Seat Control Module - Driver X2:
