I/P Bottom Fuse Block

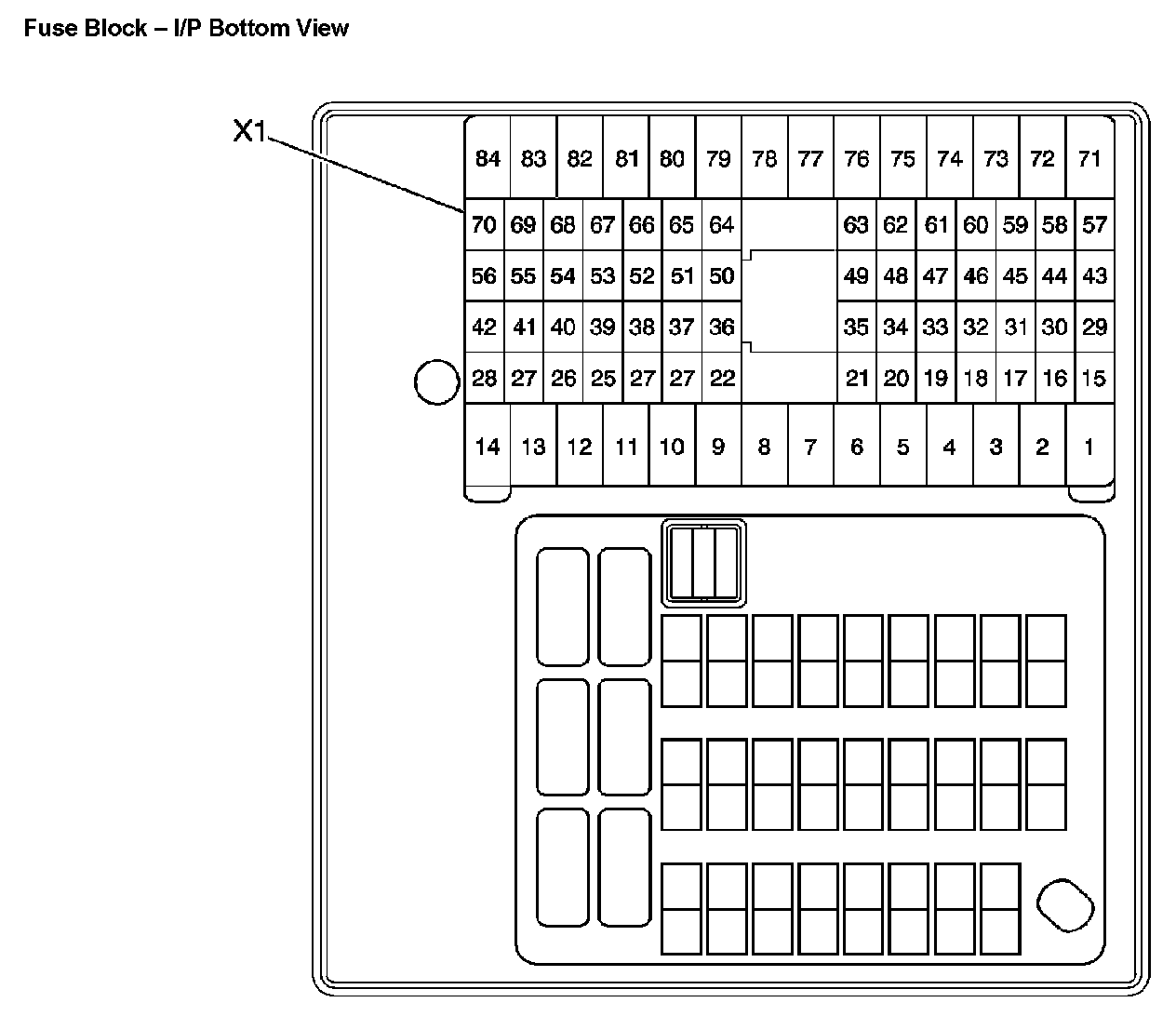

Fuse Block - I/P Bottom View:

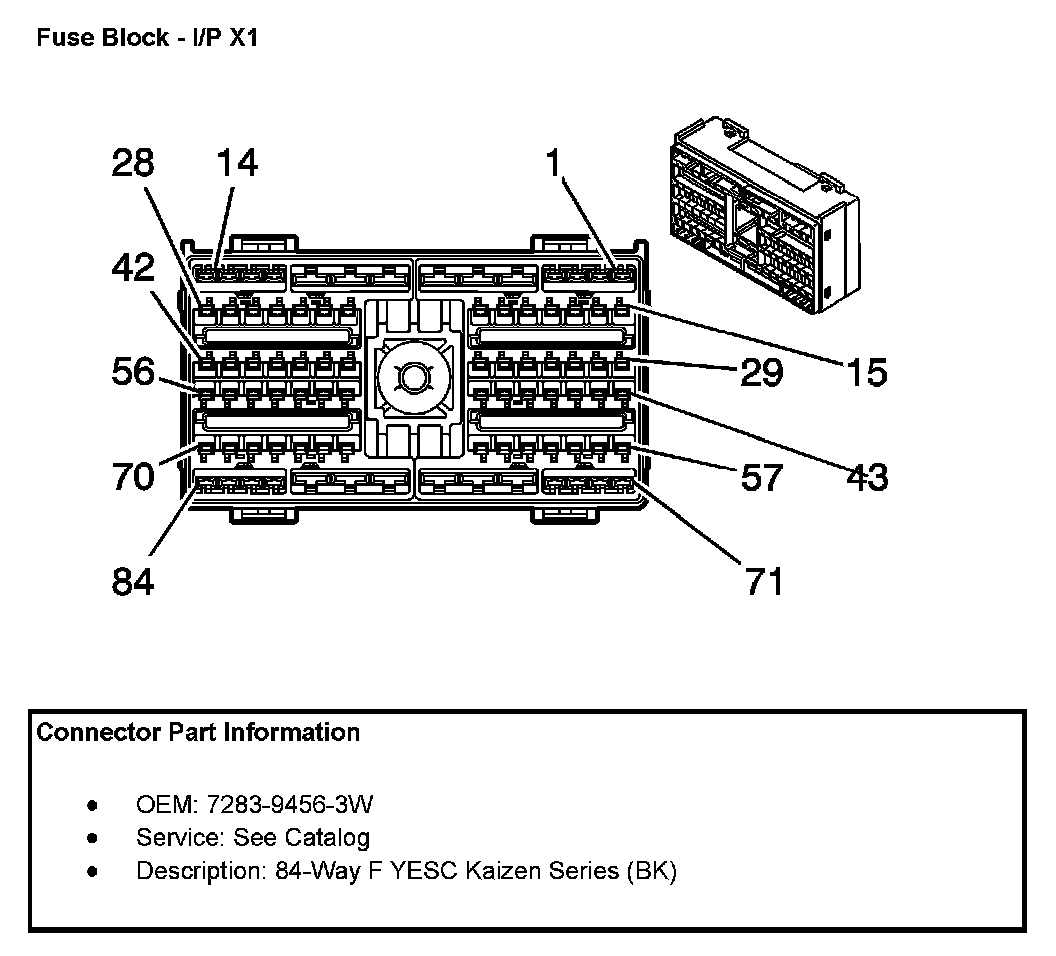

Fuse Block - I/P X1:

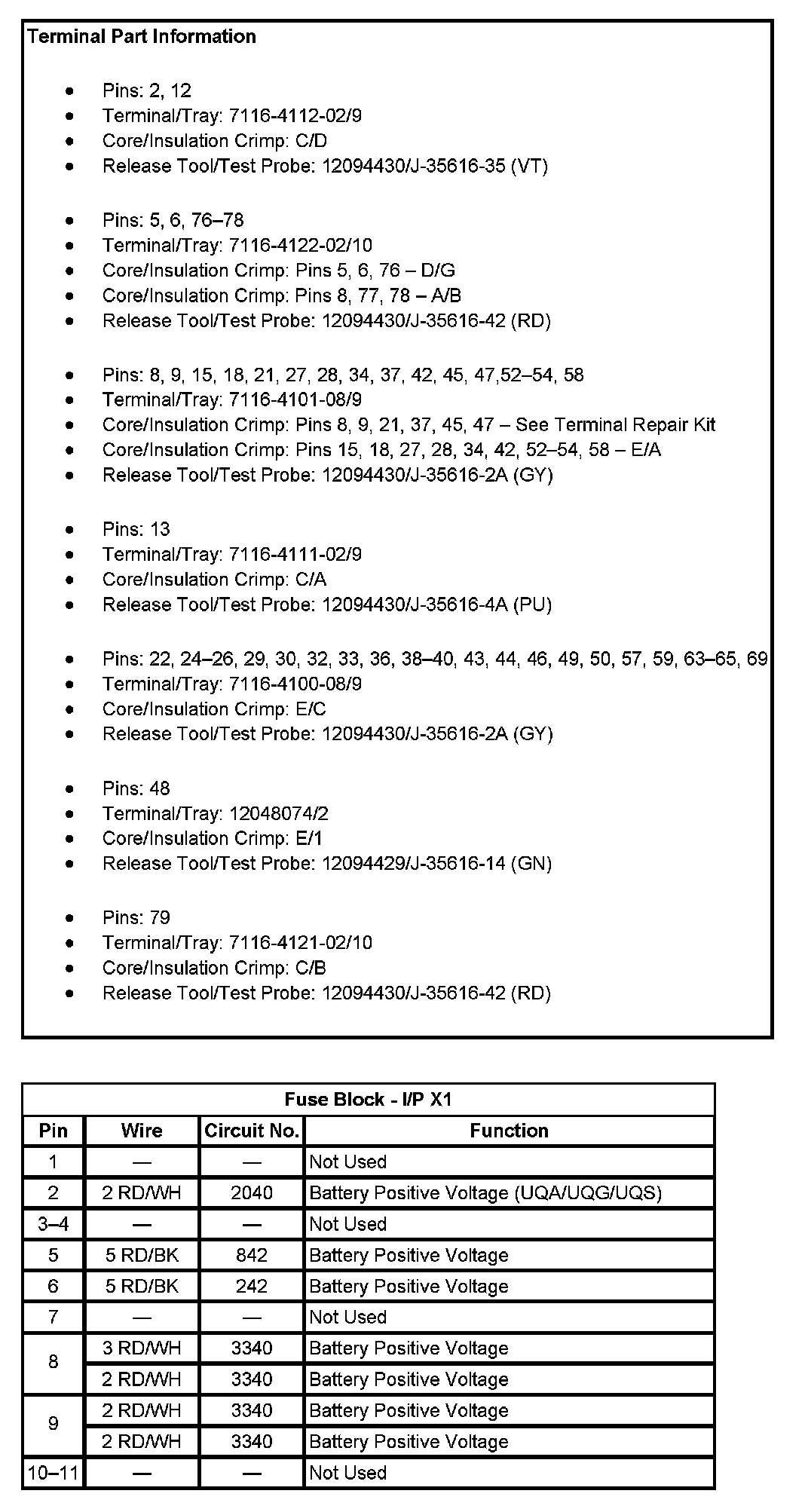

Fuse Block - I/P X1 (Pin 1 To 11):

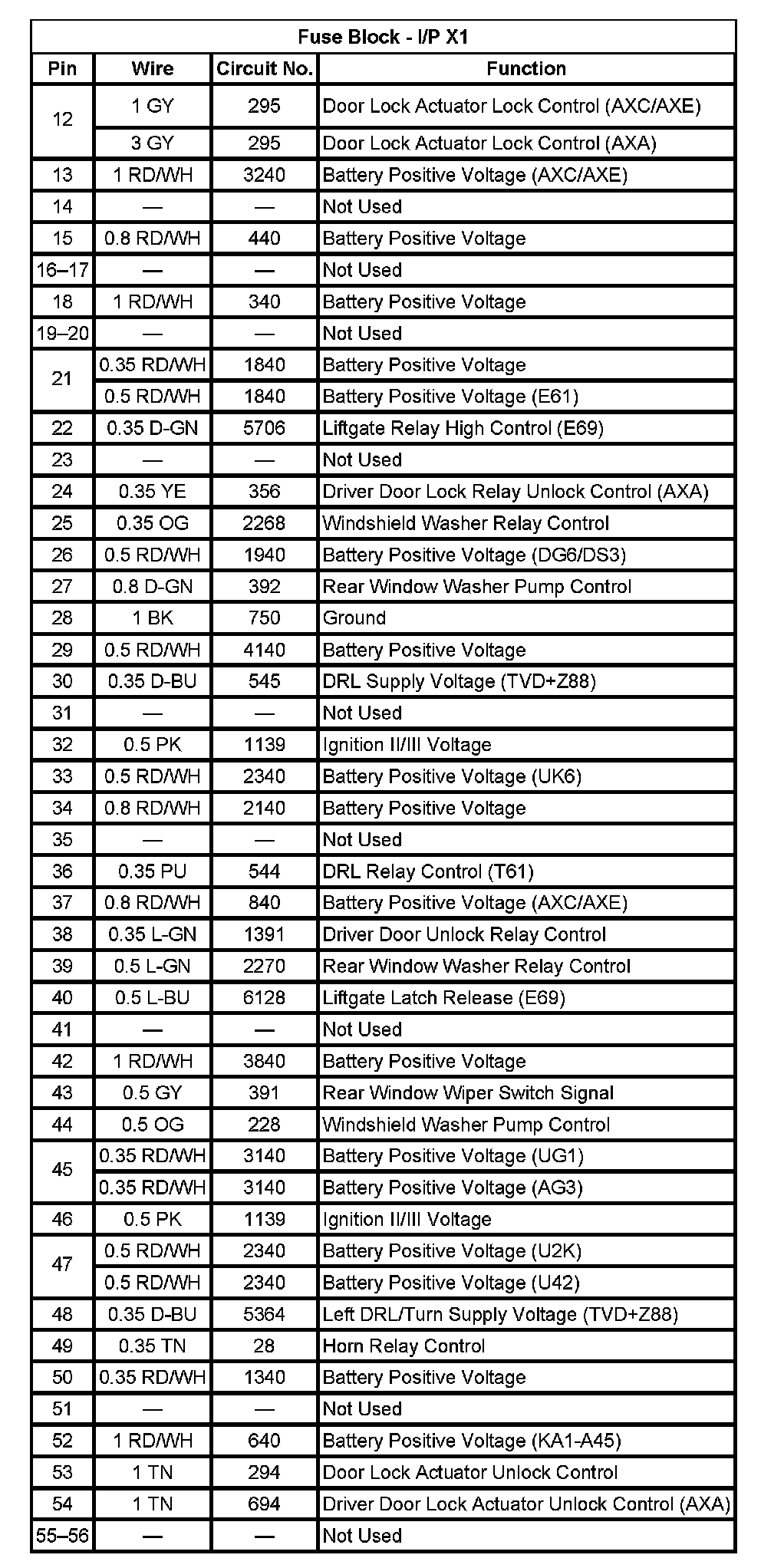

Fuse Block - I/P X1 (Pin 12 To 56):

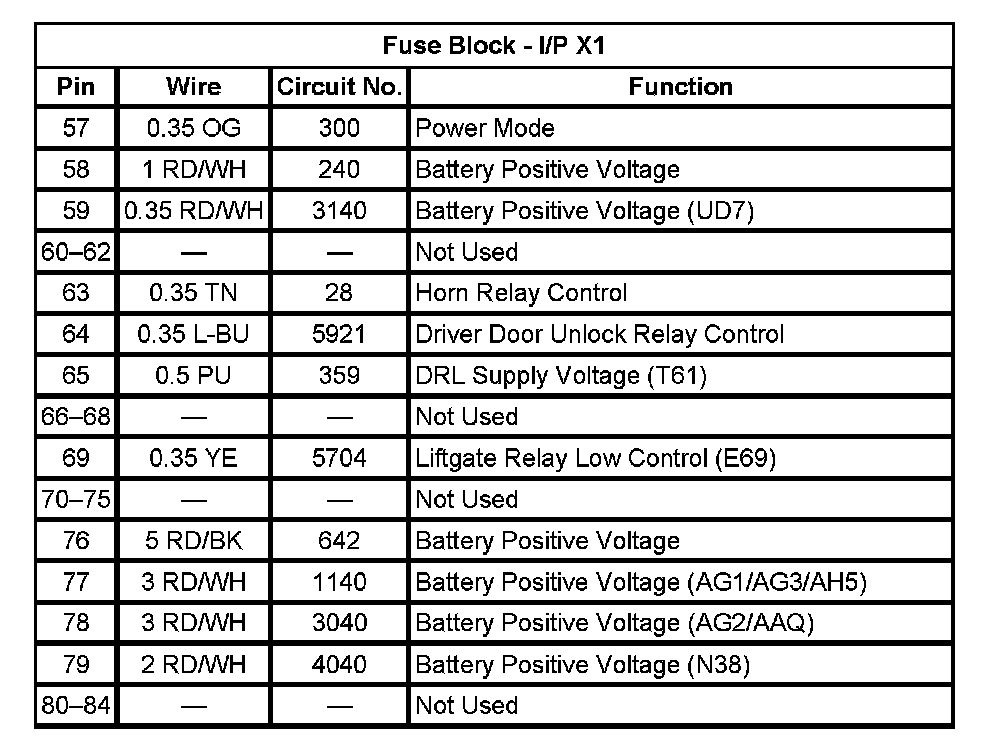

Fuse Block - I/P X1 (Pin 57 To 84):
