I/P Fuse Block

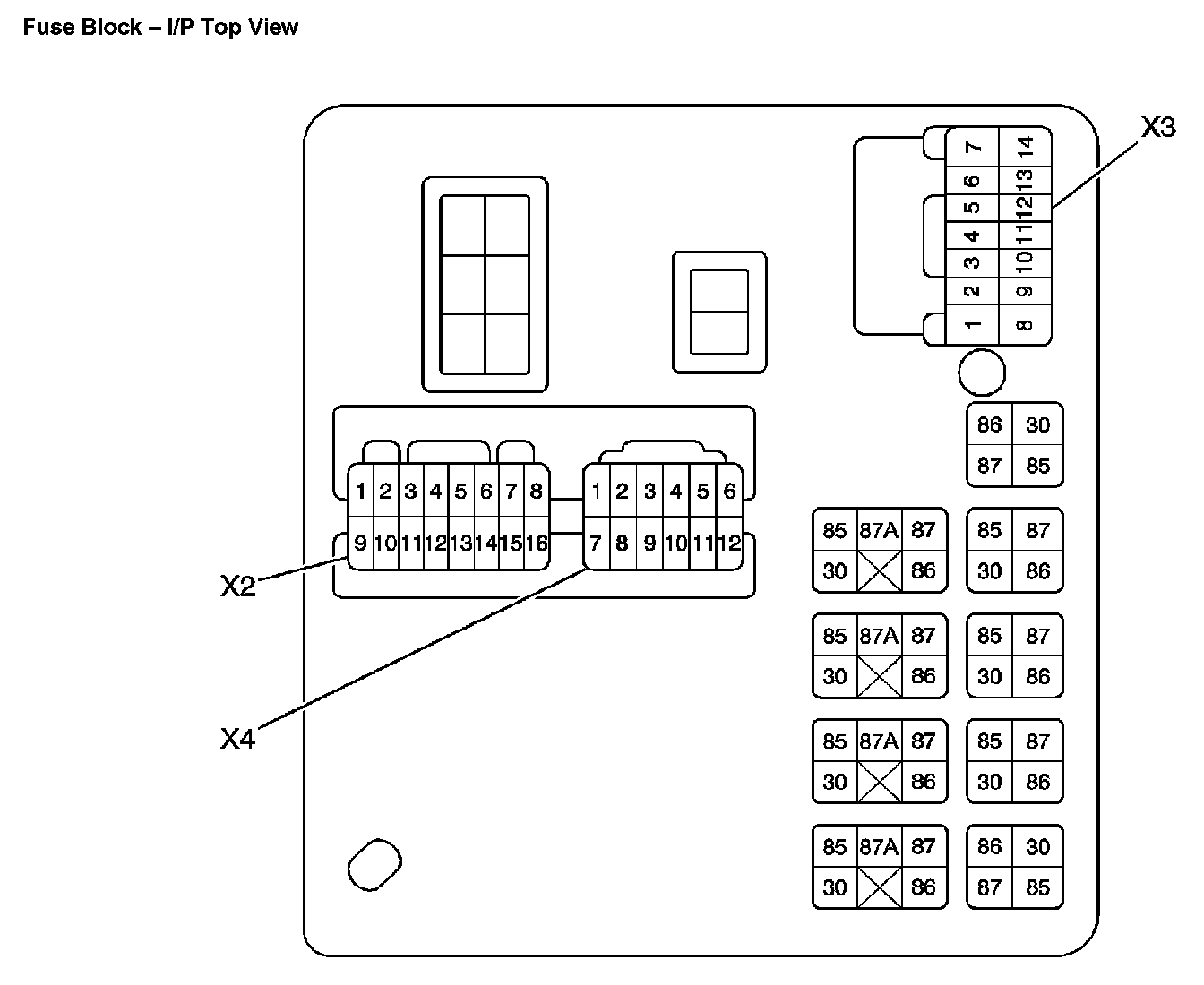

Fuse Block - I/P Top View:

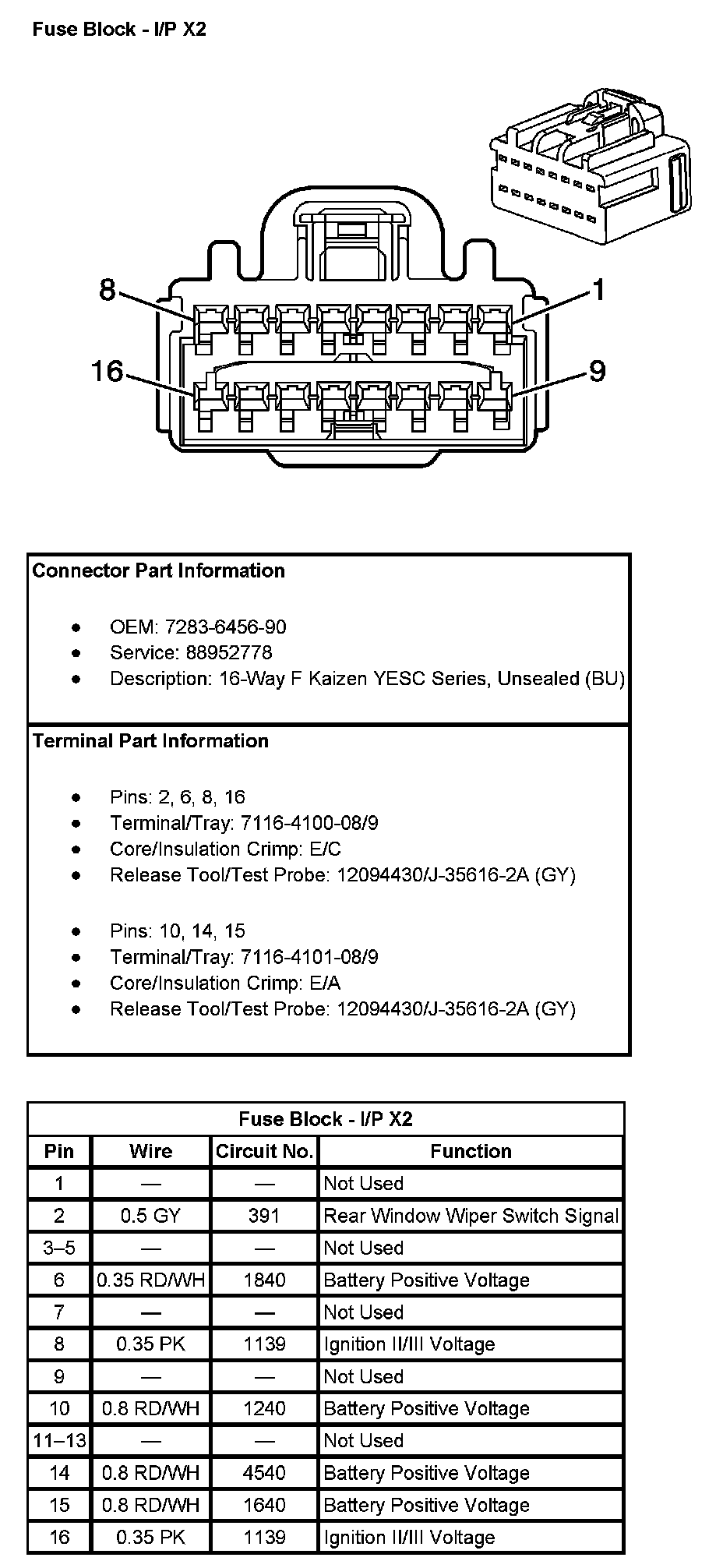

Fuse Block - I/P X2:

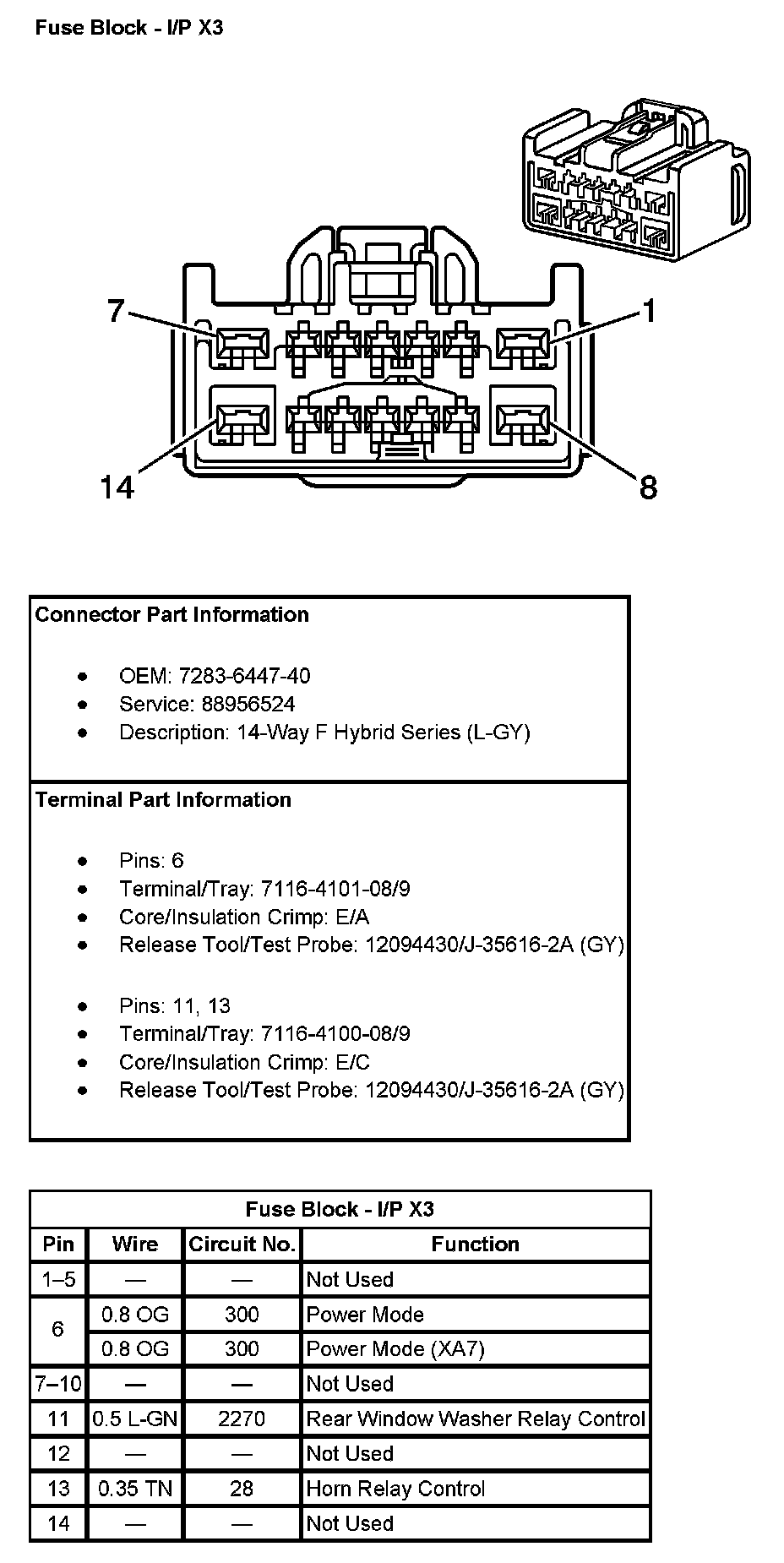

Fuse Block - I/P X3:

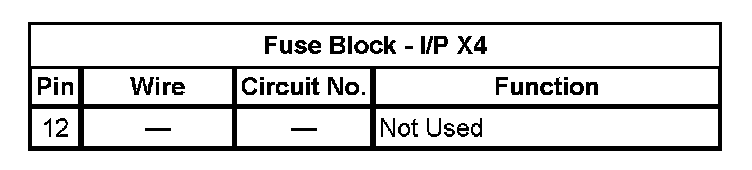

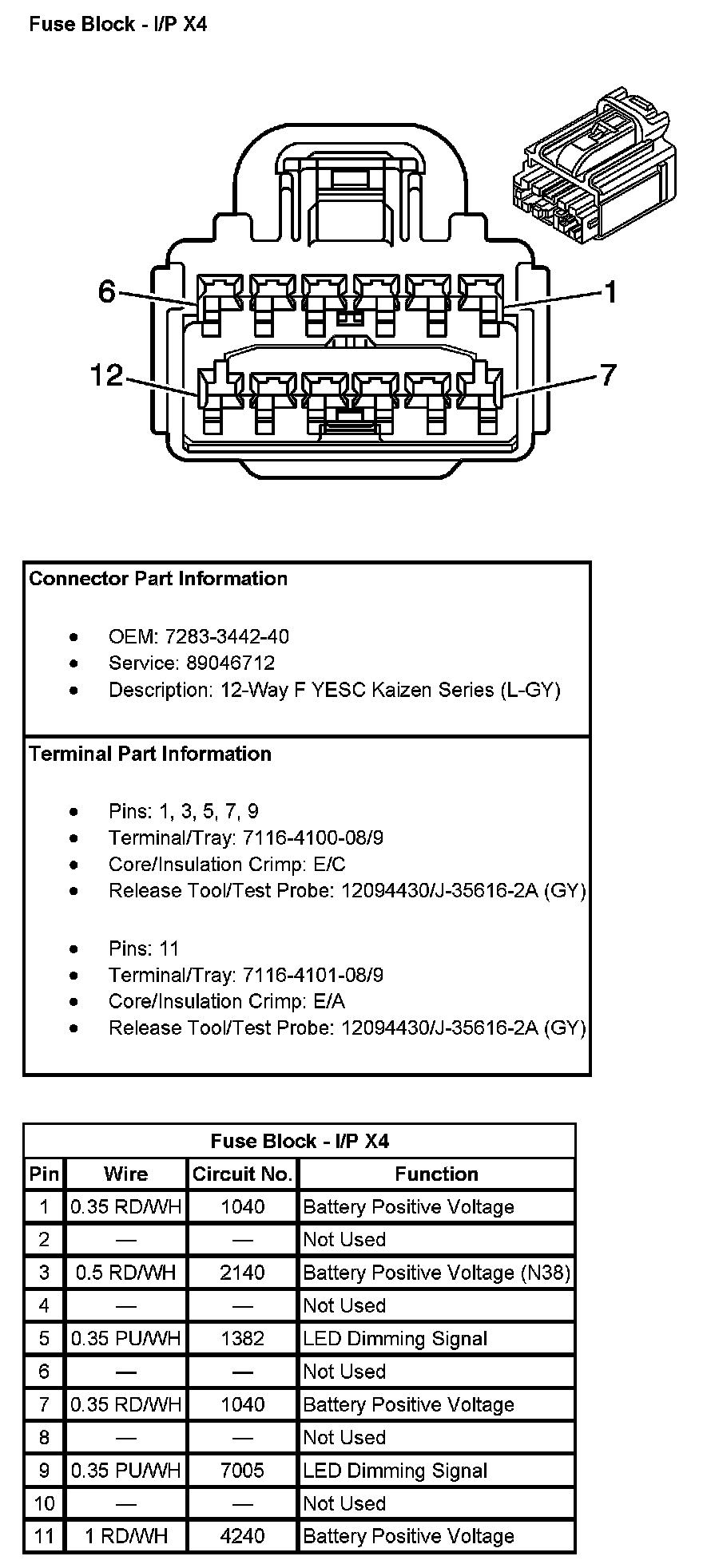

Fuse Block - I/P X4 (Pin 1 To 11):




Fuse Block - I/P X4 (Pin 12):
