Windshield Washer Control Module

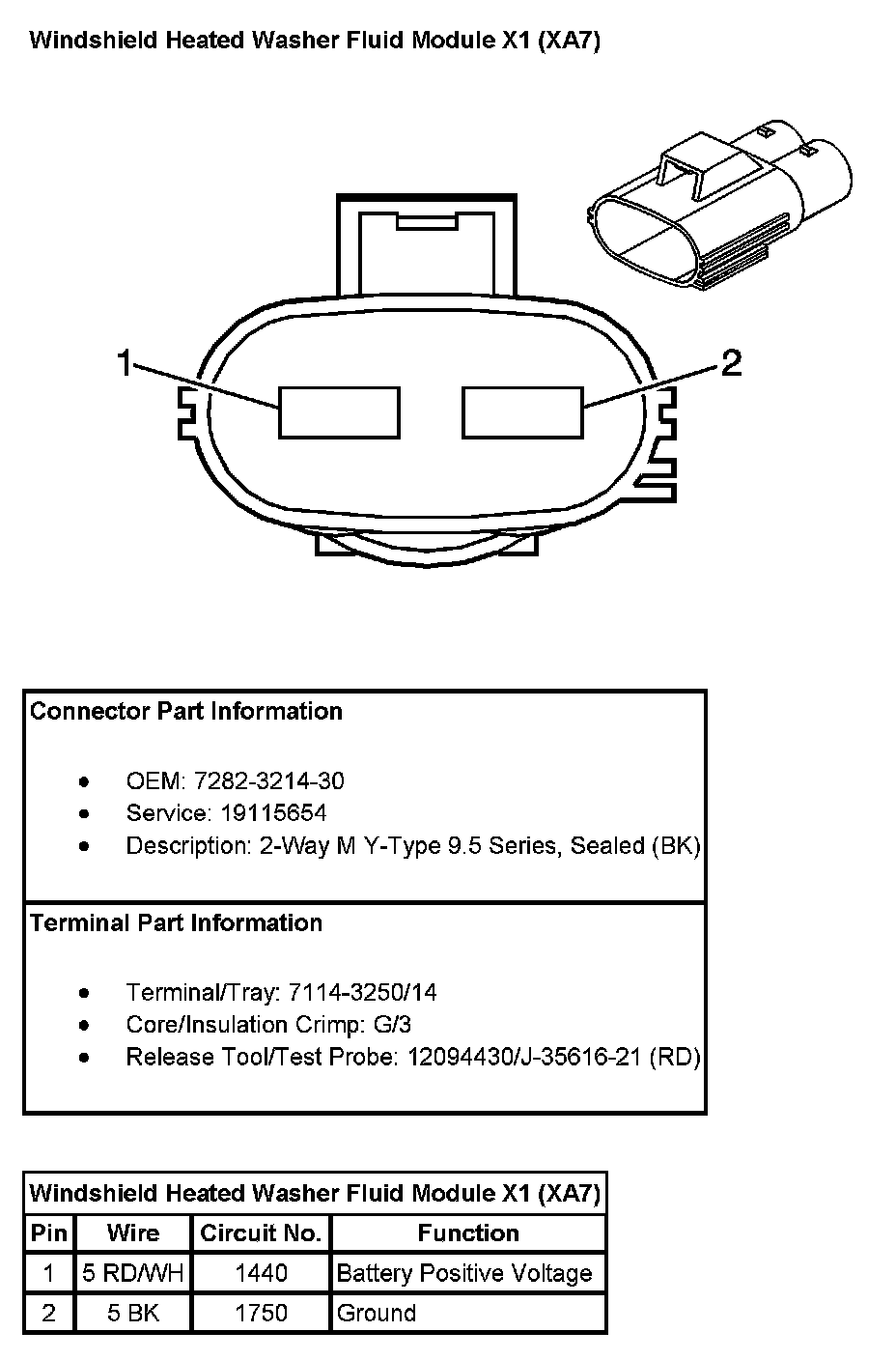

Windshield Heated Washer Fluid Module X1 (With RPO Code XA7):

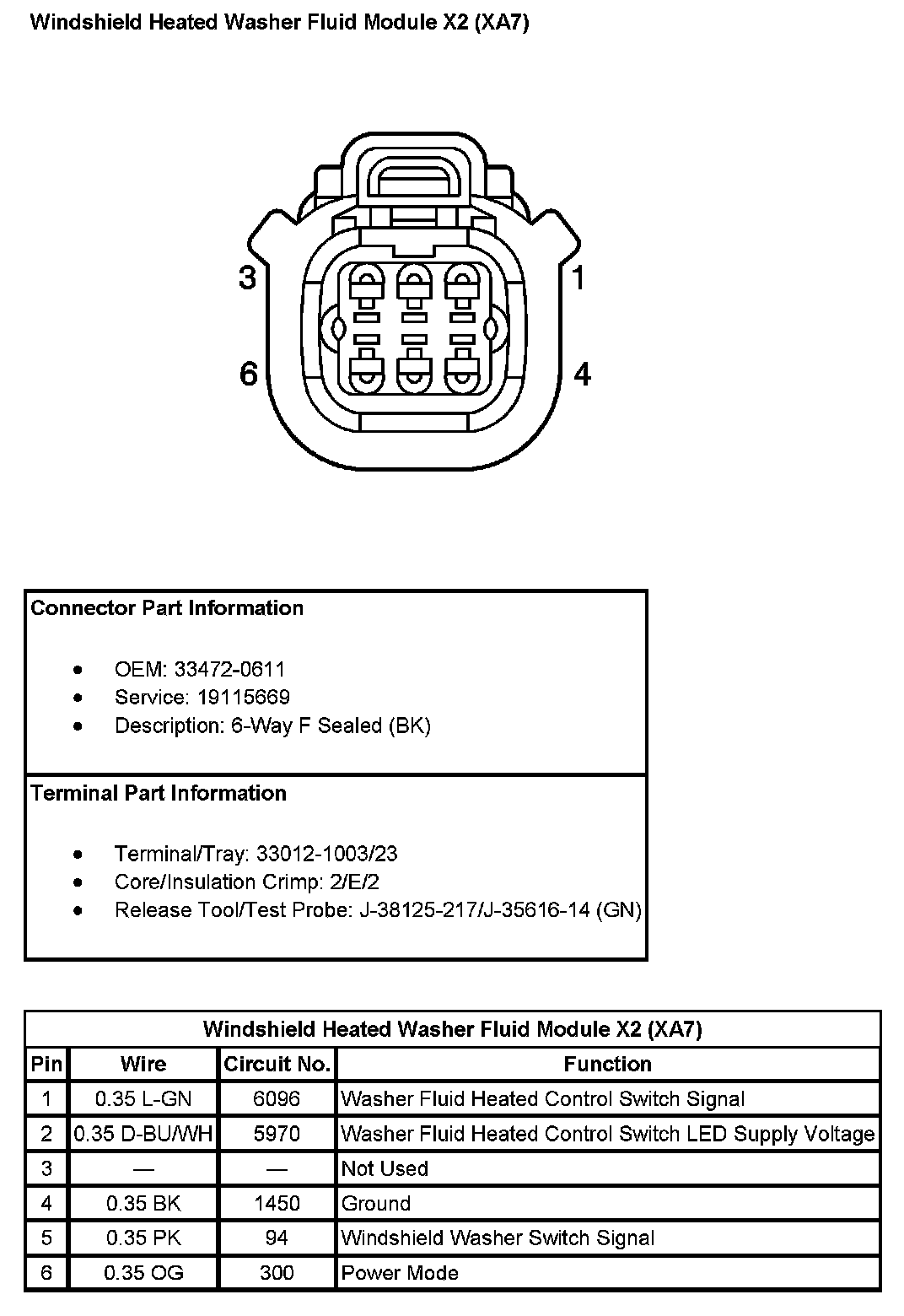

Windshield Heated Washer Fluid Module X2 (With RPO Code XA7):
