Steering Gear

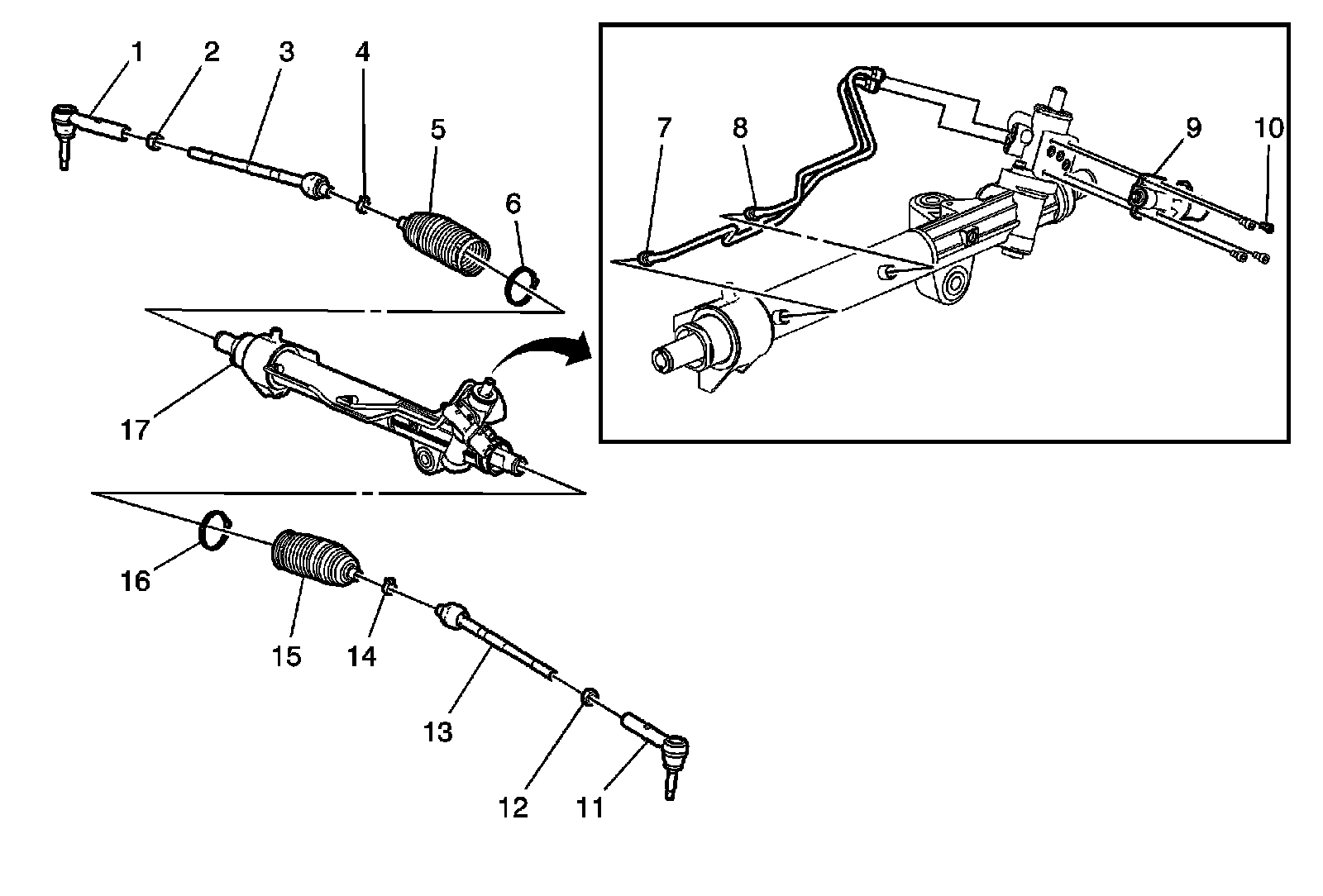

Power Steering Gear Disassembled View

Disassembled View

1 - Steering Linkage Outer Tie Rod
2 - Steering Linkage Inner Tie Rod Nut
3 - Steering Linkage Inner Tie Rod
4 - Steering Gear Boot Clamp
5 - Steering Gear Boot
6 - Steering Gear Boot Clamp
7 - Steering Gear Pipe
8 - Steering Gear Pipe
9 - Steering Gear Valve Solenoid
10 - Steering Gear Valve Solenoid Bolt
11 - Steering Linkage Outer Tie Rod
12 - Steering Linkage Inner Tie Rod Nut
13 - Steering Linkage Inner Tie Rod
14 - Steering Gear Boot Clamp
15 - Steering Gear Boot
16 - Steering Gear Boot Clamp
17 - Steering Gear Assembly
