Rear Camber Adjustment

Rear Camber Adjustment

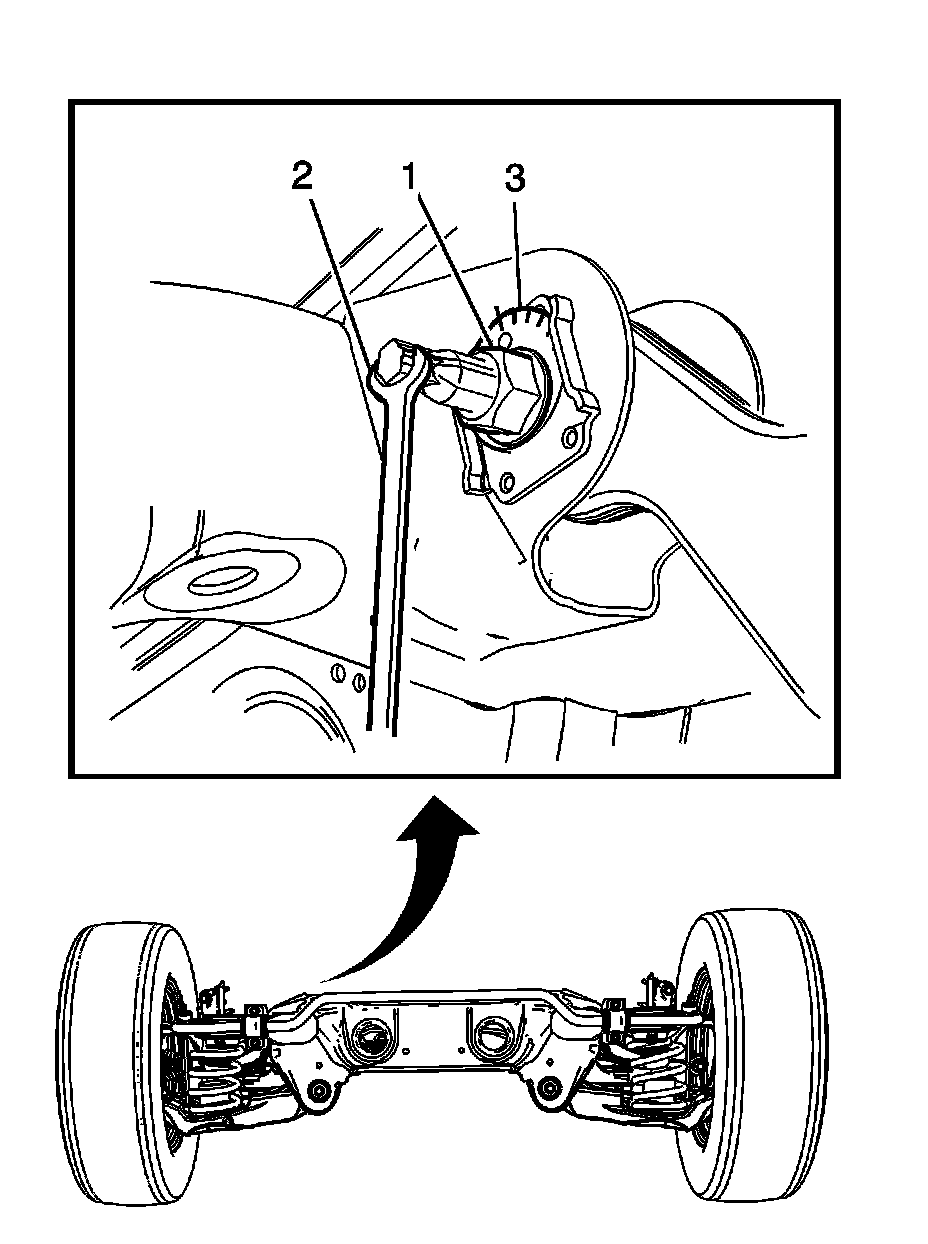

1. Loosen the adjuster cam nut (1).
2. Using a wrench to rotate the adjuster bolt (2), adjust the cam (3) to specifications.

Important: Ensure that the camber settings have not changed after torquing the adjuster nut to specifications. Readjust if necessary.

Notice: Refer to Fastener Notice.

3. Using a wrench to hold the adjuster bolt (2), tighten the adjuster nut (1).

Tighten the nut to 140 N.m (103 lb ft).

4. Check the toe alignment and adjust if required.
5. Test drive the vehicle.
