Engine Oil: Service and Repair

Engine Oil and Oil Filter Replacement

Removal Procedure




1. Raise and support the vehicle.
2. Place a drain pan under the oil pan drain plug.

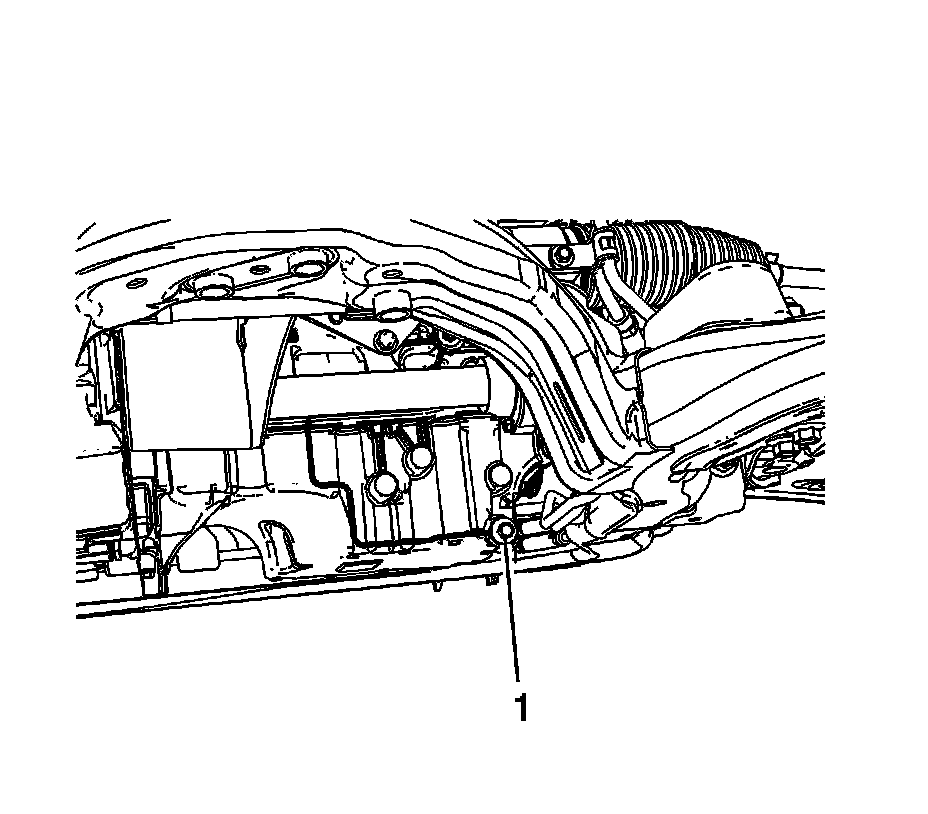

3. Remove the oil pan drain plug (1). Allow the oil to drain completely.

Notice: Refer to Fastener Notice.

4. Install the oil pan drain plug (1).

Tighten the drain plug to 20 N.m (15 lb ft).




5. Place the drain pan under the oil filter.

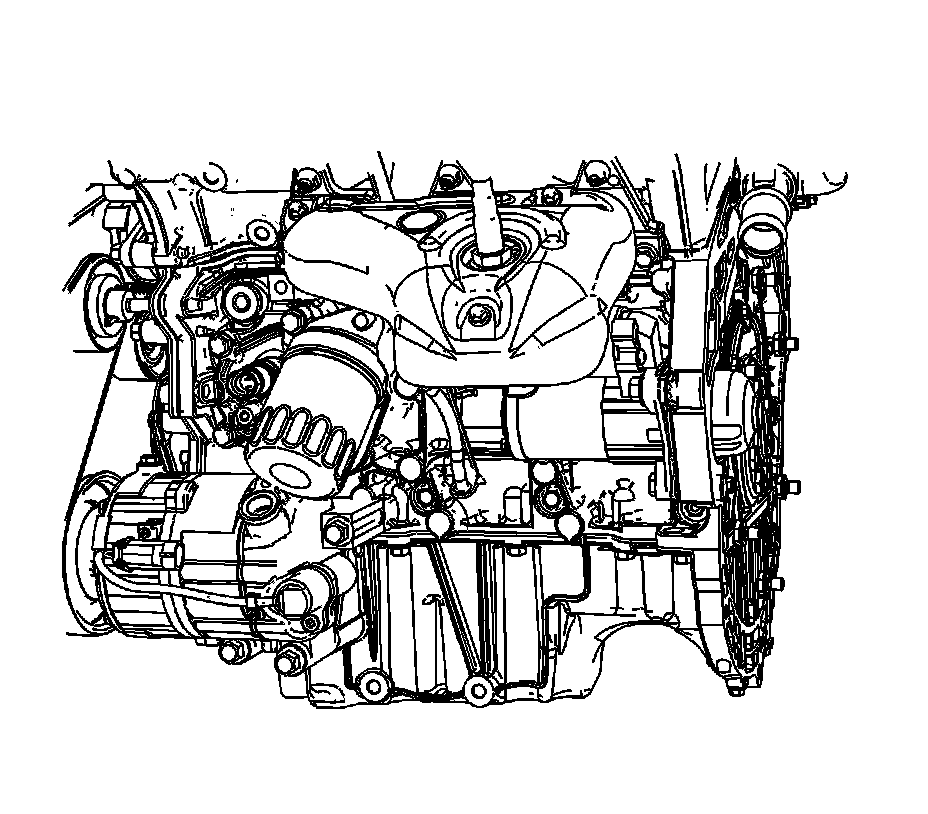

6. Remove the oil filter. Allow the oil to drain completely.

Installation Procedure




1. Lubricate the NEW oil filter gasket with clean engine oil.
2. Tighten the oil filter.

Tighten the filter to 30 N.m (22 lb ft).

3. Lower the vehicle.
4. Fill the engine with oil to the appropriate mark.
5. Start the engine and inspect for leaks.
