Air Flow Meter/Sensor: Service and Repair

MASS AIRFLOW SENSOR/INTAKE AIR TEMPERATURE SENSOR REPLACEMENT

REMOVAL PROCEDURE

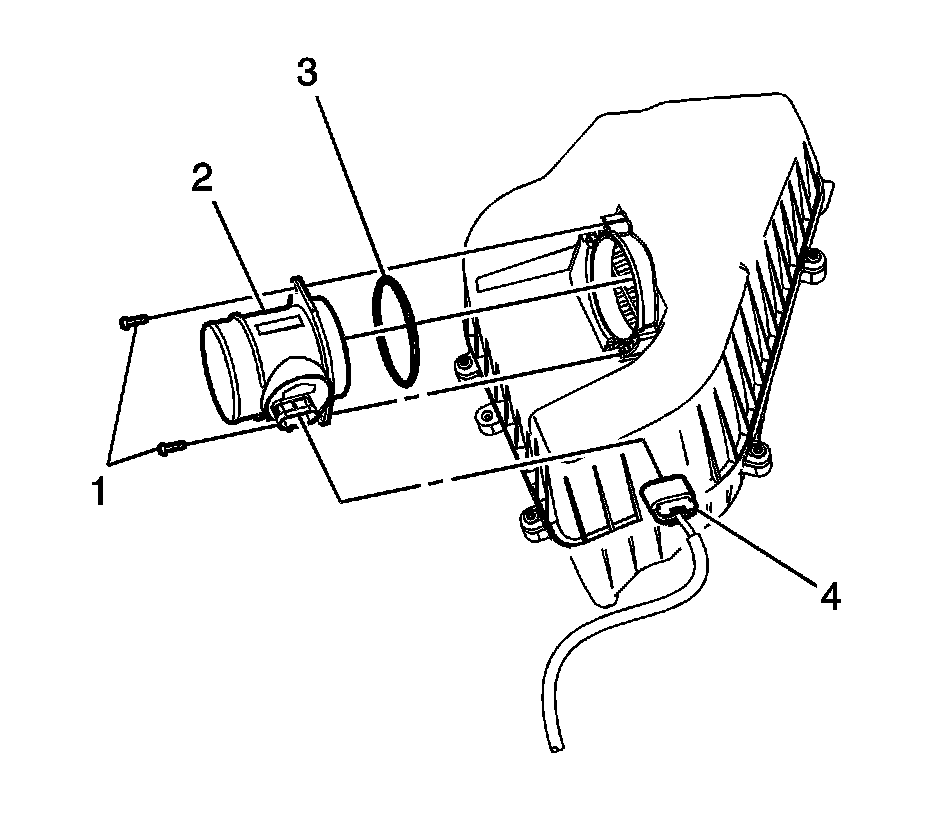

1. Remove the air cleaner outlet duct.
2. Disconnect the engine wiring harness electrical connector (4) from the mass air flow (MAF)/intake air temperature (IAT) sensor.
3. Remove the MAF/IAT sensor screws (1).
4. Remove the MAF/IAT sensor (2) from the air cleaner assembly.
5. Remove the MAF/IAT sensor seal (3).

INSTALLATION PROCEDURE




1. Install the MAF/IAT sensor seal (3) onto the MAF/IAT sensor.
2. Install the MAF/IAT sensor (2) to the air cleaner assembly.

3. NOTE: Refer to Fastener Notice.

Install the MAF/IAT sensor screws (1).

Tighten the screws to 4 N.m (35 lb in).

4. Connect the engine wiring harness electrical connector (4) to the MAF/IAT sensor.
5. Install the air cleaner outlet duct.
