Engine Control Module (ECM) X1 (With RPO Code LY7)

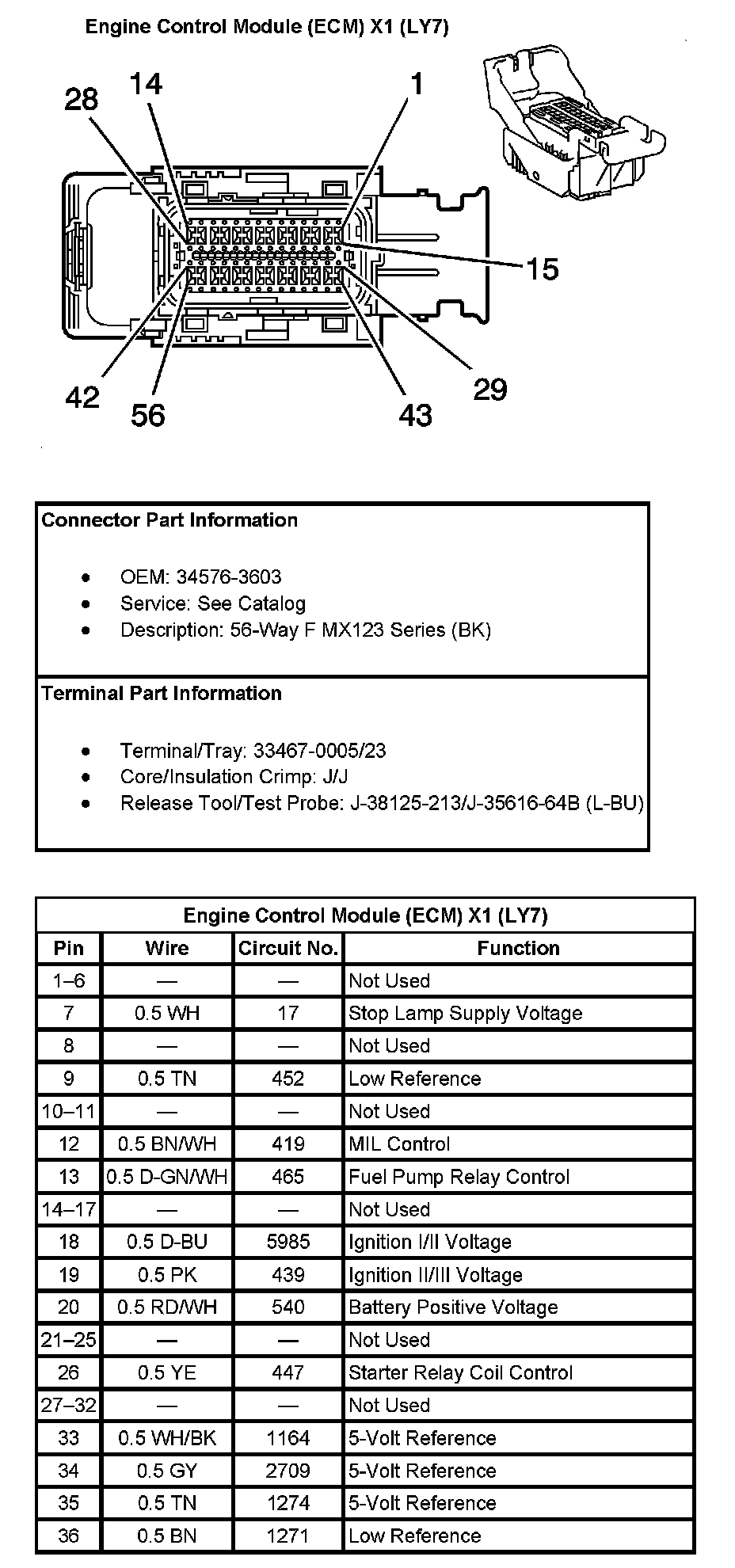

Engine Control Module (ECM) X1 (With RPO Code LY7) (Part 1):

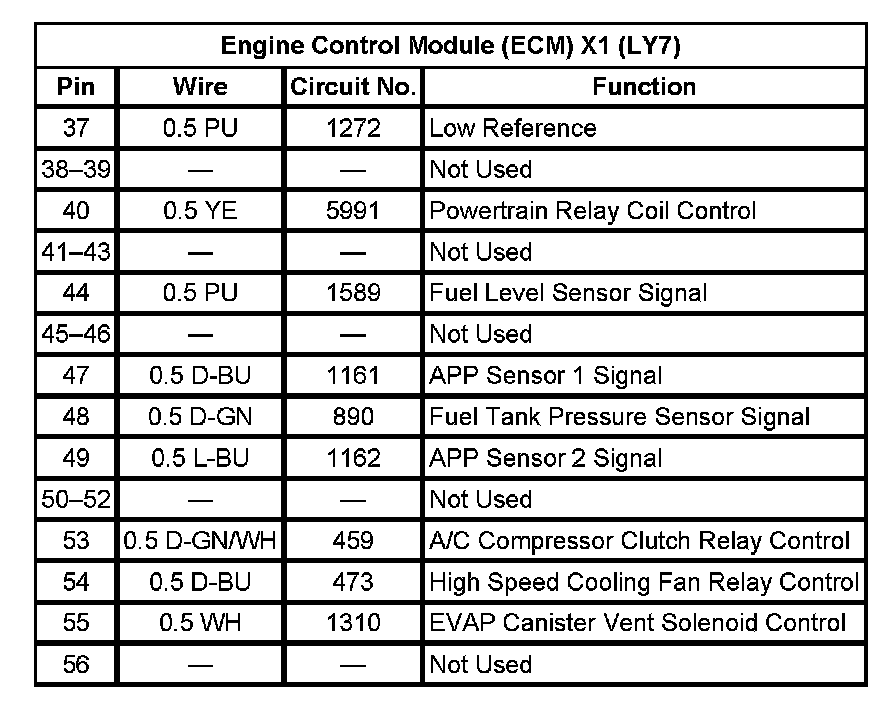

Engine Control Module (ECM) X1 (With RPO Code LY7) (Part 2):
