Scan Tool Output Controls

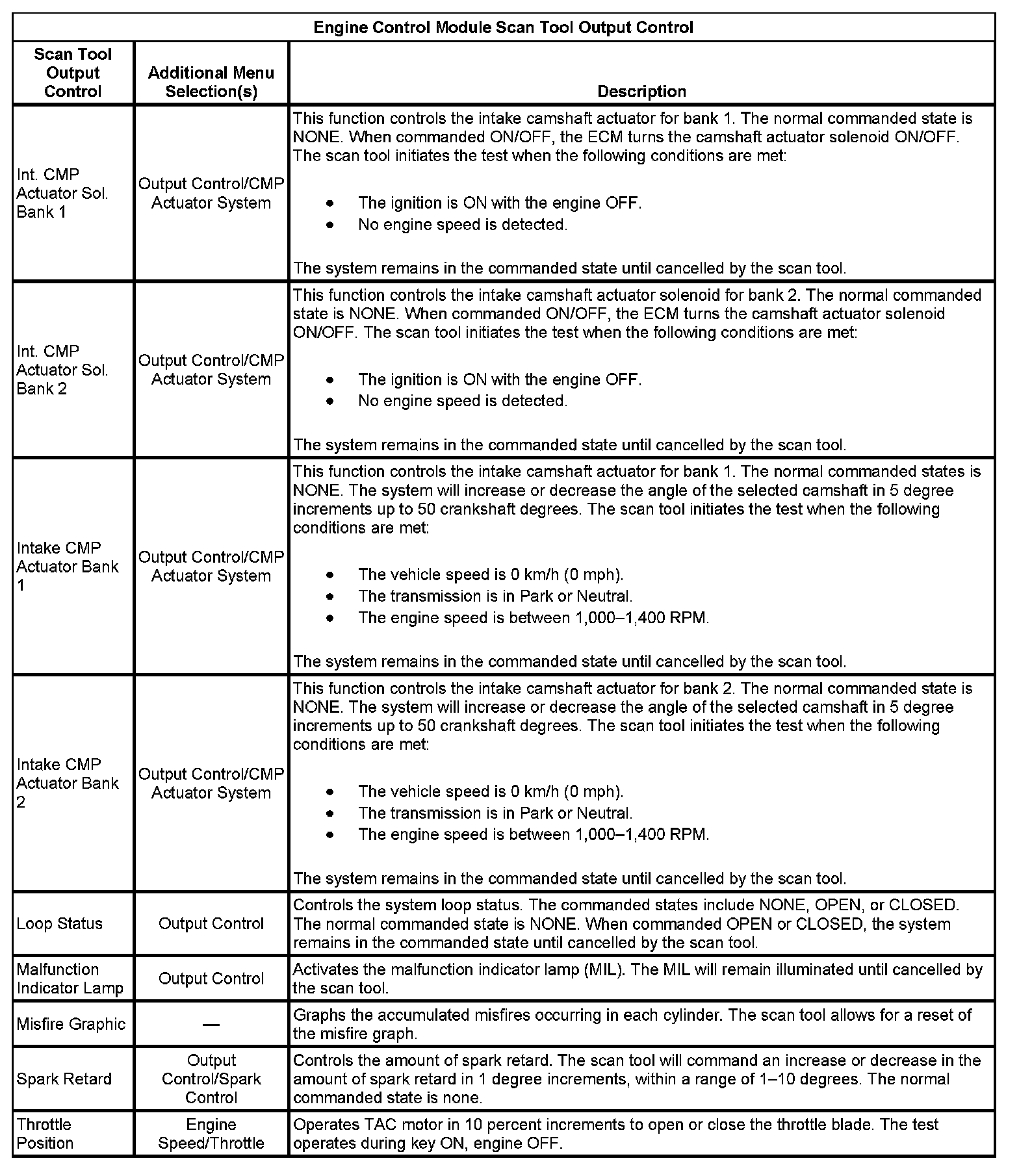

Engine Control Module Scan Tool Output Control (Part 1):

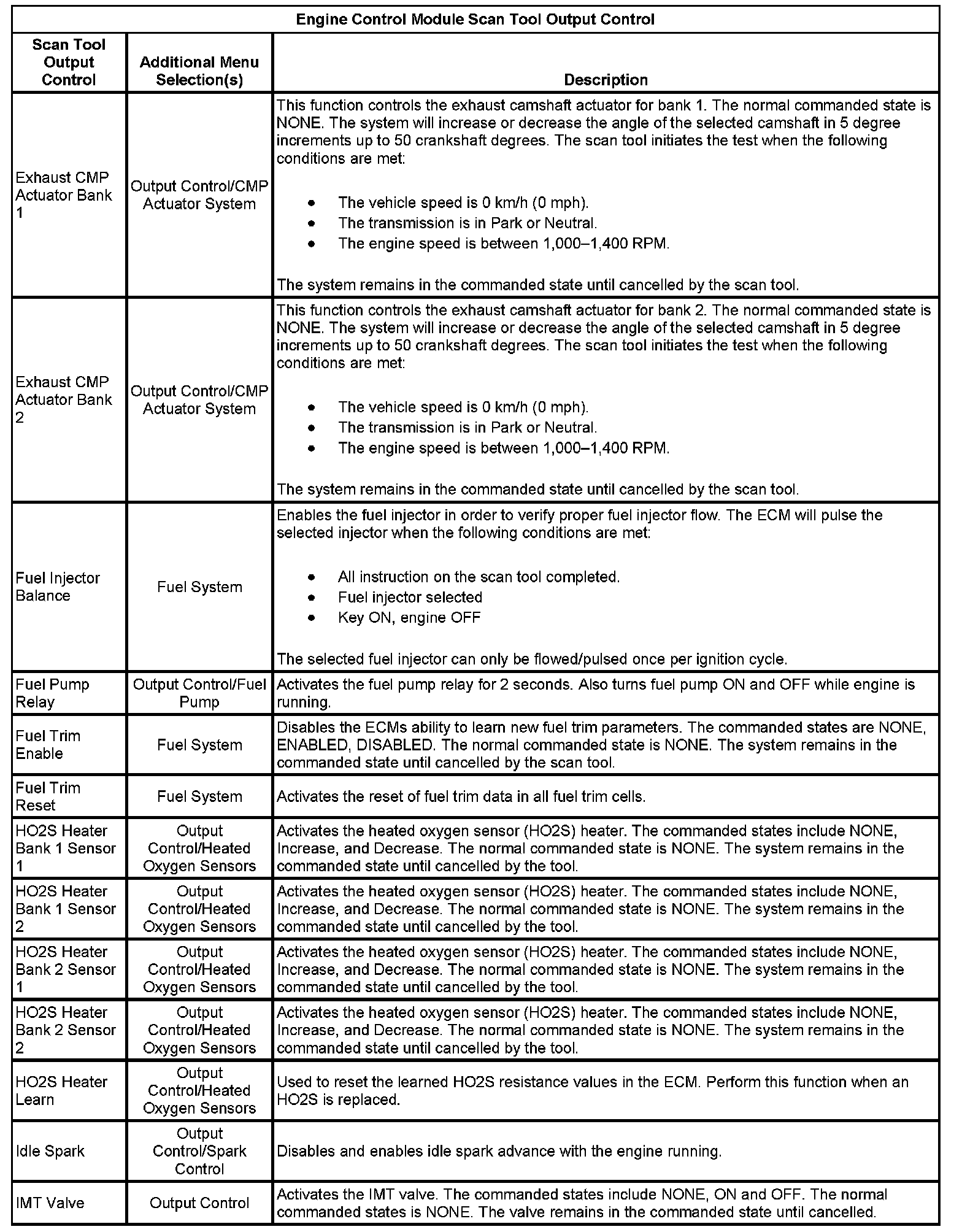

Engine Control Module Scan Tool Output Control (Part 2):

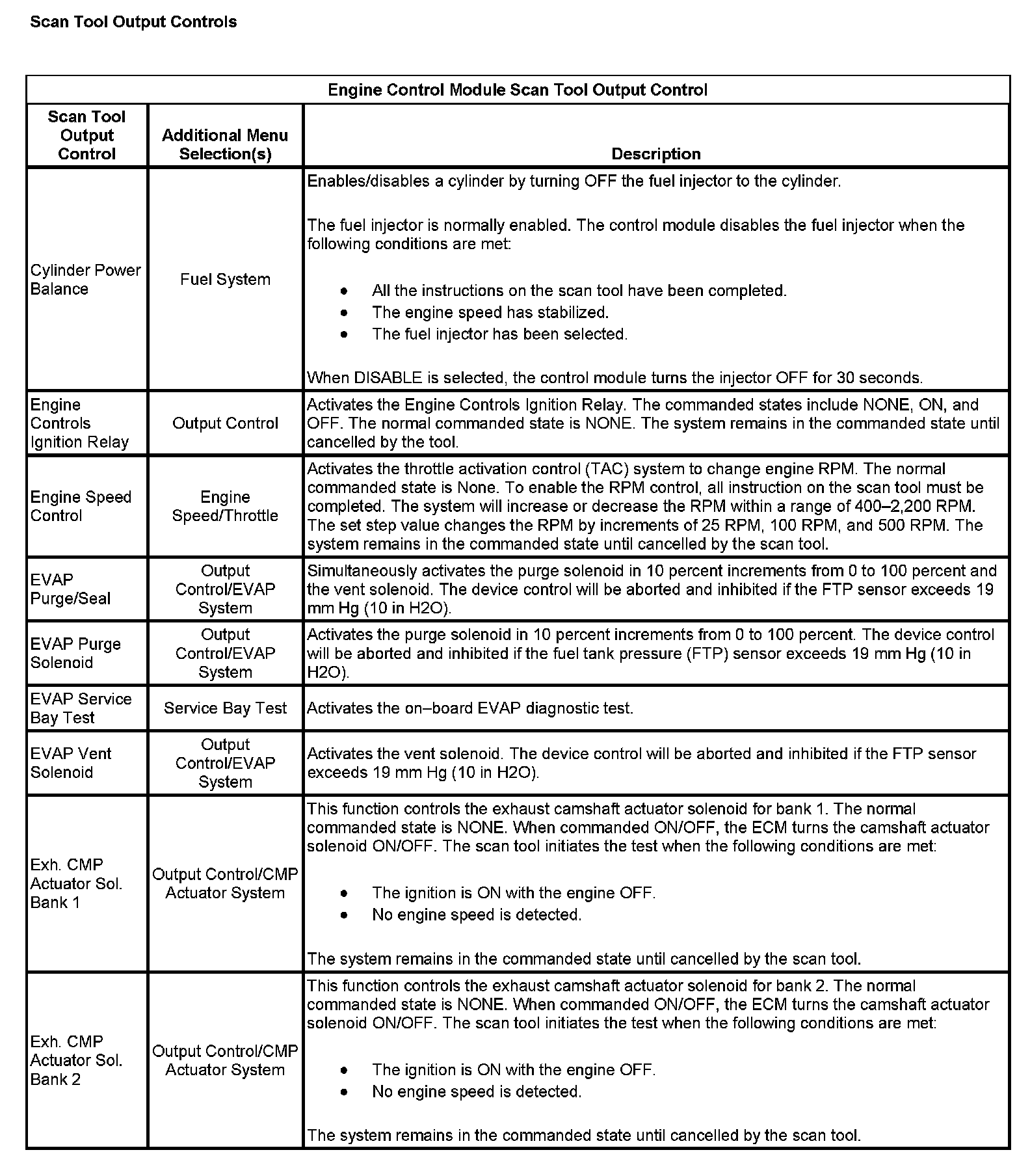

Engine Control Module Scan Tool Output Control (Part 3):
