System Specifications

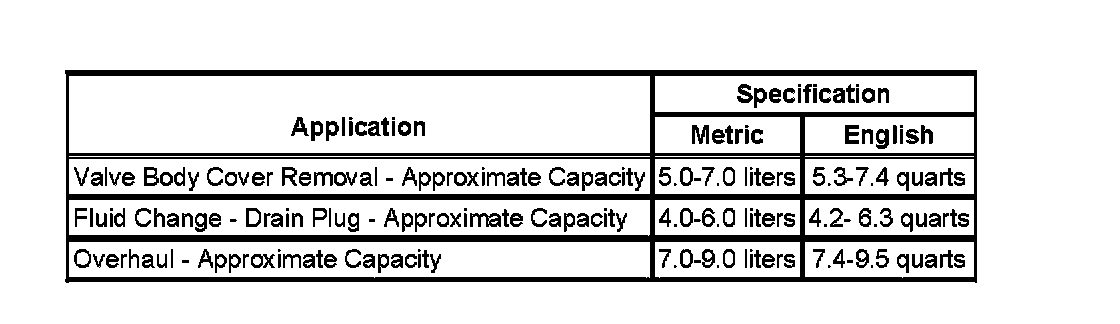

Fluid Capacity Specifications:

AUTOMATIC TRANSMISSION FLUID
Valve Body Cover Removal 5.0-7.0 liters (5.3-7.4 quarts)
Fluid Change - Drain Plug 4.0-6.0 liters (4.2-6.3 quarts)
Overhaul 7.0-9.0 liters (7.4-9.5 quarts)

NOTE: All capacities are approximate. When adding, be sure to fill to the approximate level. Recheck fluid level after filling.
