System Specifications

Primary Camshaft Drive Chain)
Tensioner Bolt 23 Nm (17 lb ft)

Secondary Camshaft Drive Chain)
Tensioner Bolt 23 Nm (17 lb ft)

Crankshaft Balancer Bolt
First Pass 100 Nm (74 lb ft)
Final Pass 150 Degrees

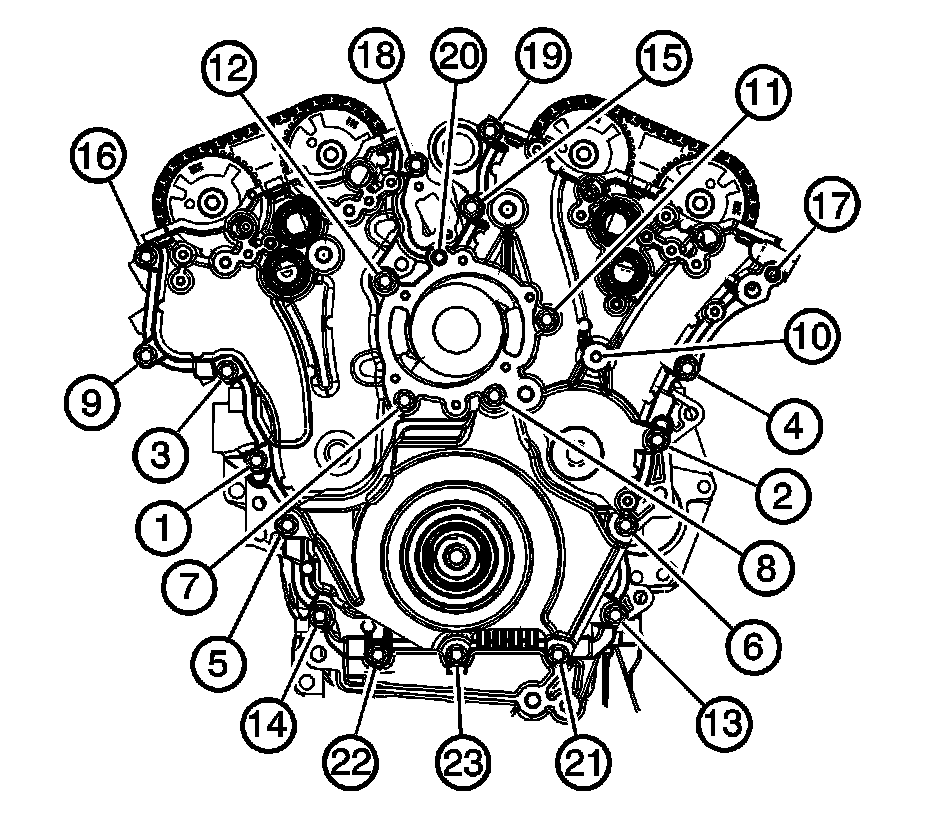

Engine Front Cover Bolt 23 Nm (17 lb ft)
