Control Module: Locations

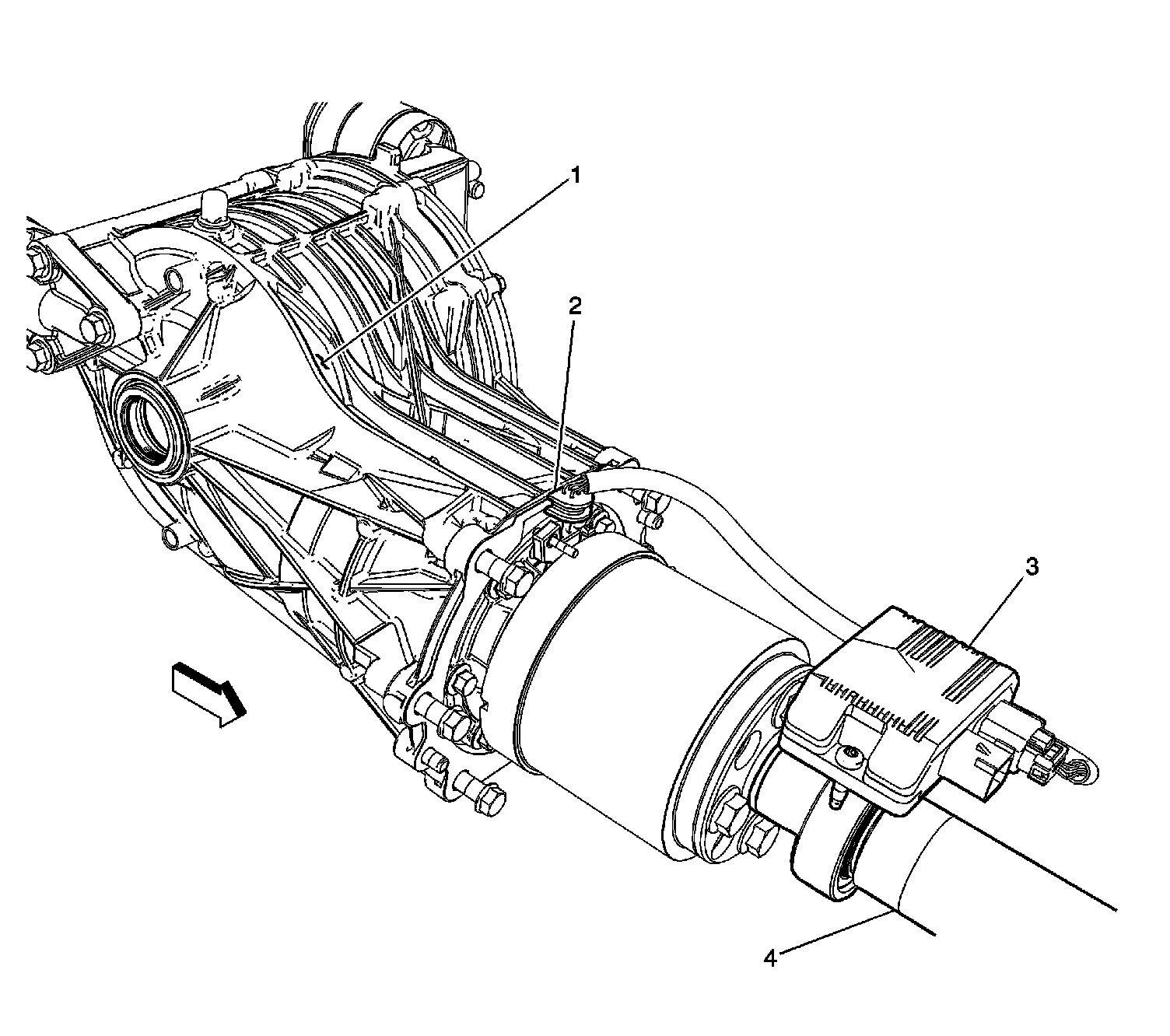

Transfer Case Control Component Views

Near the Rear Differential




3 - Transfer Case Shift Control Module (MH6)
