Starting and Charging: Locations

Engine Electrical Component Views

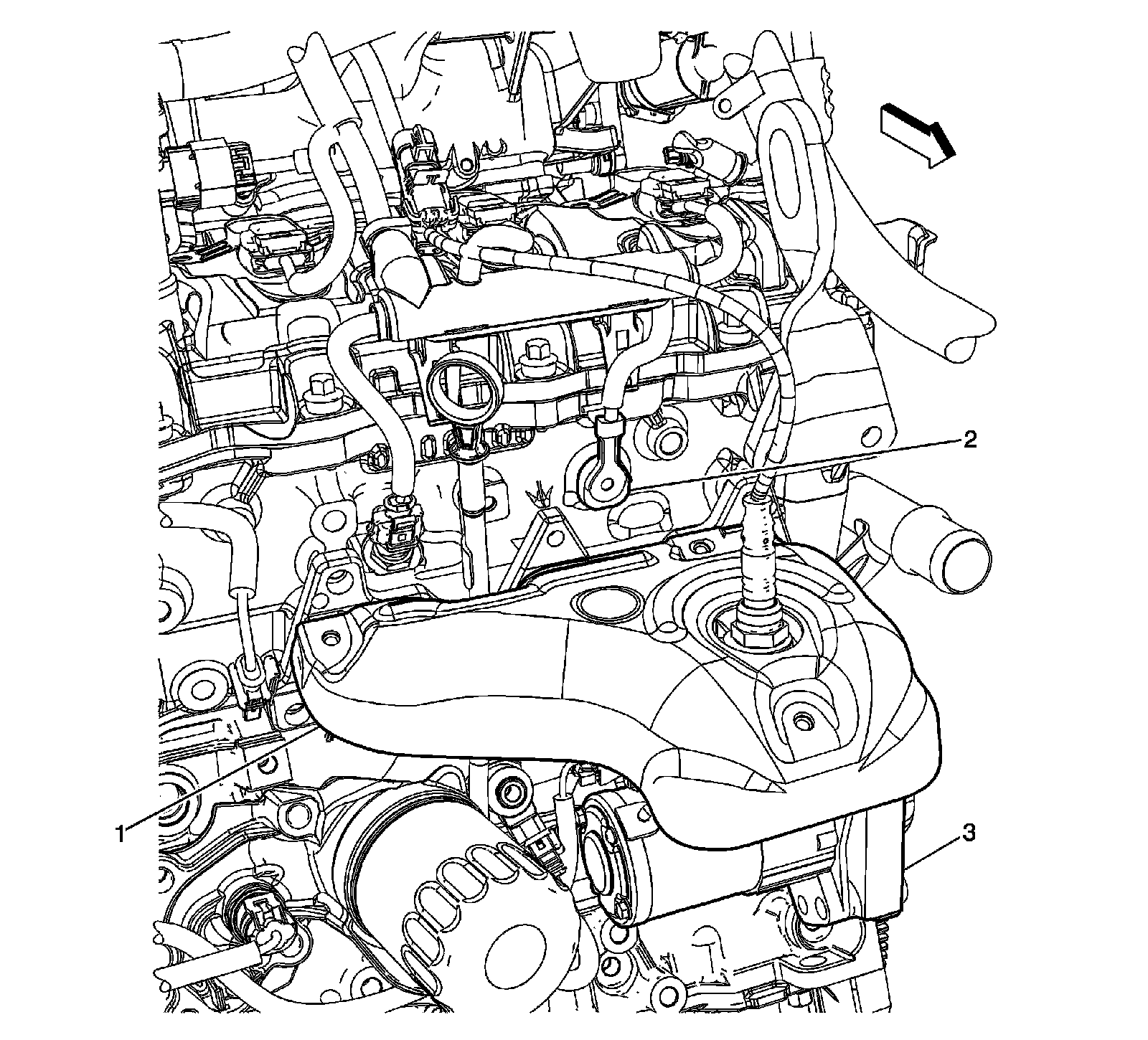

G114




1 - Exhaust Manifold
2 - G114
3 - Starter Motor

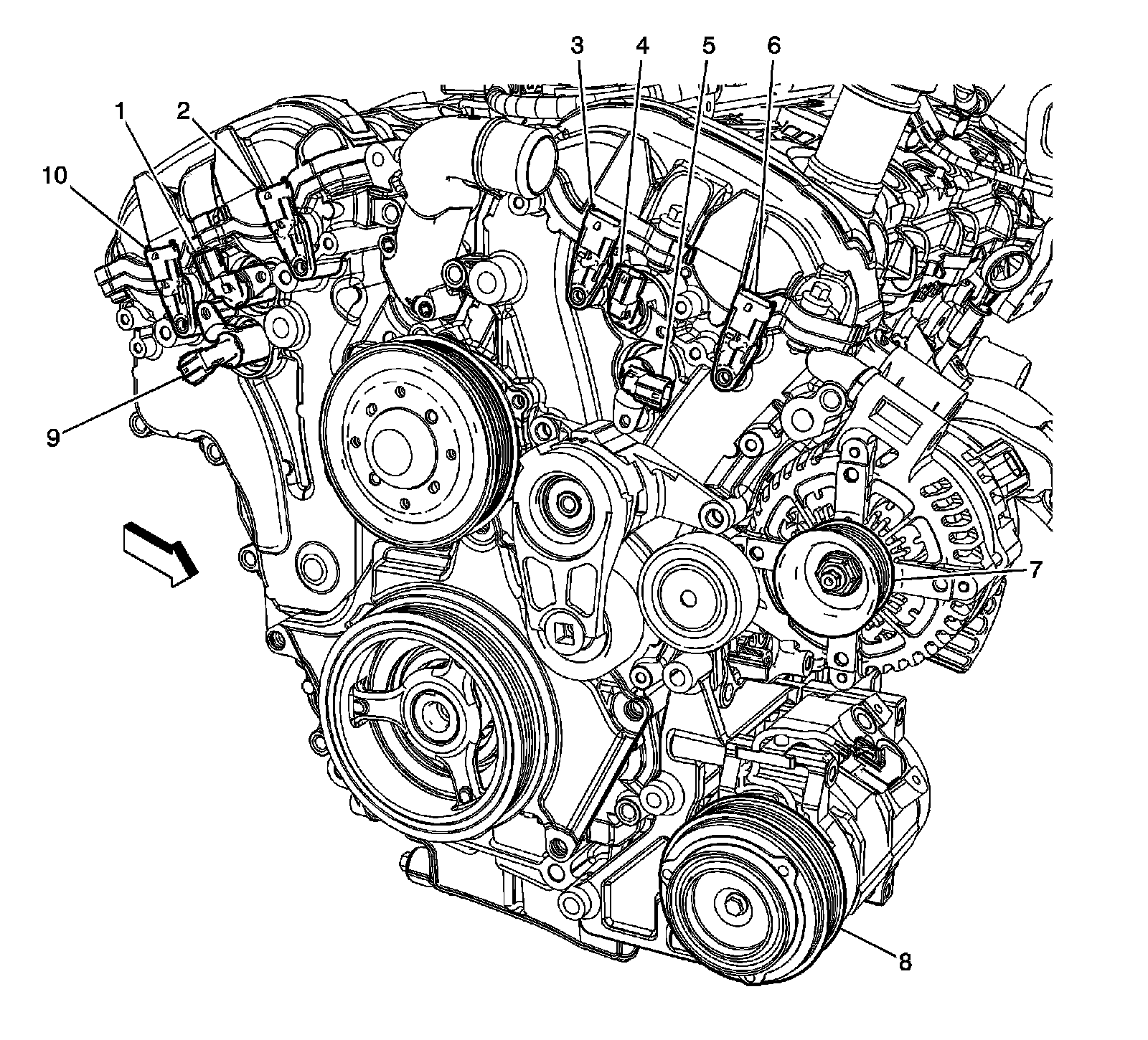

Near the Water Pump




1 - Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
2 - Camshaft Position (CMP) Sensor - Intake Bank 1
3 - Camshaft Position (CMP) Sensor - Intake Bank 2
4 - Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
5 - Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
6 - Camshaft Position (CMP) Sensor - Exhaust Bank 2
7 - Generator
8 - A/C Compressor Clutch
9 - Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1
10 - Camshaft Position (CMP) Sensor - Exhaust Bank 1

Near the Passenger Seat




1 - Passenger Seat
2 - Battery Current Sensor
3 - Battery
4 - G304
5 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
6 - Inflatable Restraint Vehicle Rollover Sensor
7 - YAW Rate and Lateral Acceleration Sensor
