Remote Function Schematics

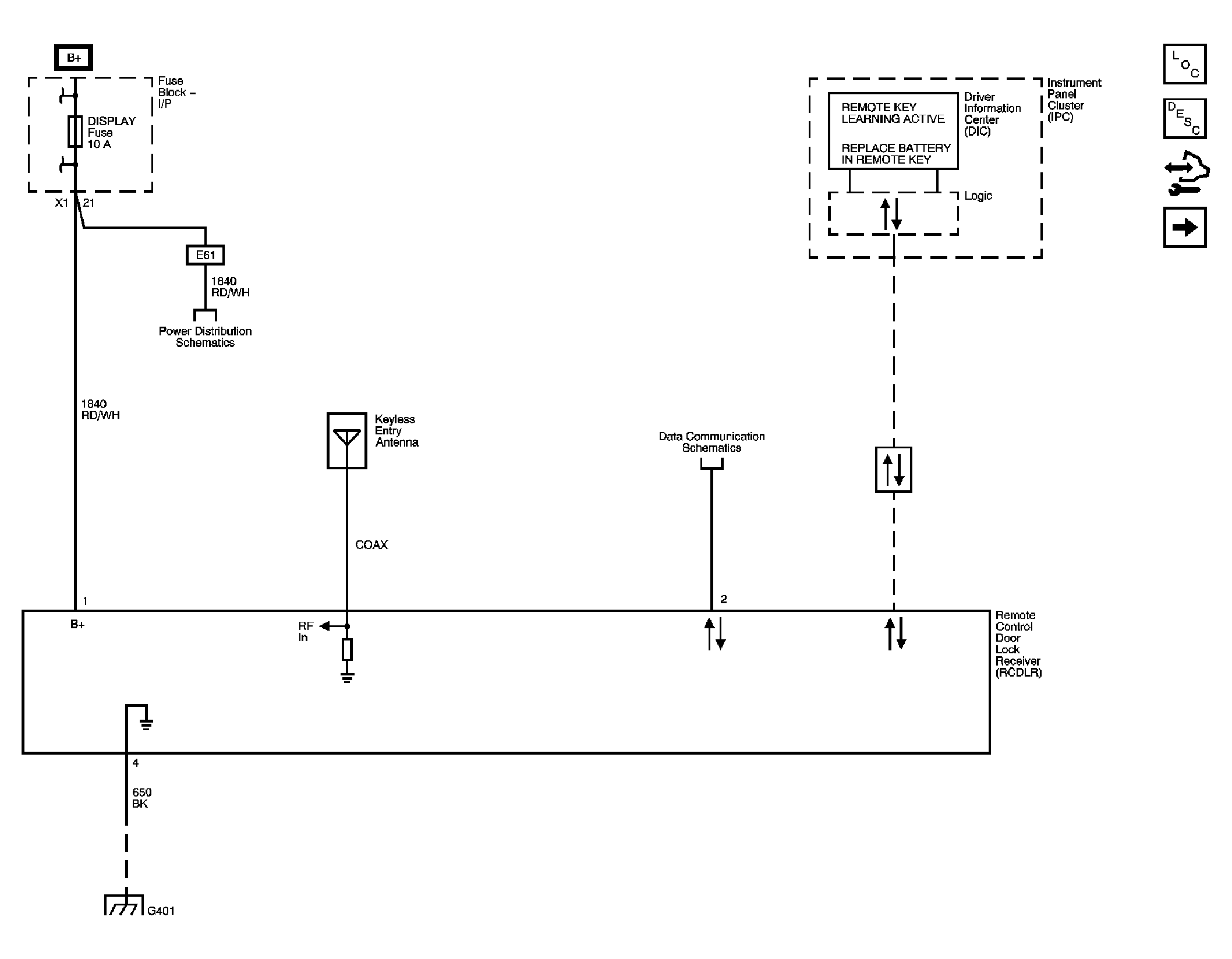

Fig 1: Keyless Entry - AP3/AP8 - Schematic
GM1844227Courtesy of GENERAL MOTORS CORP.

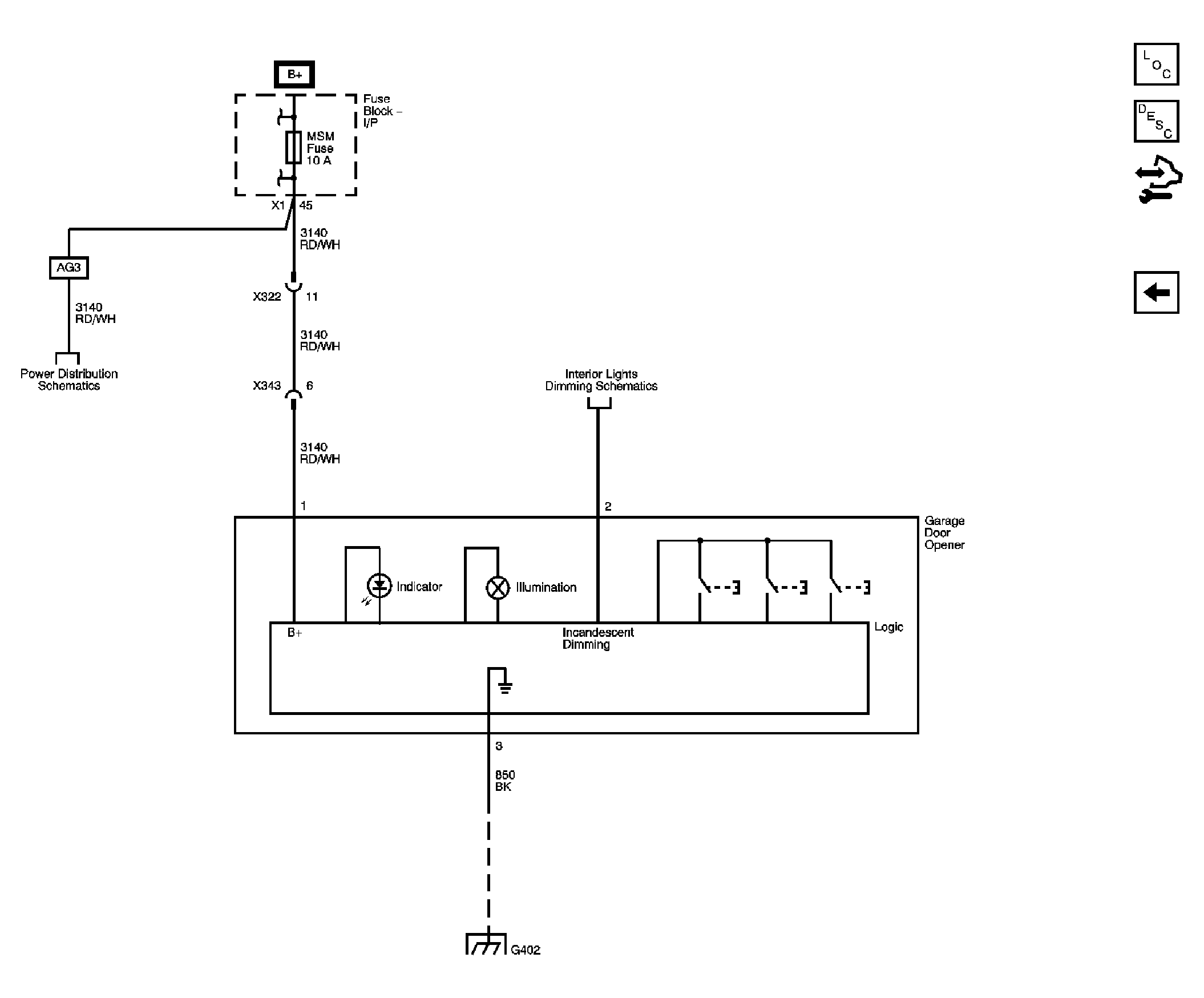

Fig 2: Garage Door Opener - UG1 - Schematic
GM1844228Courtesy of GENERAL MOTORS CORP.
