Rearview Camera Replacement

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

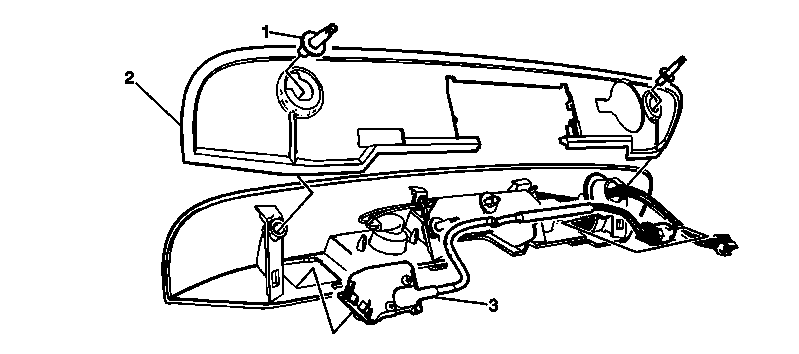

Fig 1: View Of Rearview Camera

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the liftgate applique. Refer to Liftgate Applique Replacement (Acadia) or Liftgate Applique Replacement (Enclave) or Liftgate Applique Replacement (OUTLOOK) .
1	Double Ended Stud with Collar (Qty: 2) Tip: Remove in order to remove the isolator from the applique.
2	Liftgate Applique Isolator Tip: Carefully release the isolator tab from the liftgate applique.
3	Rearview Camera Procedure Disengage the electrical harness from above the rear latch clips. Disconnect the camera electrical harness connector from the rear license plate lamp harness electrical connector. Ensure the electrical harness is properly positioned prior to installation of the liftgate applique isolator.
