Shift Lock Control Component Views

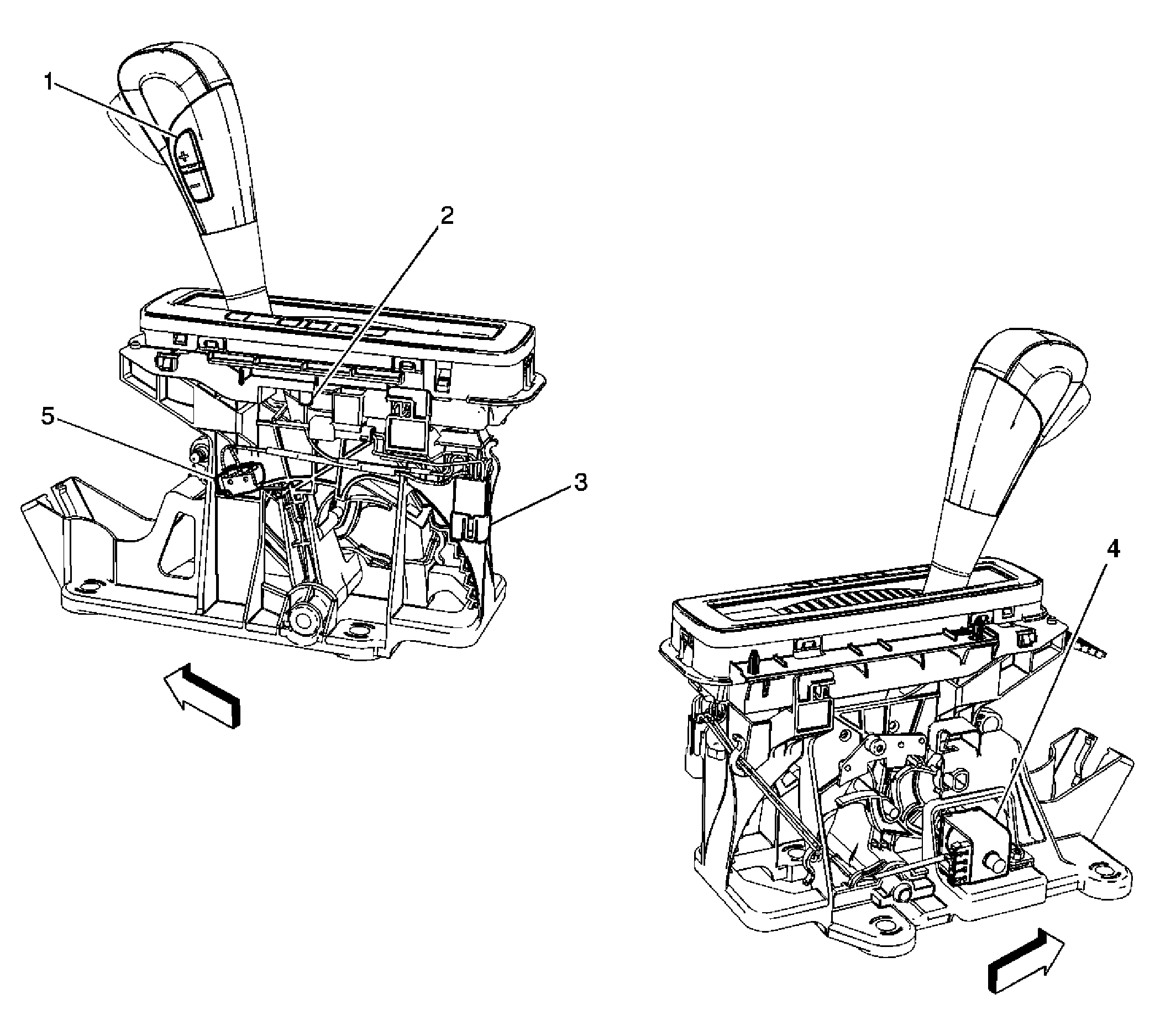

Fig 1: Identifying Shifter Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tap Up/Tap Down Switch
2	PRNDL Lamp
3	X341
4	A/T Shift Lock Control Solenoid
5	Ignition Lock Switch

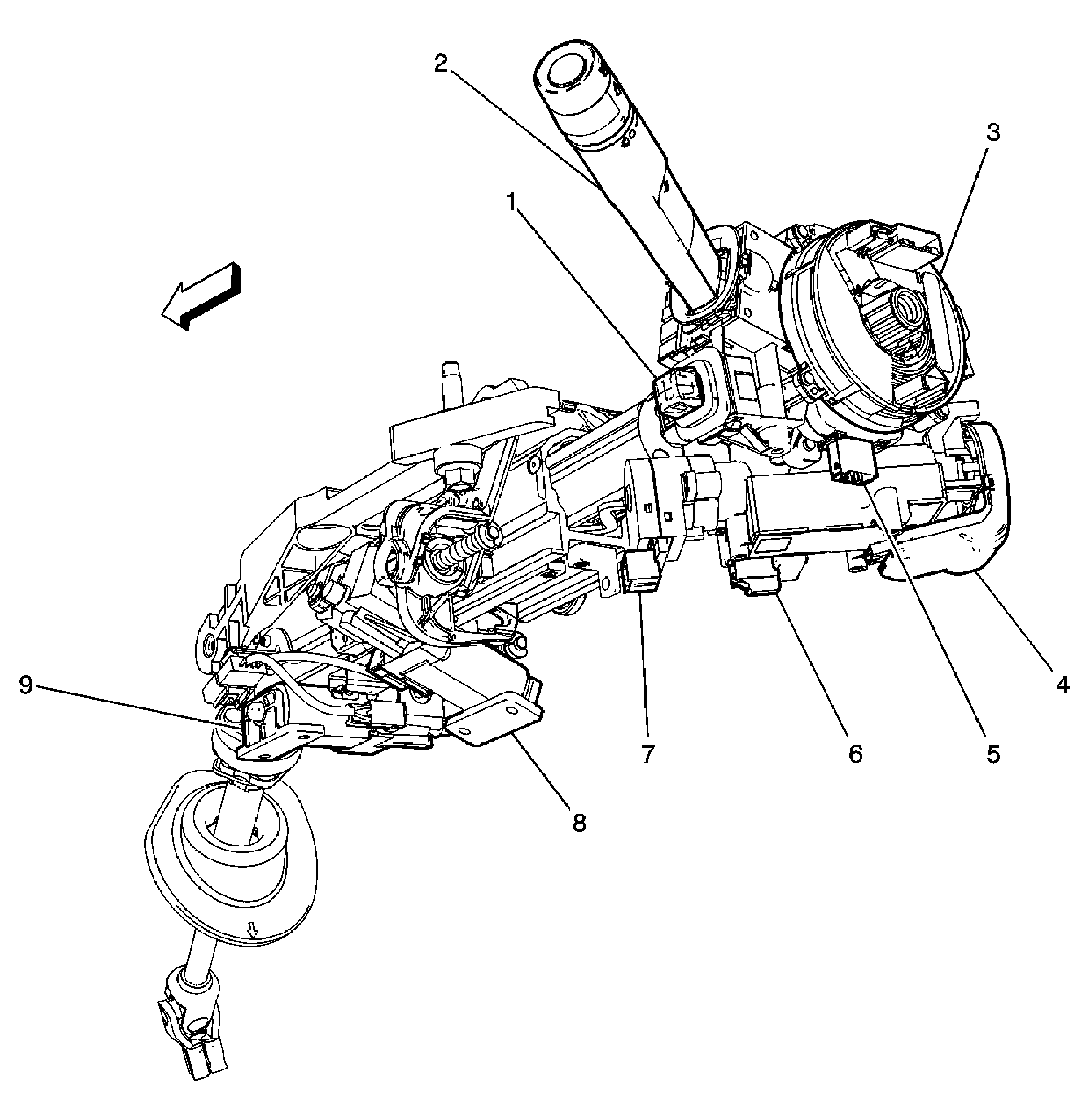

Fig 2: Identifying Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tilt/Telescope Switch (N38)
2	Turn Signal/Multifunction Switch
3	Inflatable Restraint Steering Wheel Module Coil
4	Theft Deterrent Control Module
5	Steering Wheel Speed Position Sensor
6	Ignition Lock Cylinder Control Actuator
7	Ignition Switch
8	Tilt Motor
9	Telescope Actuator
