Accessory Relay

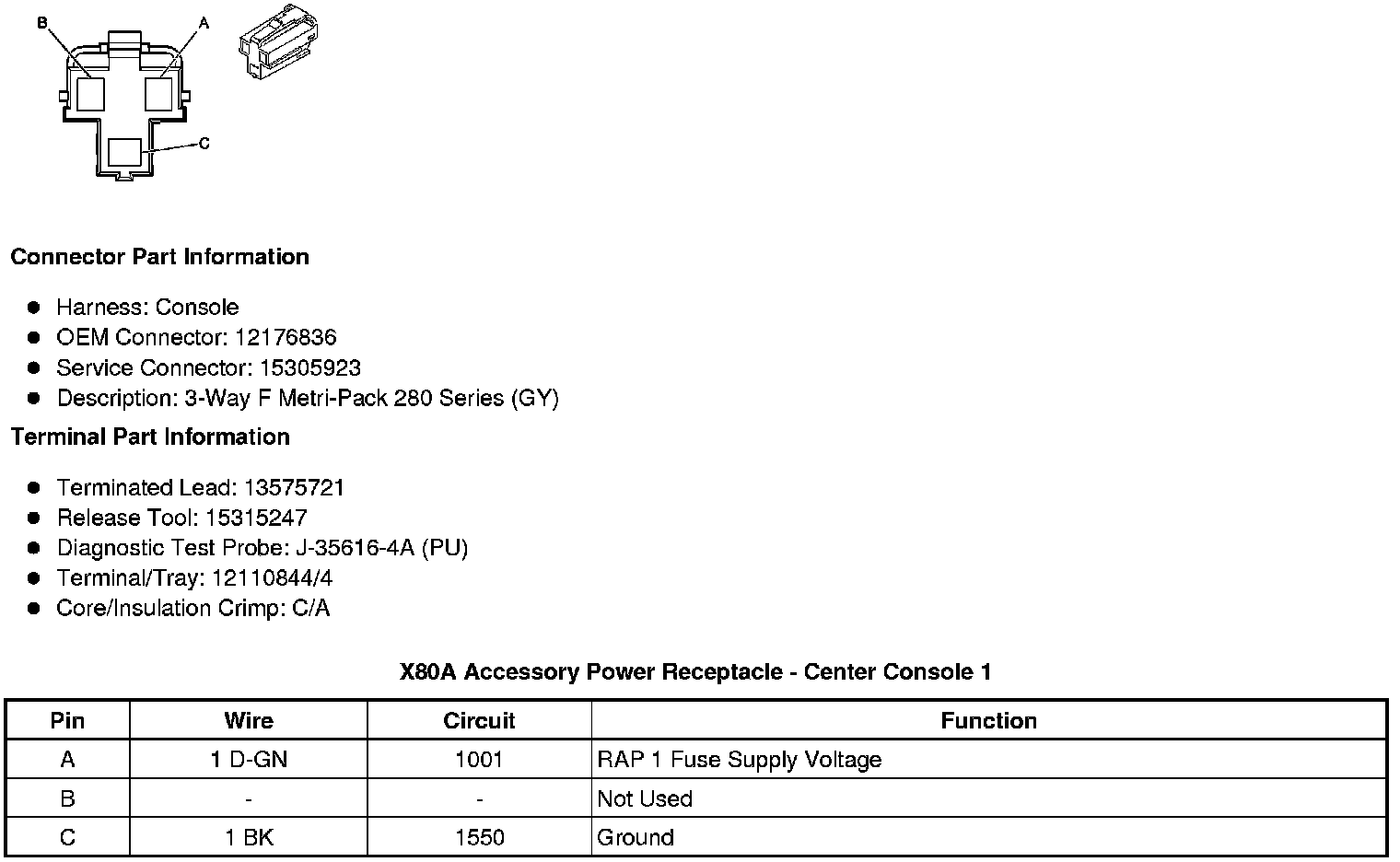

X80A Accessory Power Receptacle - Center Console 1





X80B Accessory Power Receptacle - Center Console 2





X80G Accessory Power Receptacle - Instrument Panel

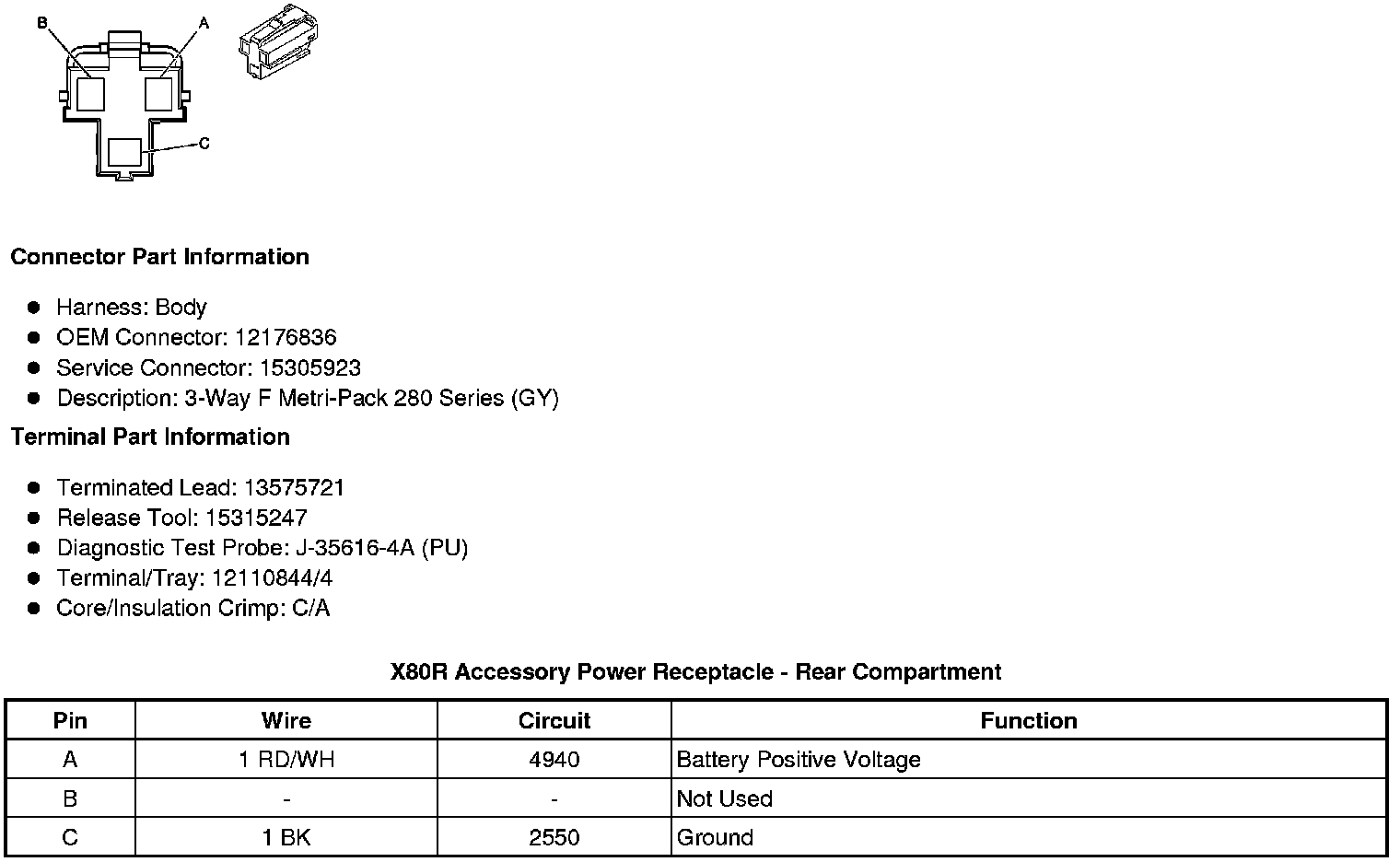

X80R Accessory Power Receptacle - Rear Compartment
