Air Bag Control Module

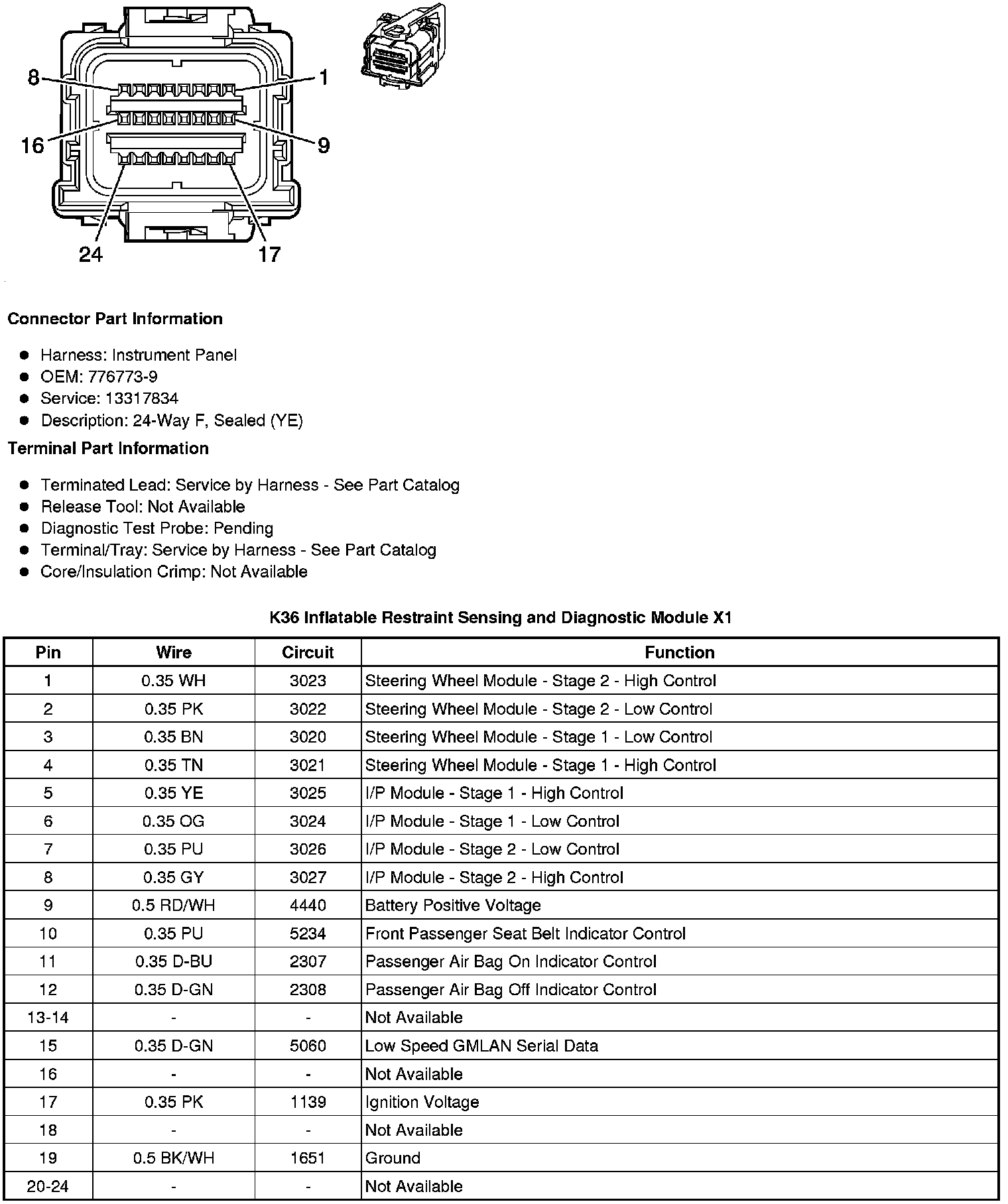

K36 Inflatable Restraint Sensing and Diagnostic Module X1

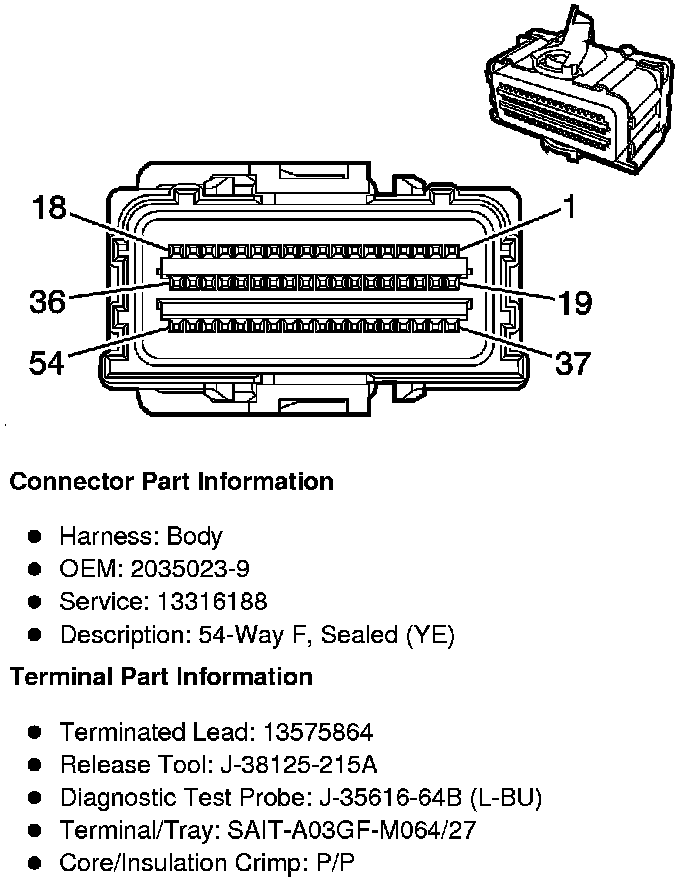

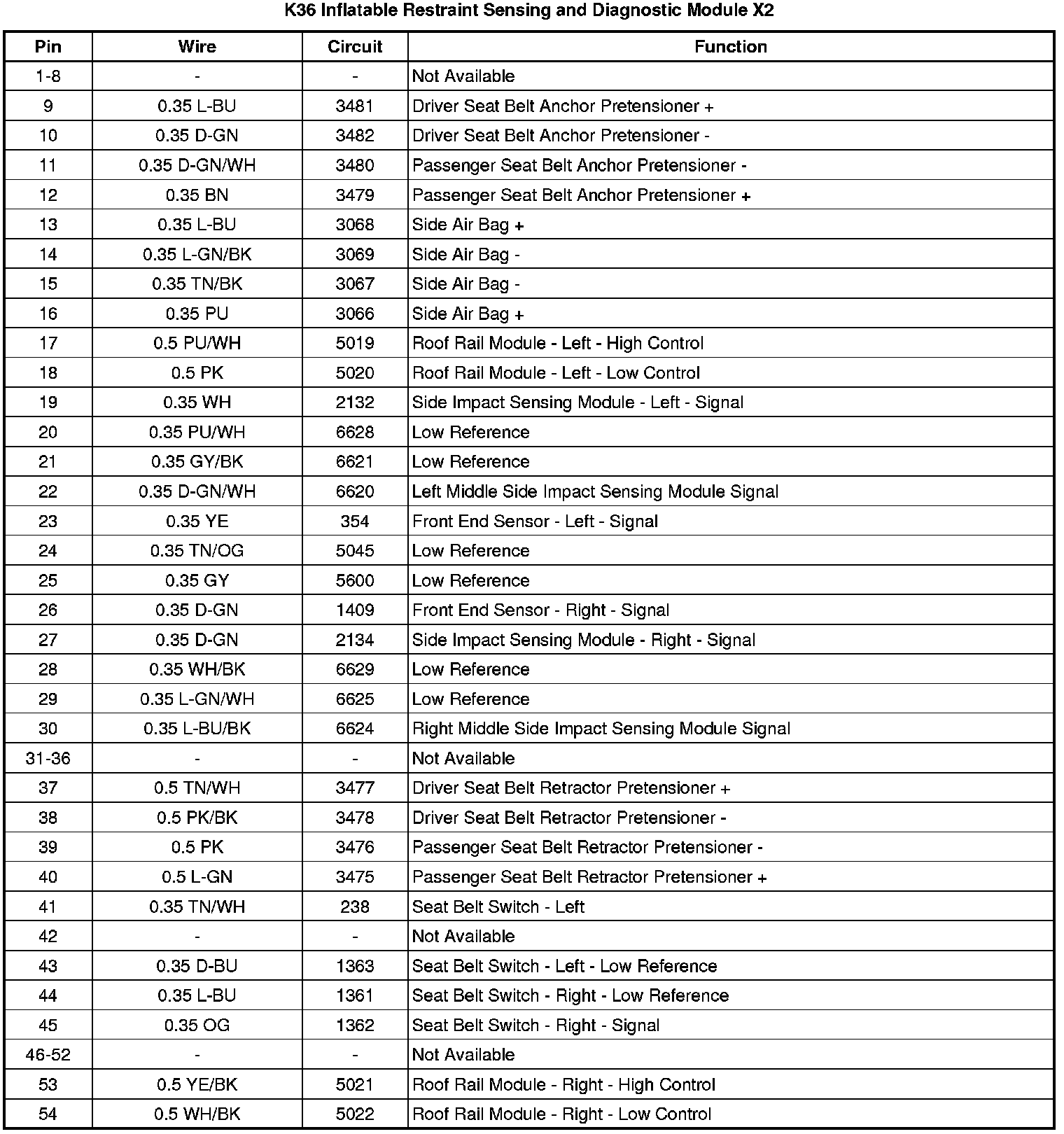

K36 Inflatable Restraint Sensing and Diagnostic Module X2
