Driver/Vehicle Information Display

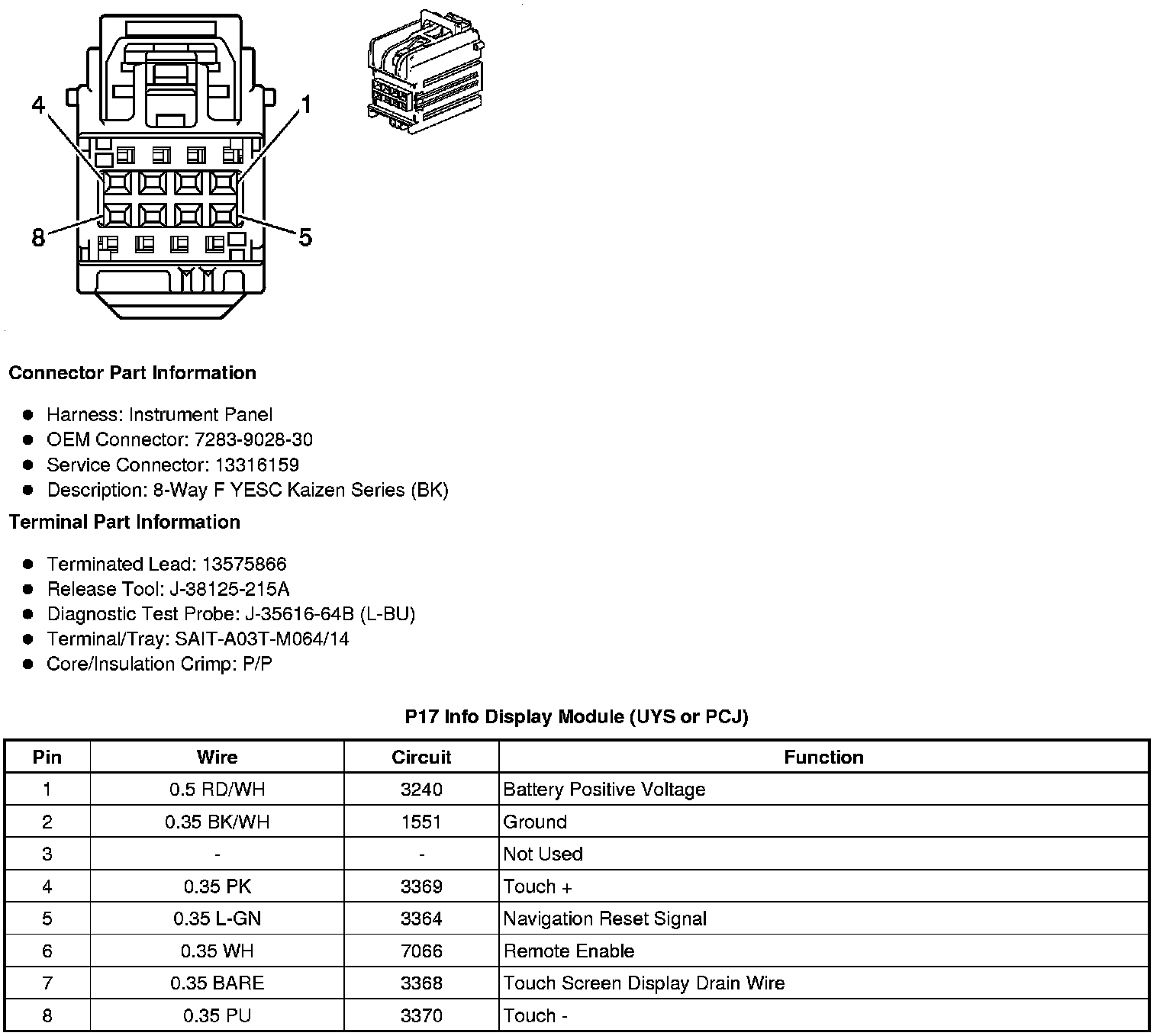

P17 Info Display Module (UYS or PCJ)

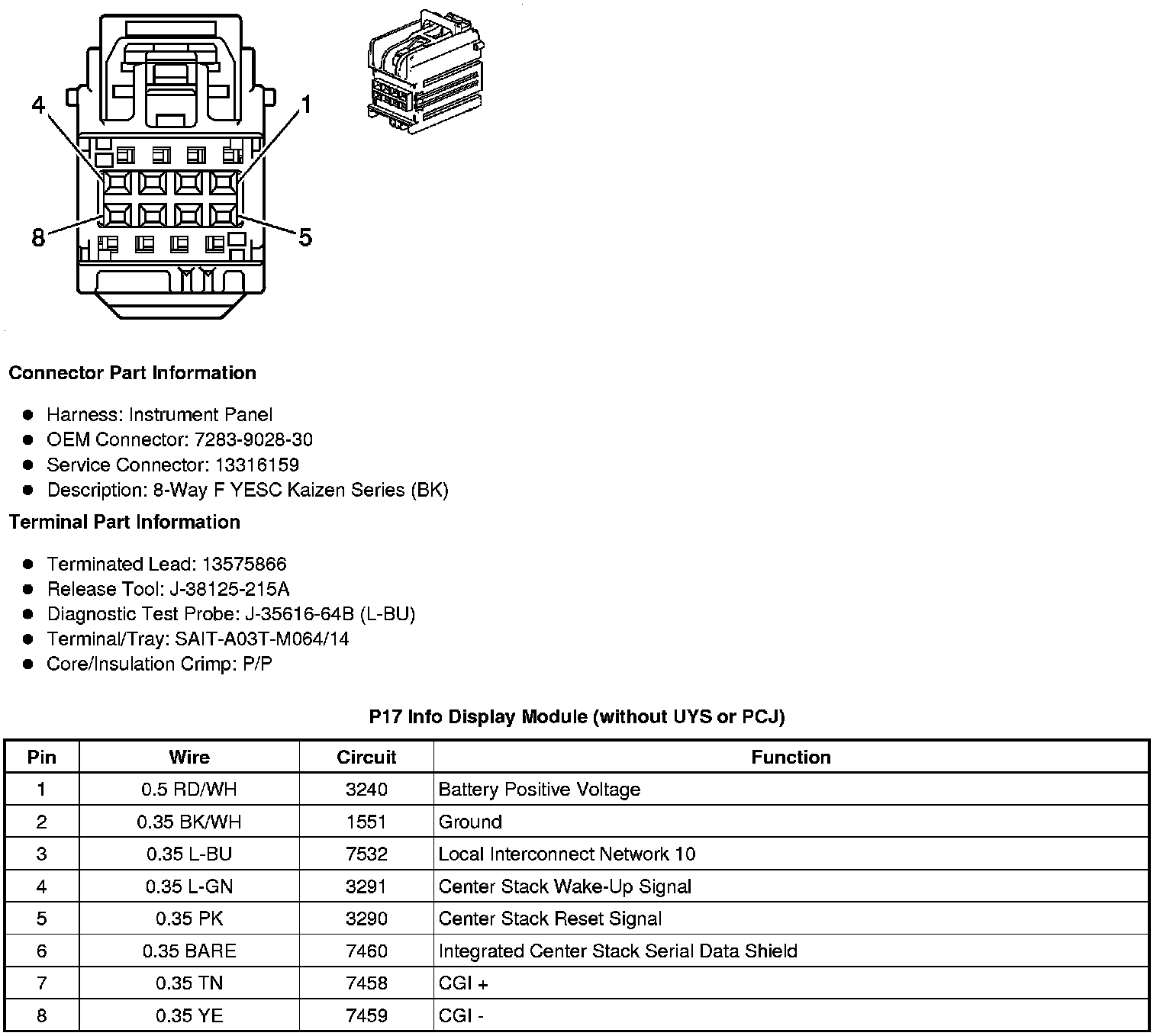

P17 Info Display Module (without UYS or PCJ)
