Fuel Injector




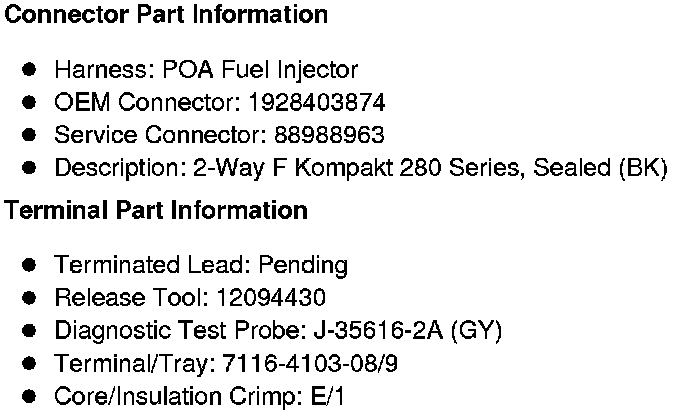

Q17A Fuel Injector 1 (LAF)

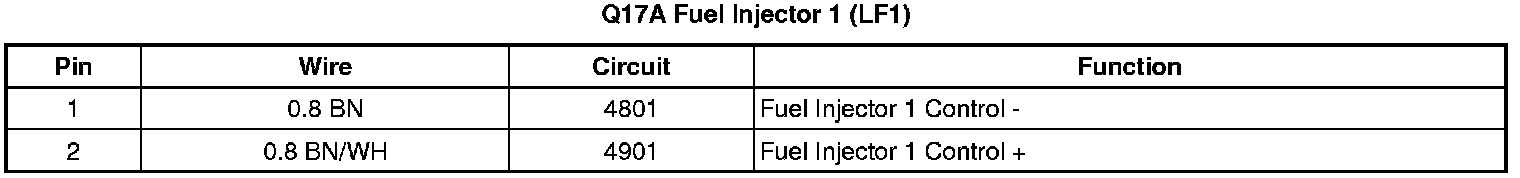

Q17A Fuel Injector 1 (LF1)













Q17B Fuel Injector 2 (LAF)

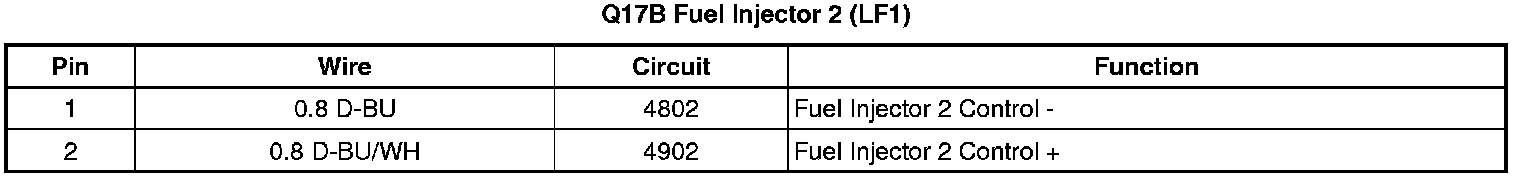

Q17B Fuel Injector 2 (LF1)













Q17C Fuel Injector 3 (LAF)

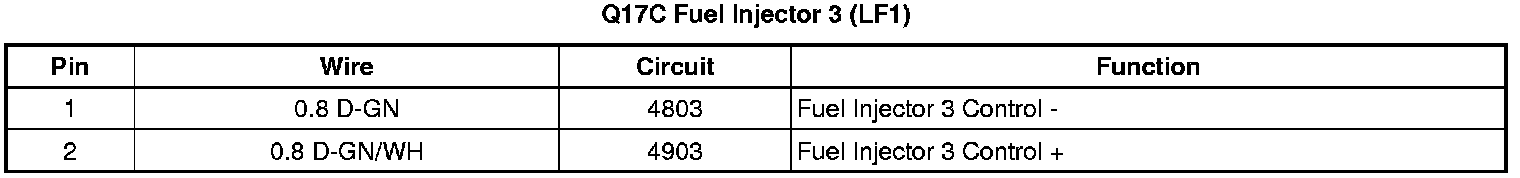

Q17C Fuel Injector 3 (LF1)

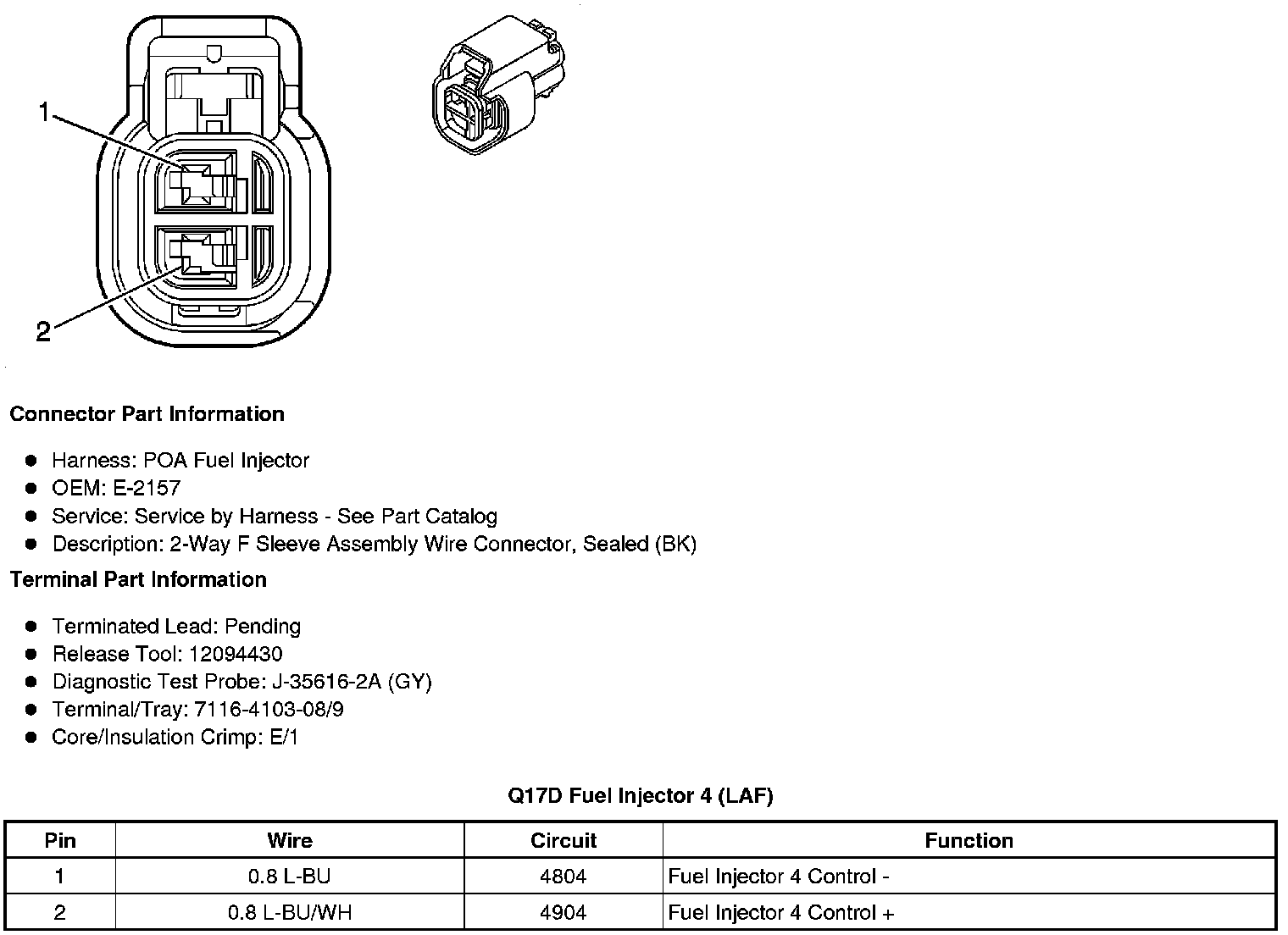

Q17D Fuel Injector 4 (LAF)

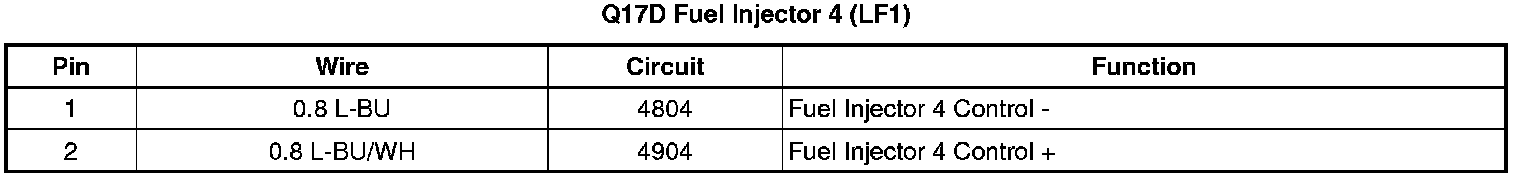

Q17D Fuel Injector 4 (LF1)













Q17E Fuel Injector 5 (LF1)













Q17F Fuel Injector 6 (LF1)
