Parking Assist Distance Sensor

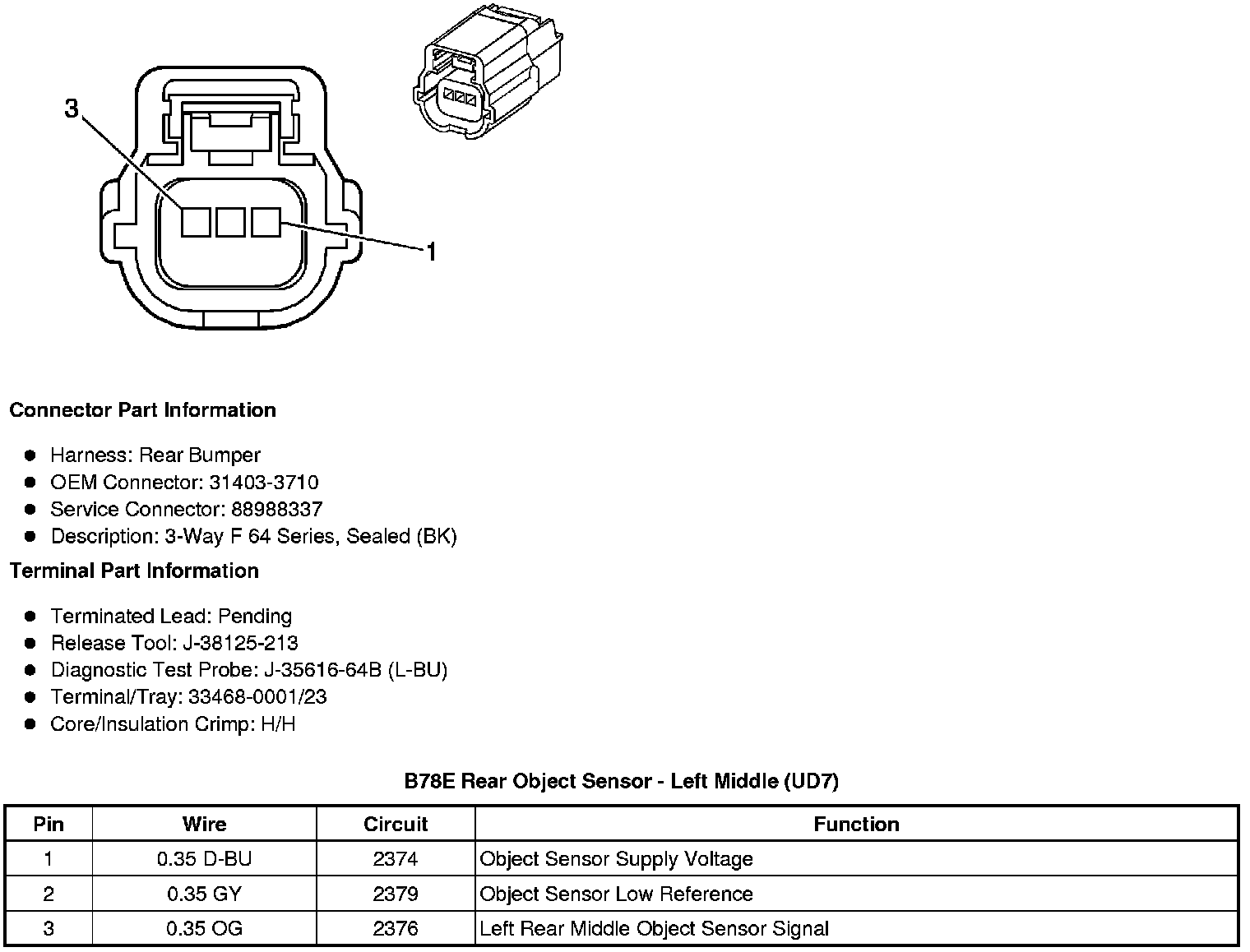

B78E Rear Object Sensor - Left Middle (UD7)

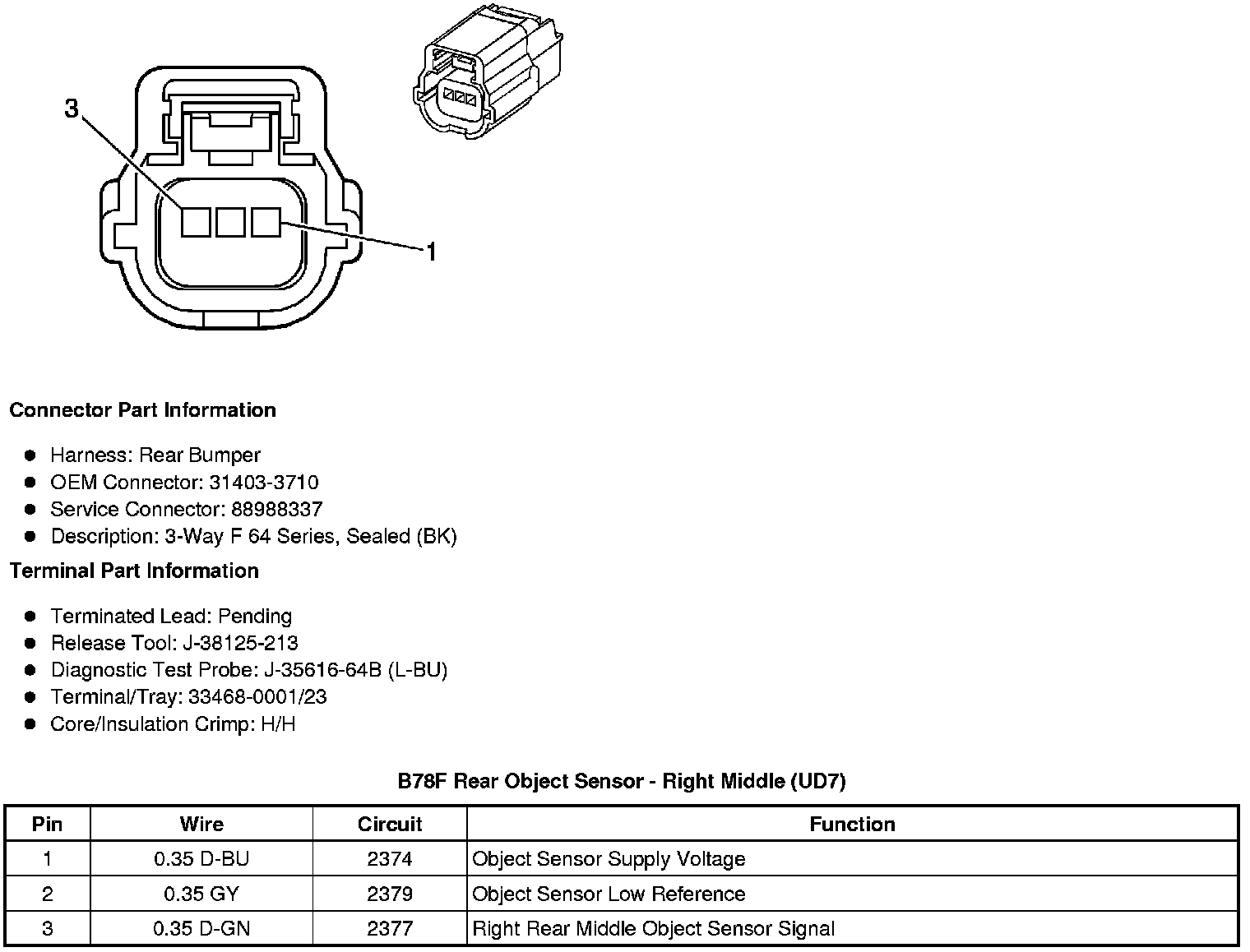

B78F Rear Object Sensor - Right Middle (UD7)

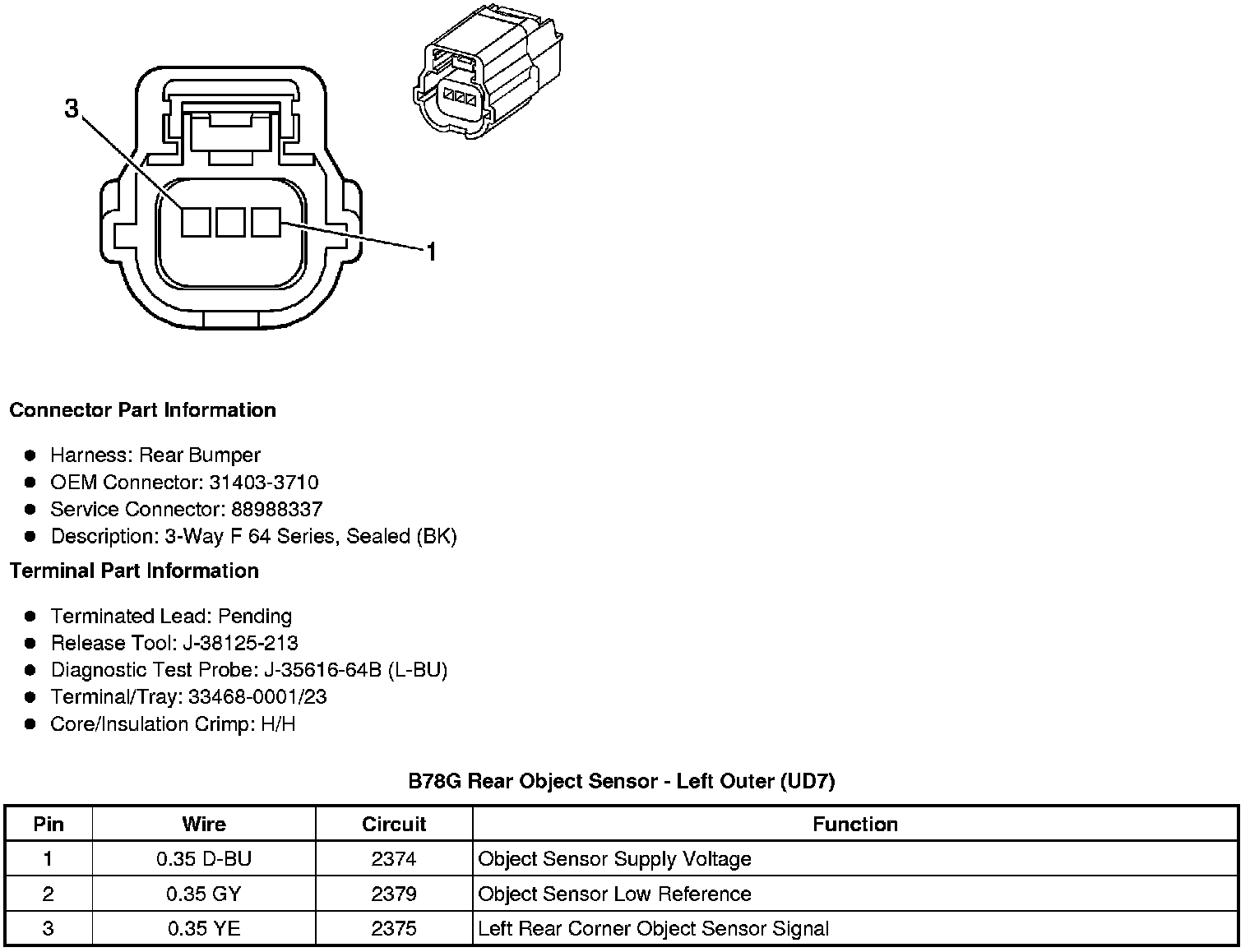

B78G Rear Object Sensor - Left Outer (UD7)





B78H Rear Object Sensor - Right Outer (UD7)
