Power Seat Switch

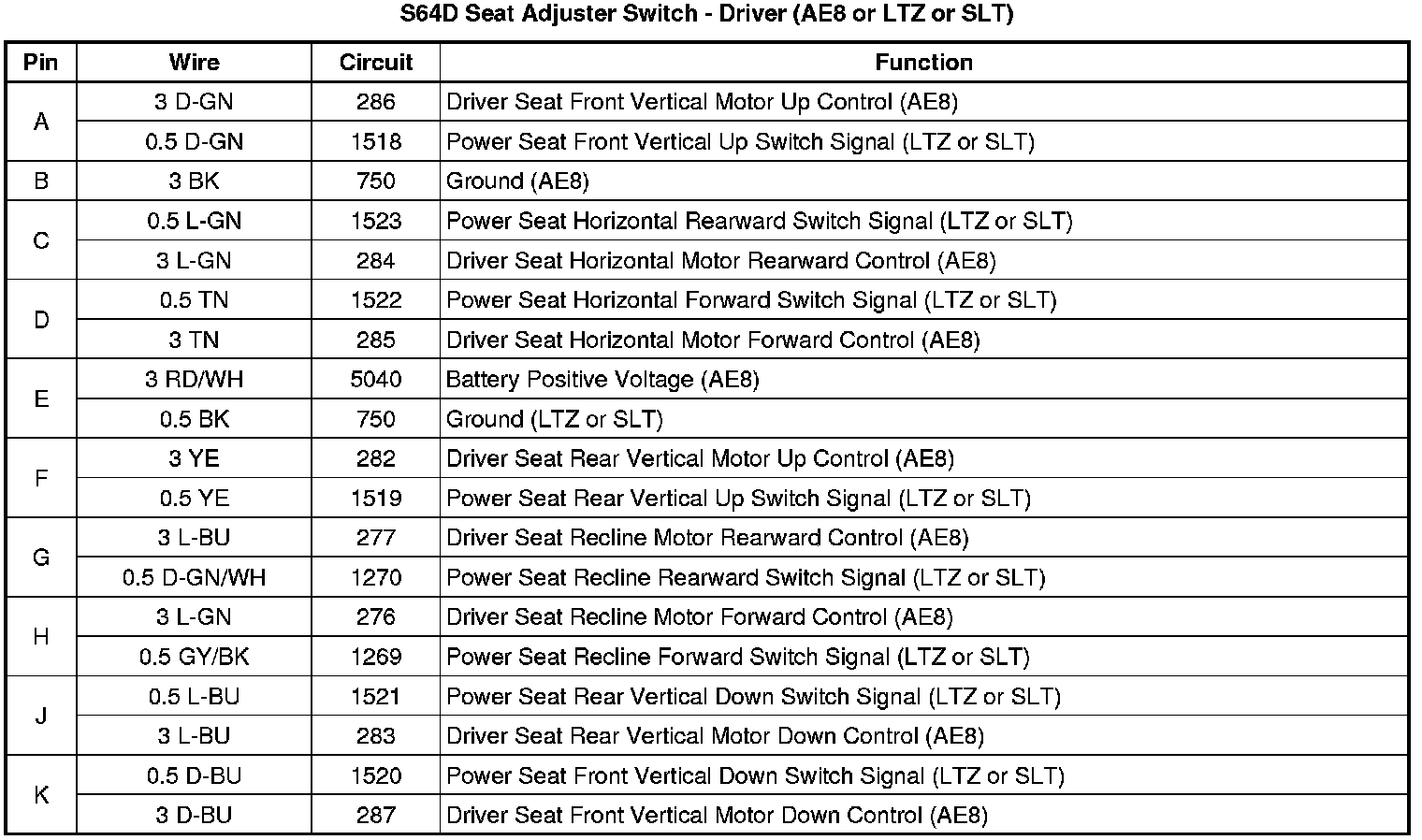

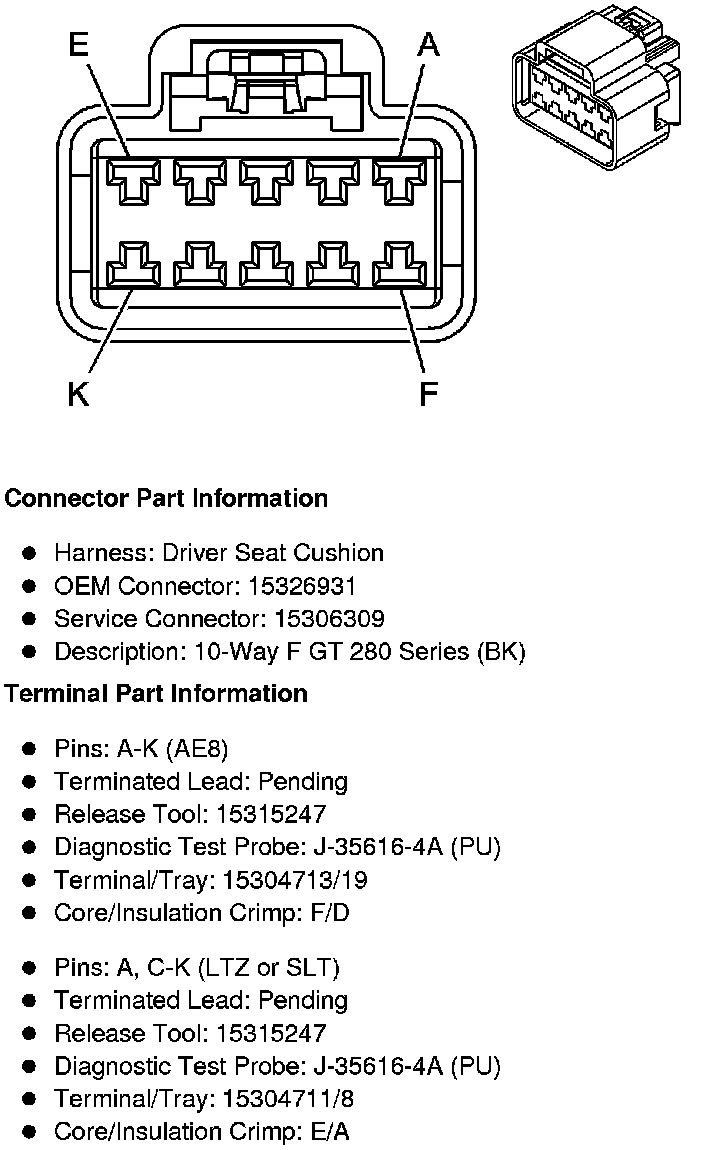

S64D Seat Adjuster Switch - Driver (AE8 or LTZ or SLT)

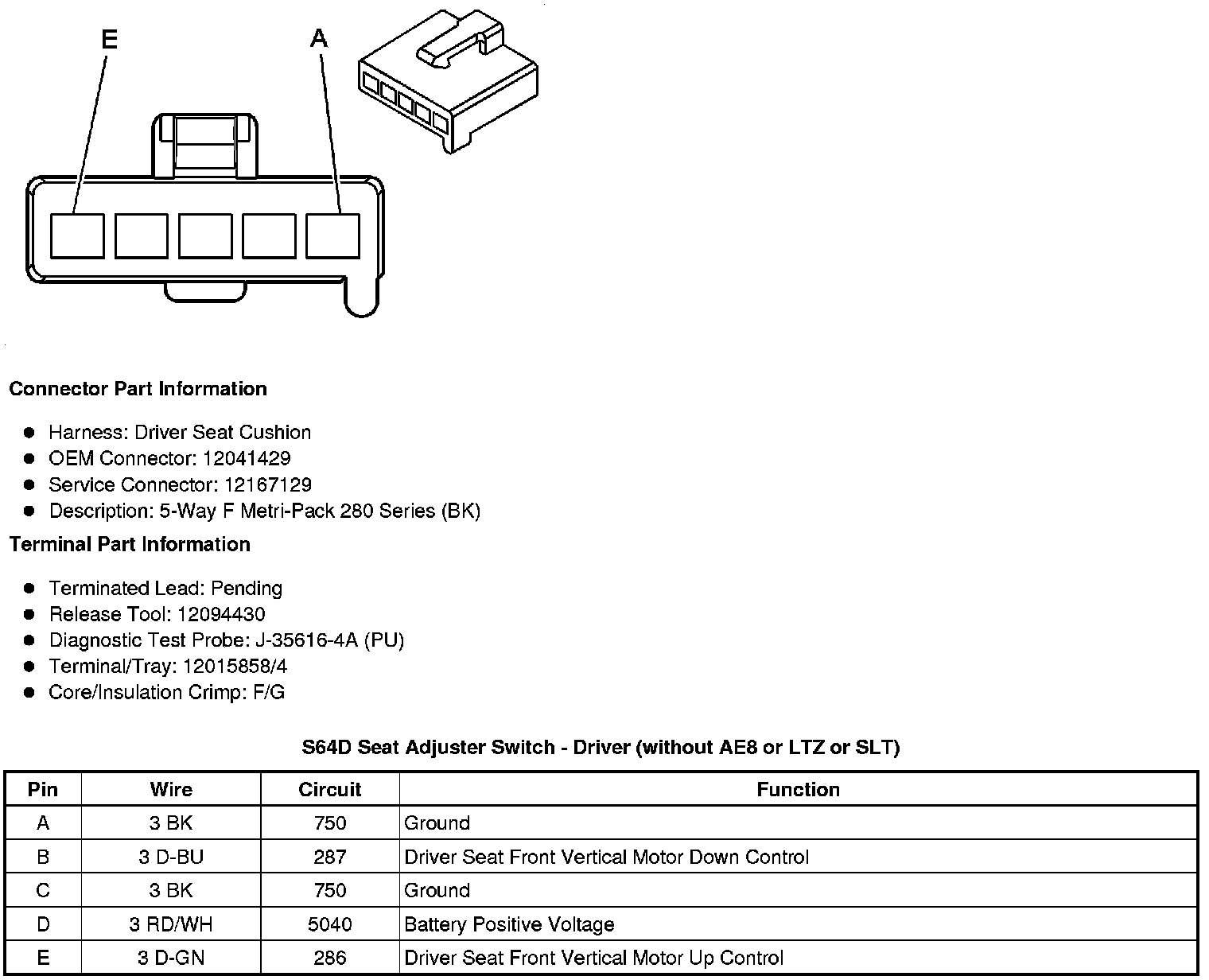

S64D Seat Adjuster Switch - Driver (without AE8 or LTZ or SLT)

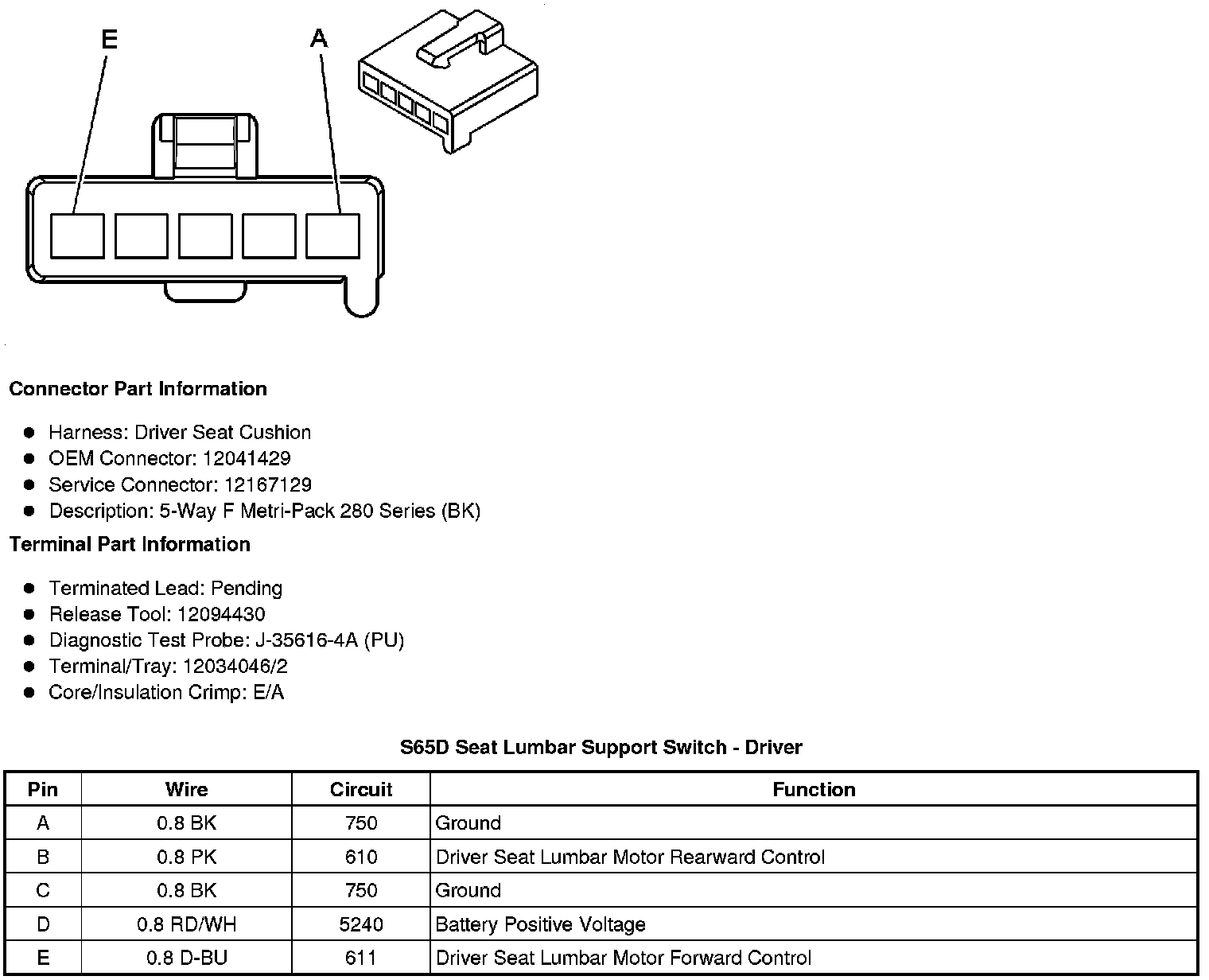

S65D Seat Lumbar Support Switch - Driver
