Starter Motor
M64

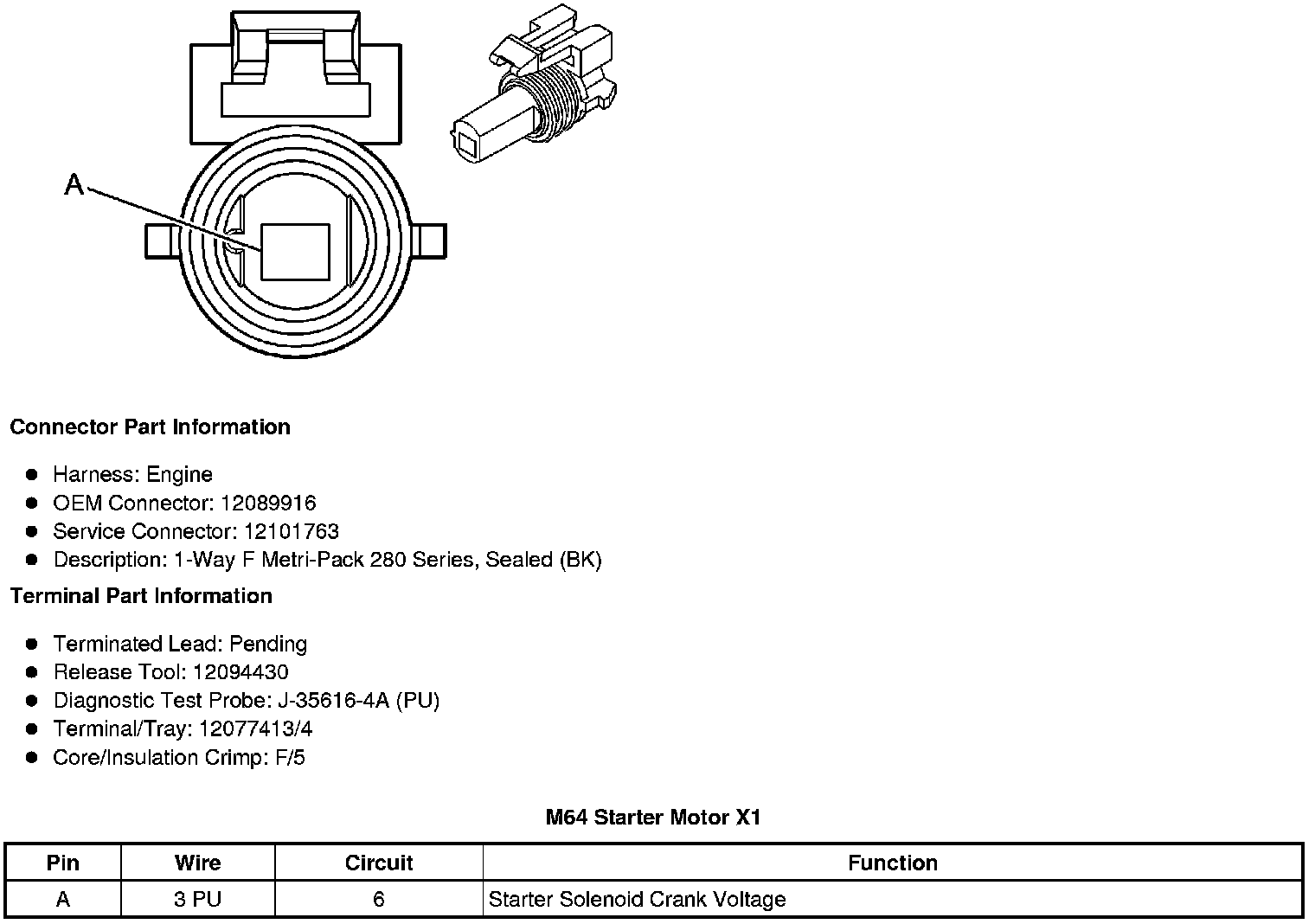

Starter Motor
X1
M64
Starter Motor
X2 (Positive
Battery Cable
) (LAF)
M64
Starter Motor
X2 (Positive
Battery Cable
) (LF1)
M64
Starter Motor
X2 (Generator Harness) (LAF)
M64
Starter Motor
X2 (Generator Harness) (LF1)
