Steering Mounted Controls Transmitter

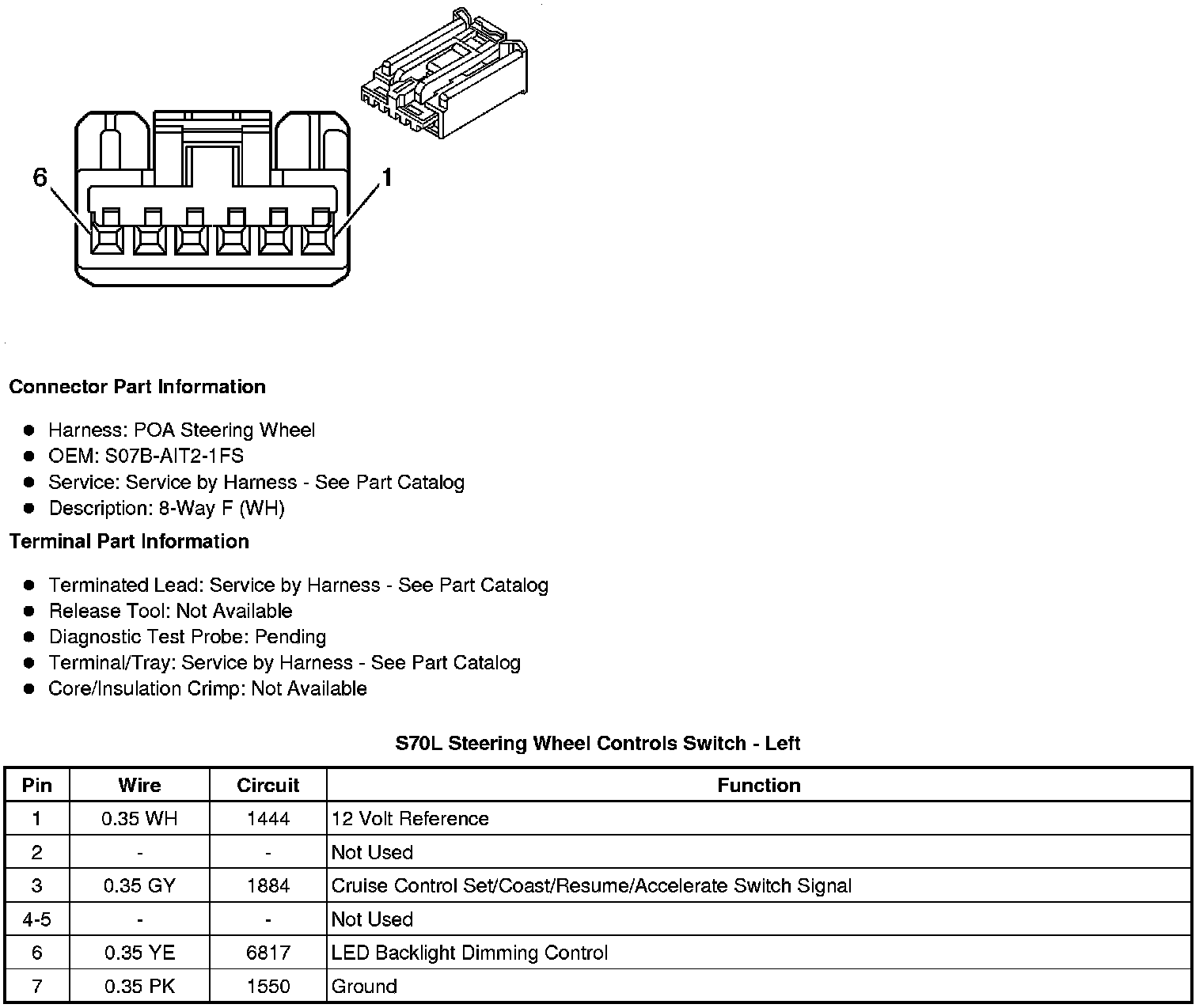

S70L Steering Wheel Controls Switch - Left

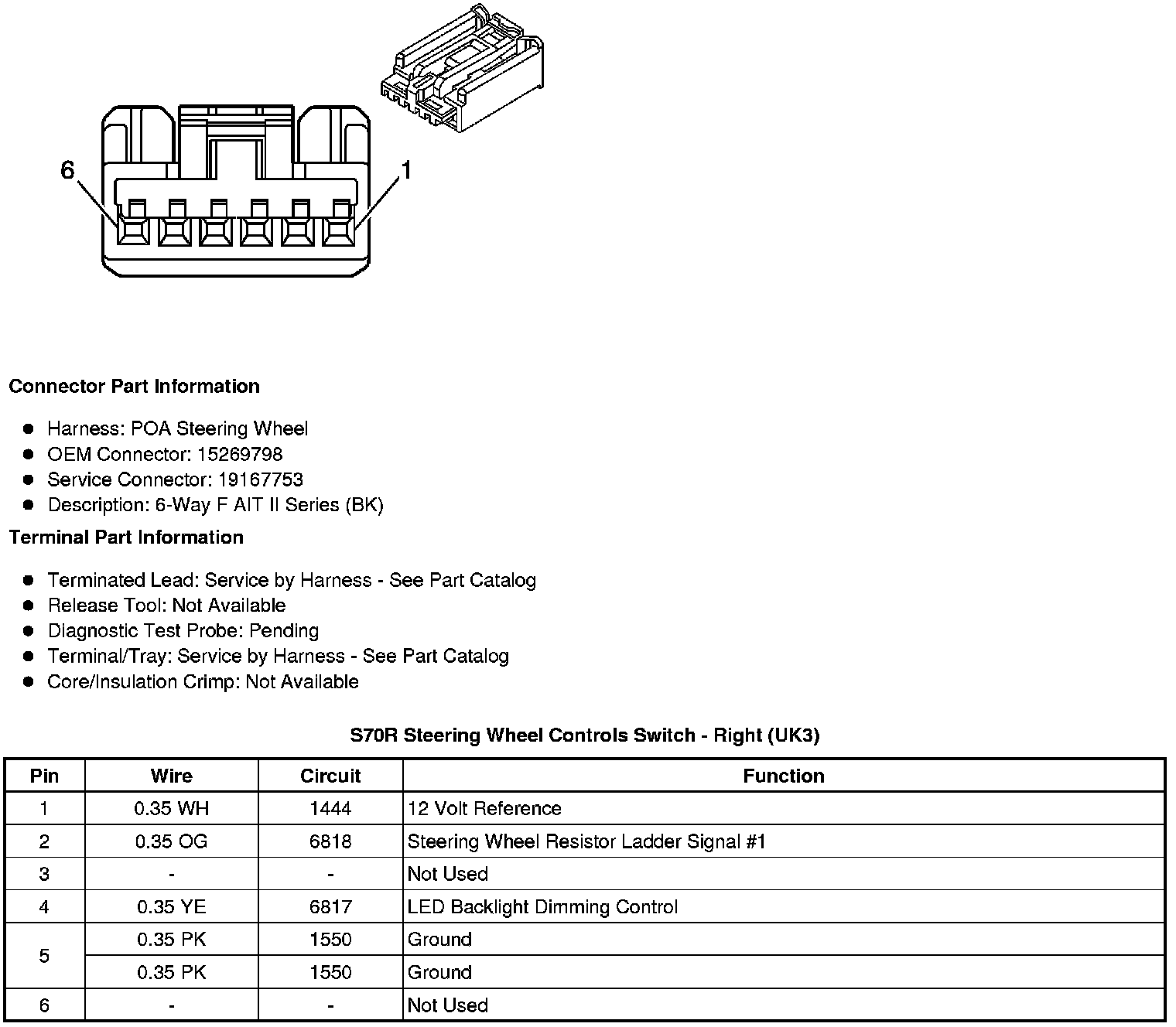

S70R Steering Wheel Controls Switch - Right (UK3)
