Wheel Speed Sensor




B5LF Wheel Speed Sensor - Left Front

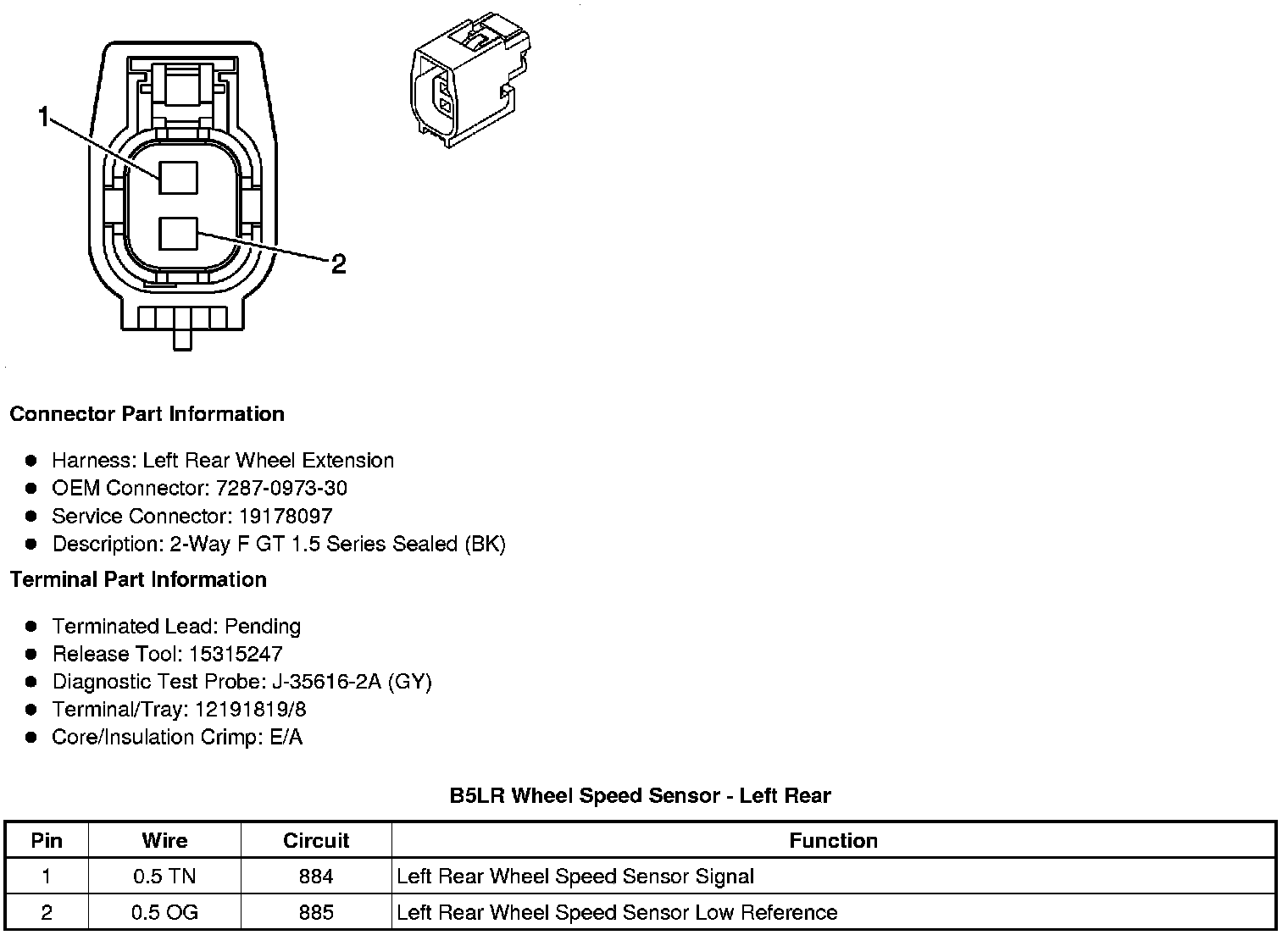

B5LR Wheel Speed Sensor - Left Rear





B5RF Wheel Speed Sensor - Right Front

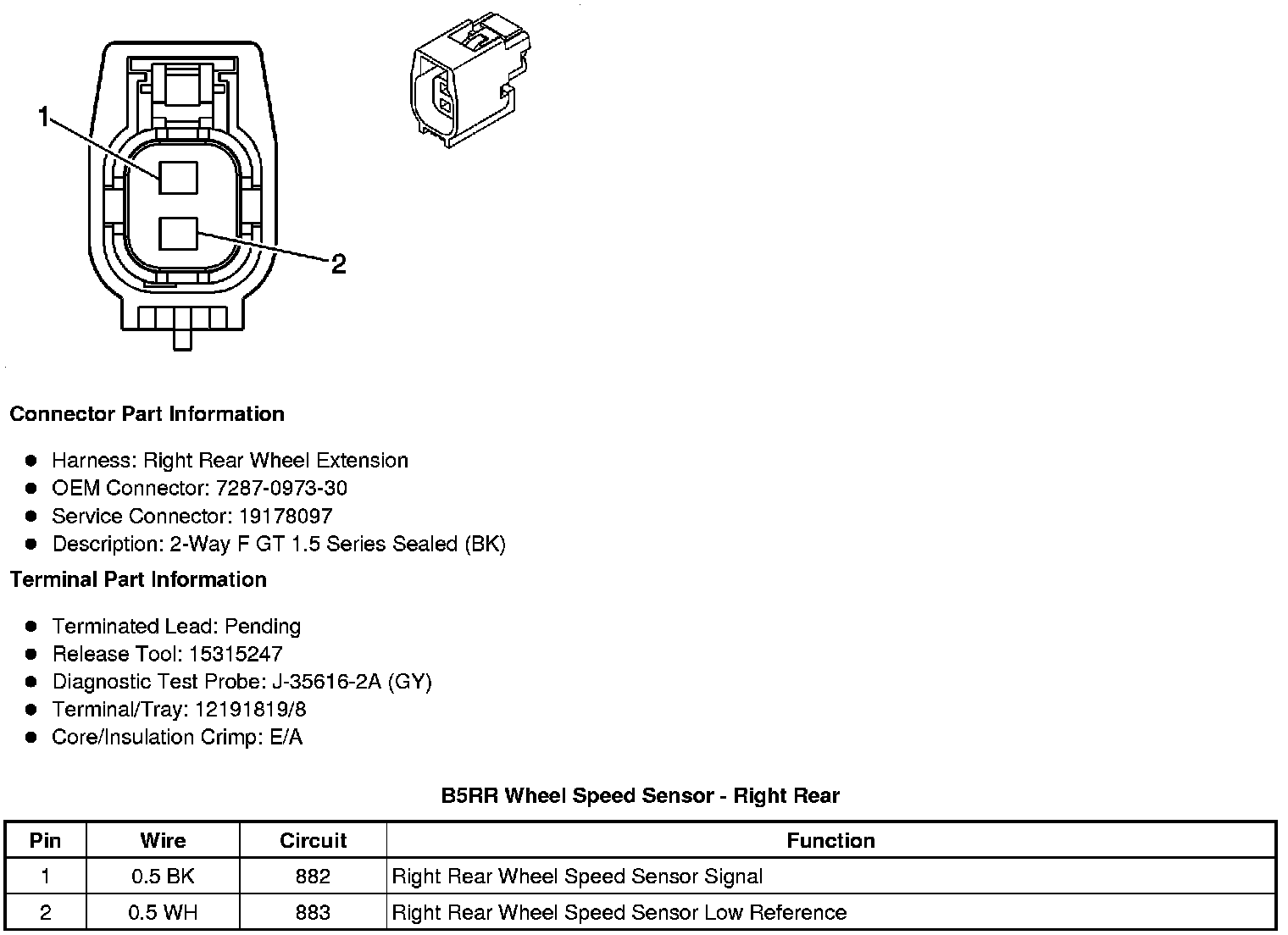

B5RR Wheel Speed Sensor - Right Rear
