Fuse Block - Instrument Panel Label




Electrical Center Identification Views

X51A Fuse Block - Instrument Panel Label (before A6284015)

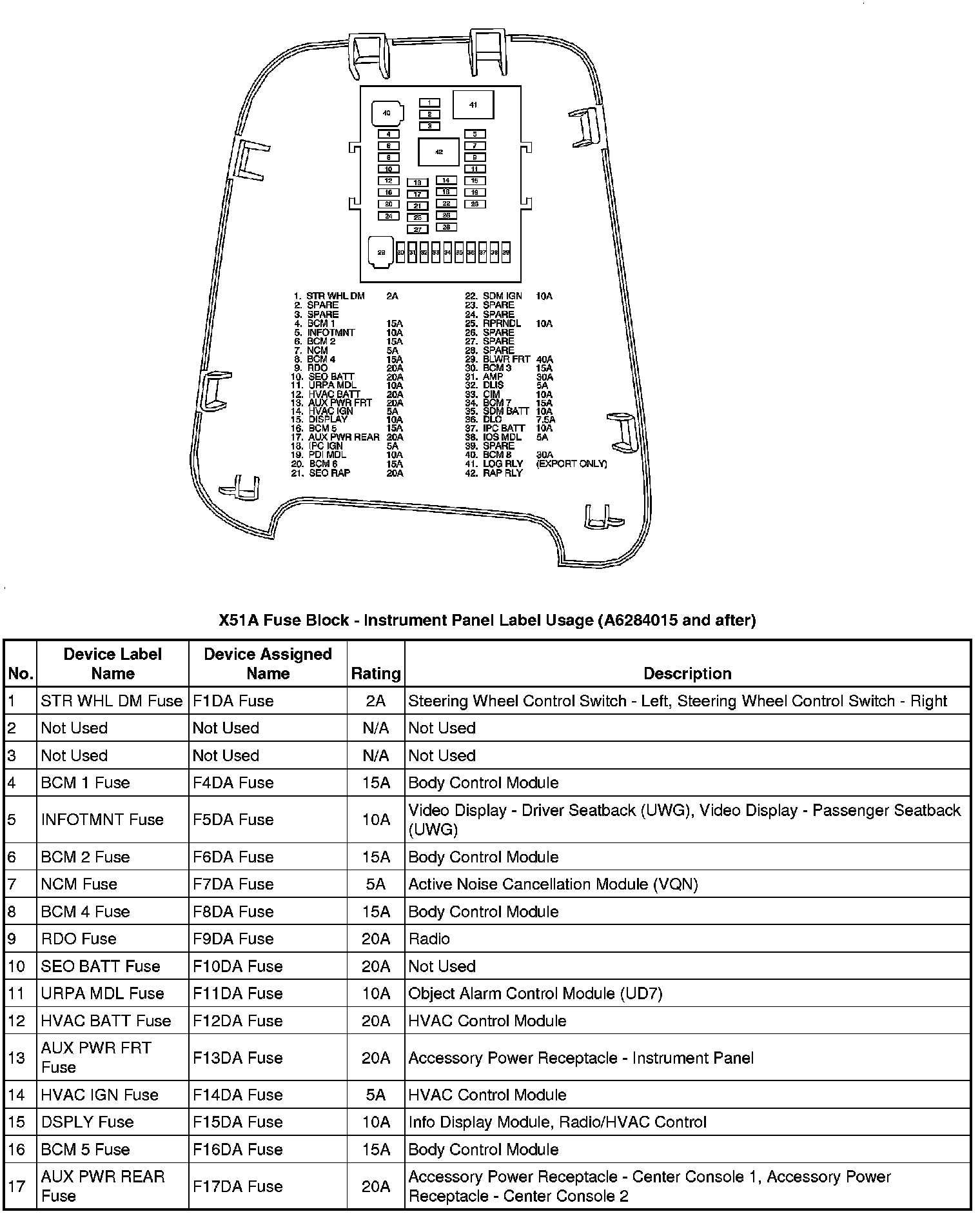

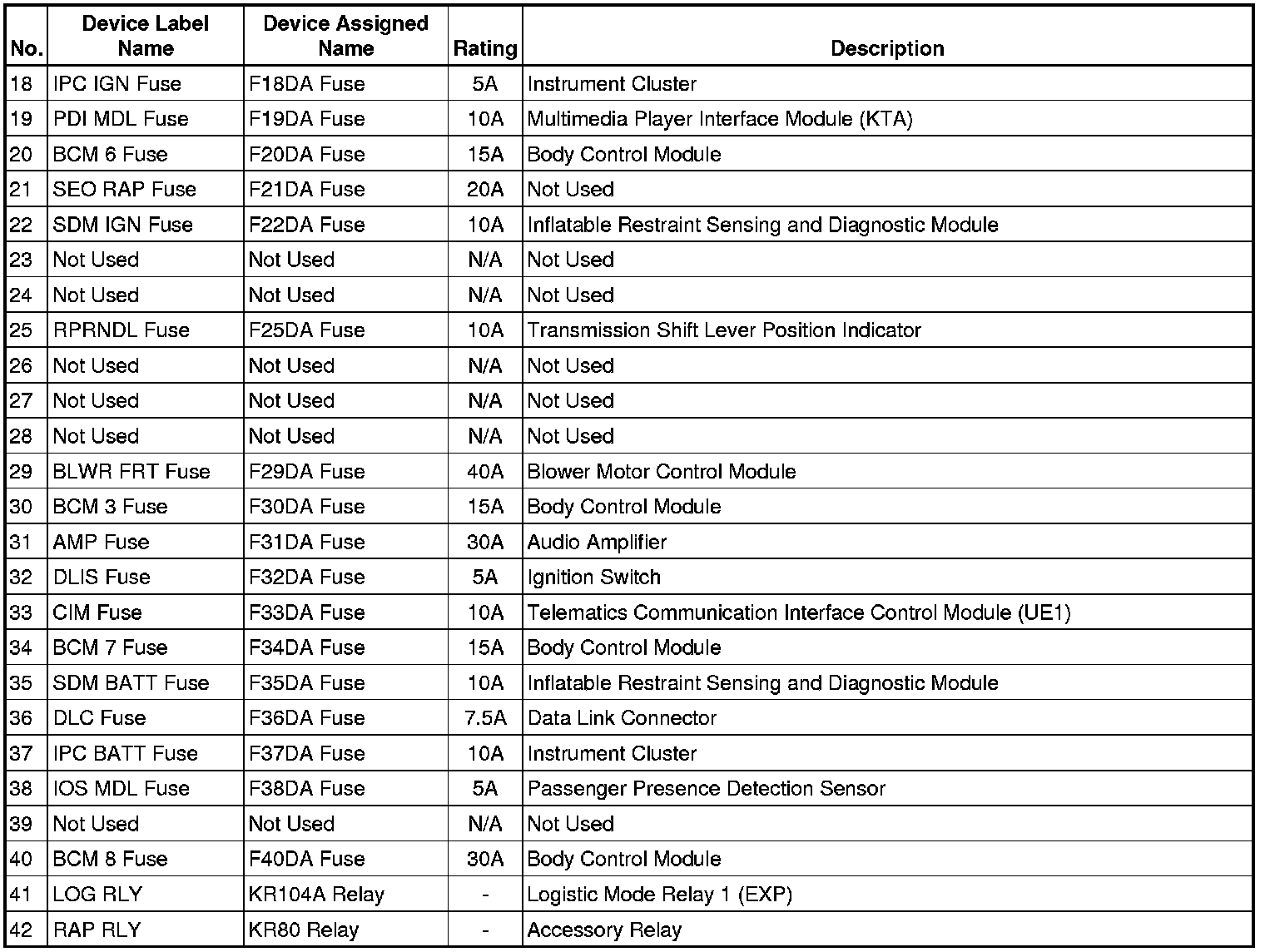

X51A Fuse Block - Instrument Panel Label (A6284015 and after)









X51A Fuse Block - Instrument Panel, Top View





X51A Fuse Block - Instrument Panel, Bottom View

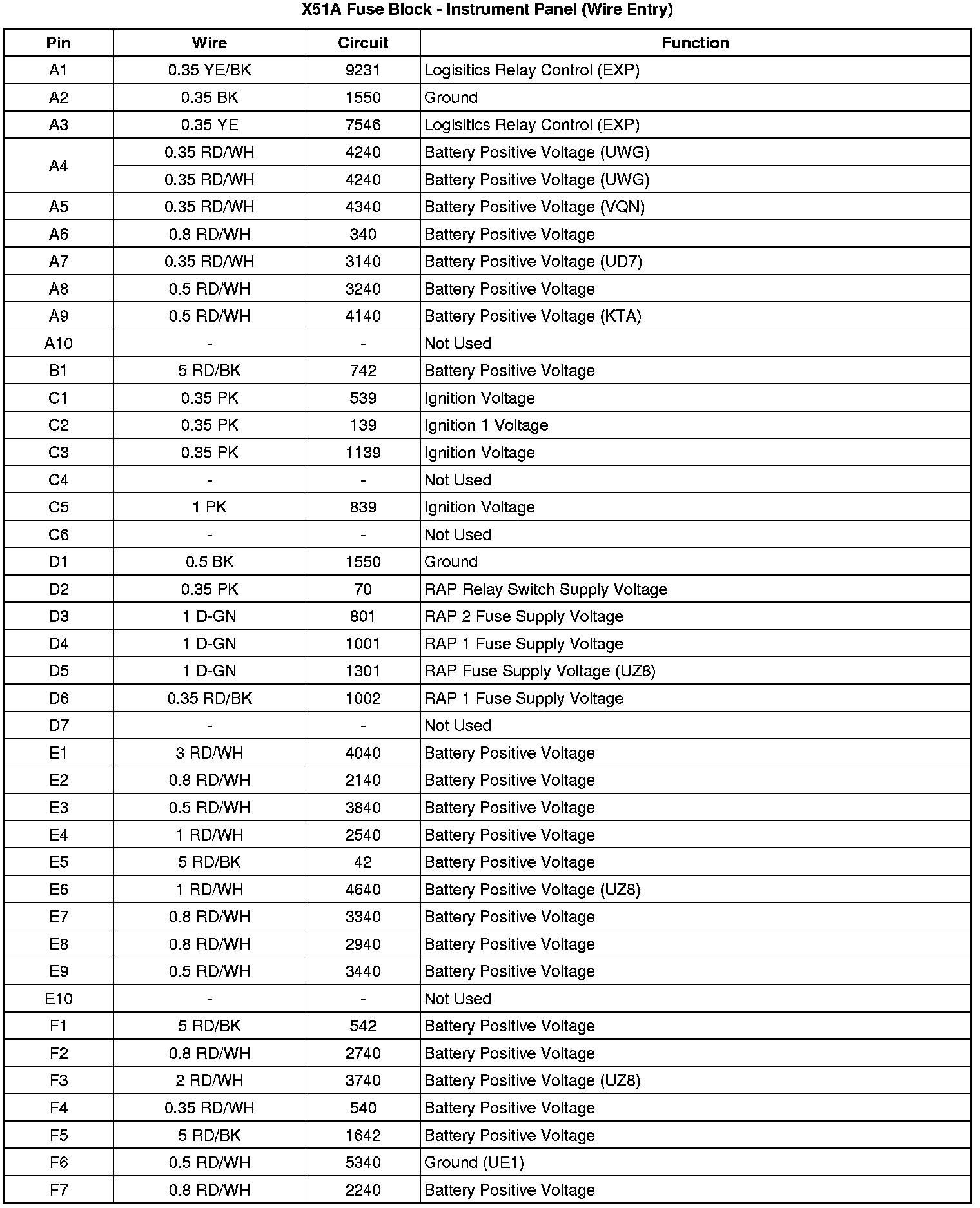

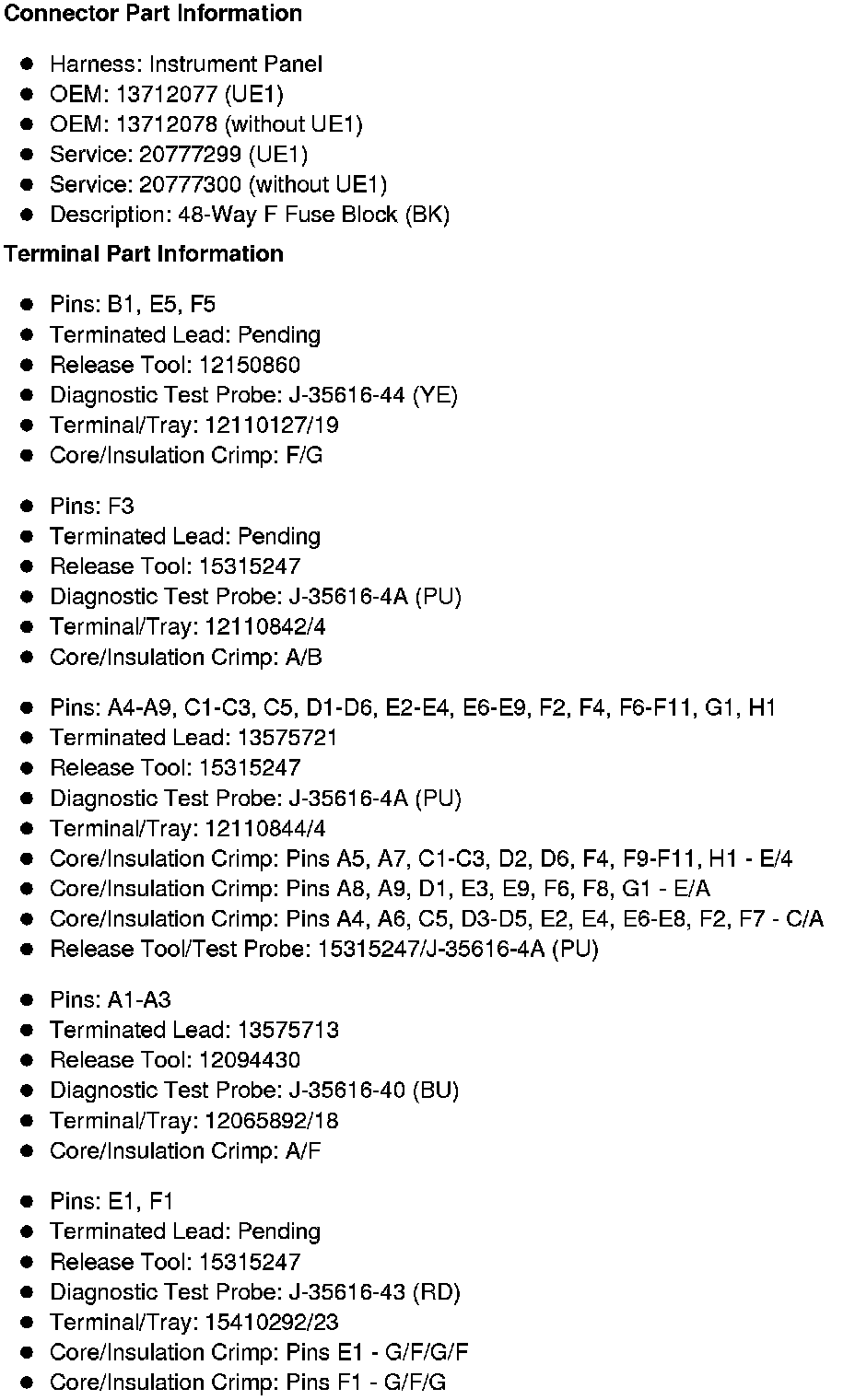

X51A Fuse Block - Instrument Panel Wire Entry
