6L50/6L80/6L90 - Automatic Transmission

Disassembled Views

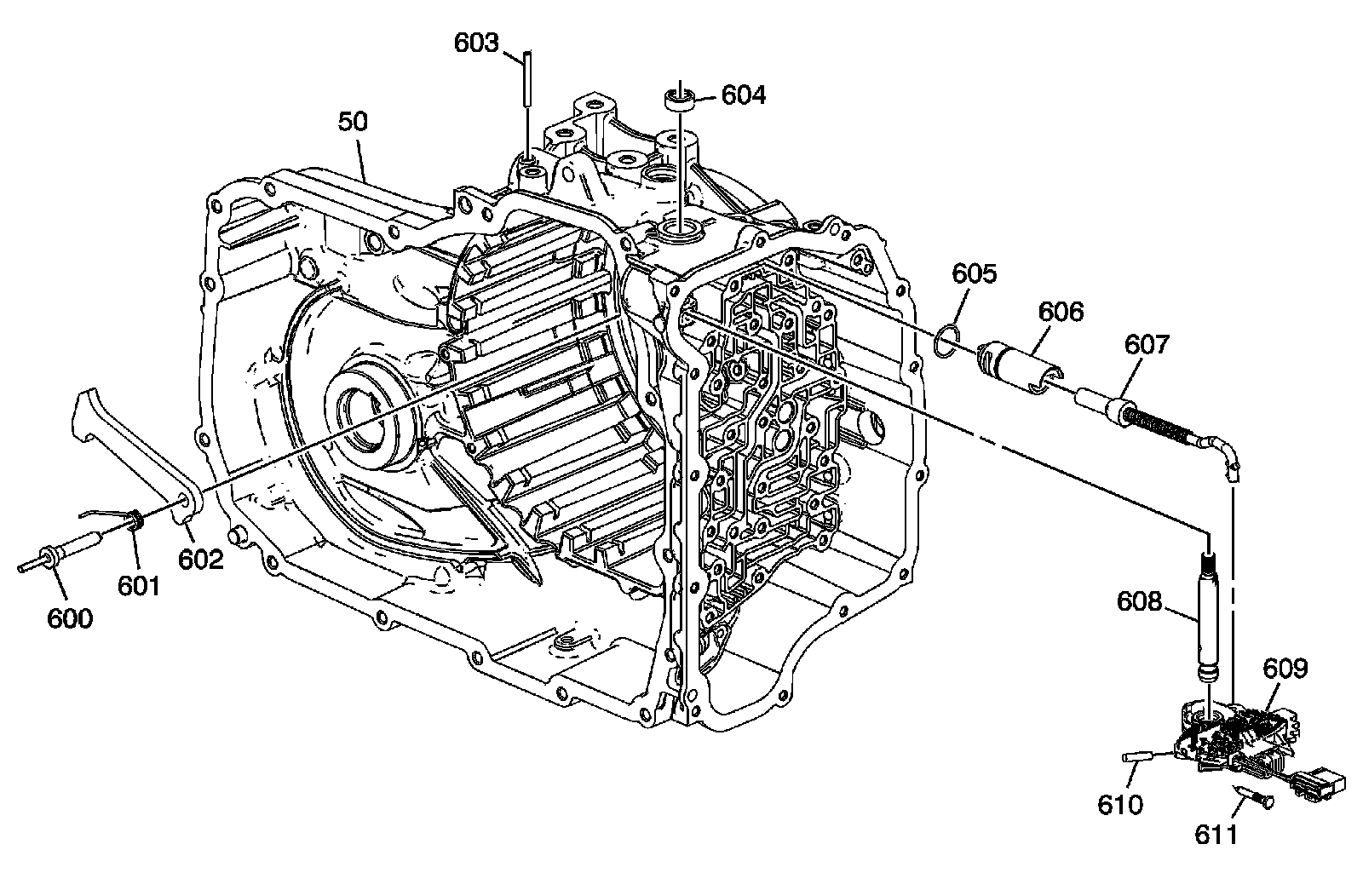

Park System Components




50 - A/Trans Case
600 - Park Pawl Shaft
601 - Park Pawl Spring
602 - Park Pawl
603 - Park Pawl Actuator Guide Pin
604 - Manual Shift Shaft Seal
605 - Park Pawl Actuator Guide Seal
606 - Park Pawl Actuator Guide
607 - Park Pawl Actuator Assembly
608 - Manual Shift Detent Lever Shaft
609 - Manual Shift Detent (w/Shaft Position Switch) Lever Assembly
610 - Manual Shift Detent Lever Pin
611 - Manual Shift Shaft Pin
