System Diagram

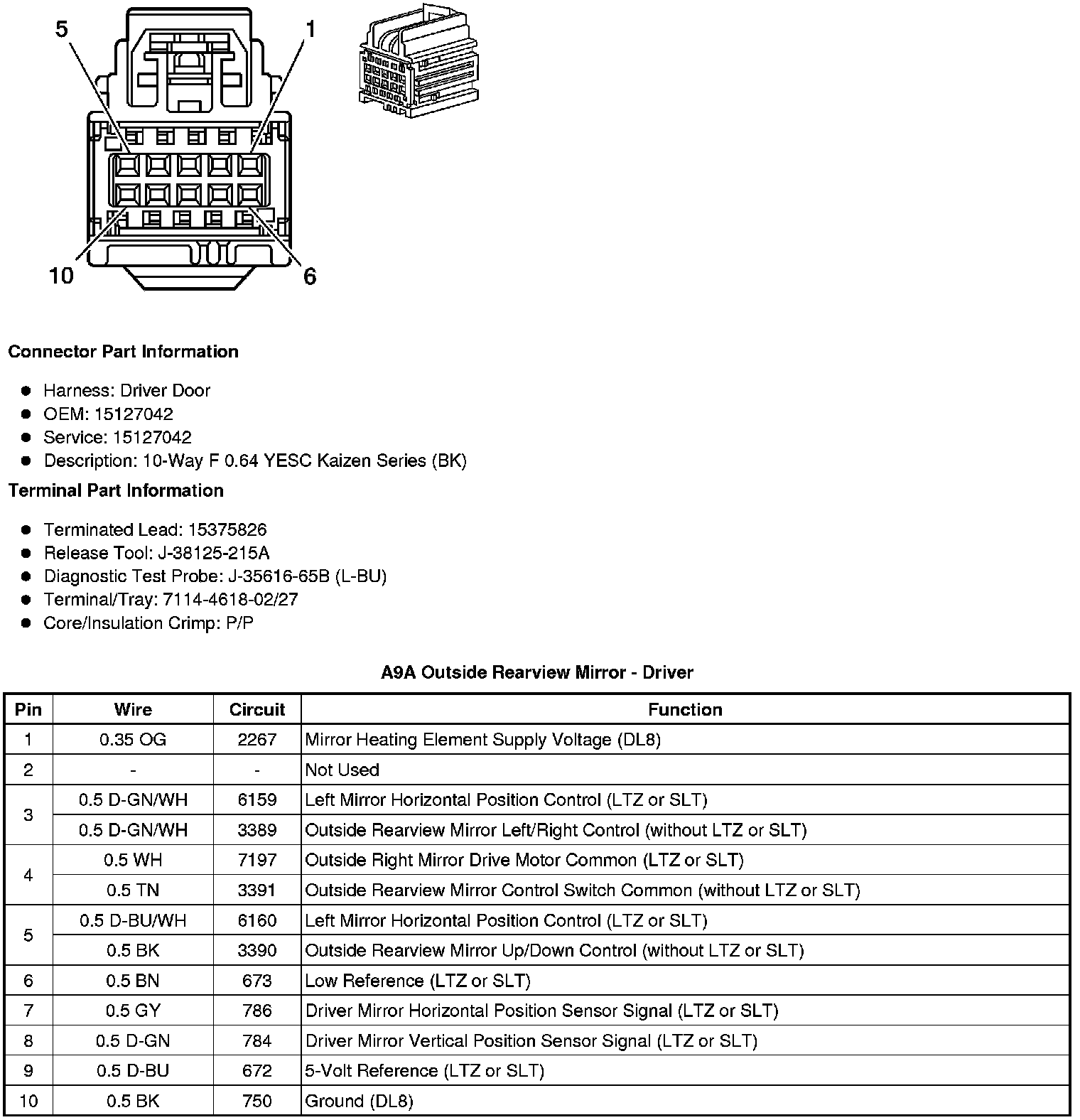

A9A Outside Rearview Mirror - Driver





A9B Outside Rearview Mirror - Passenger

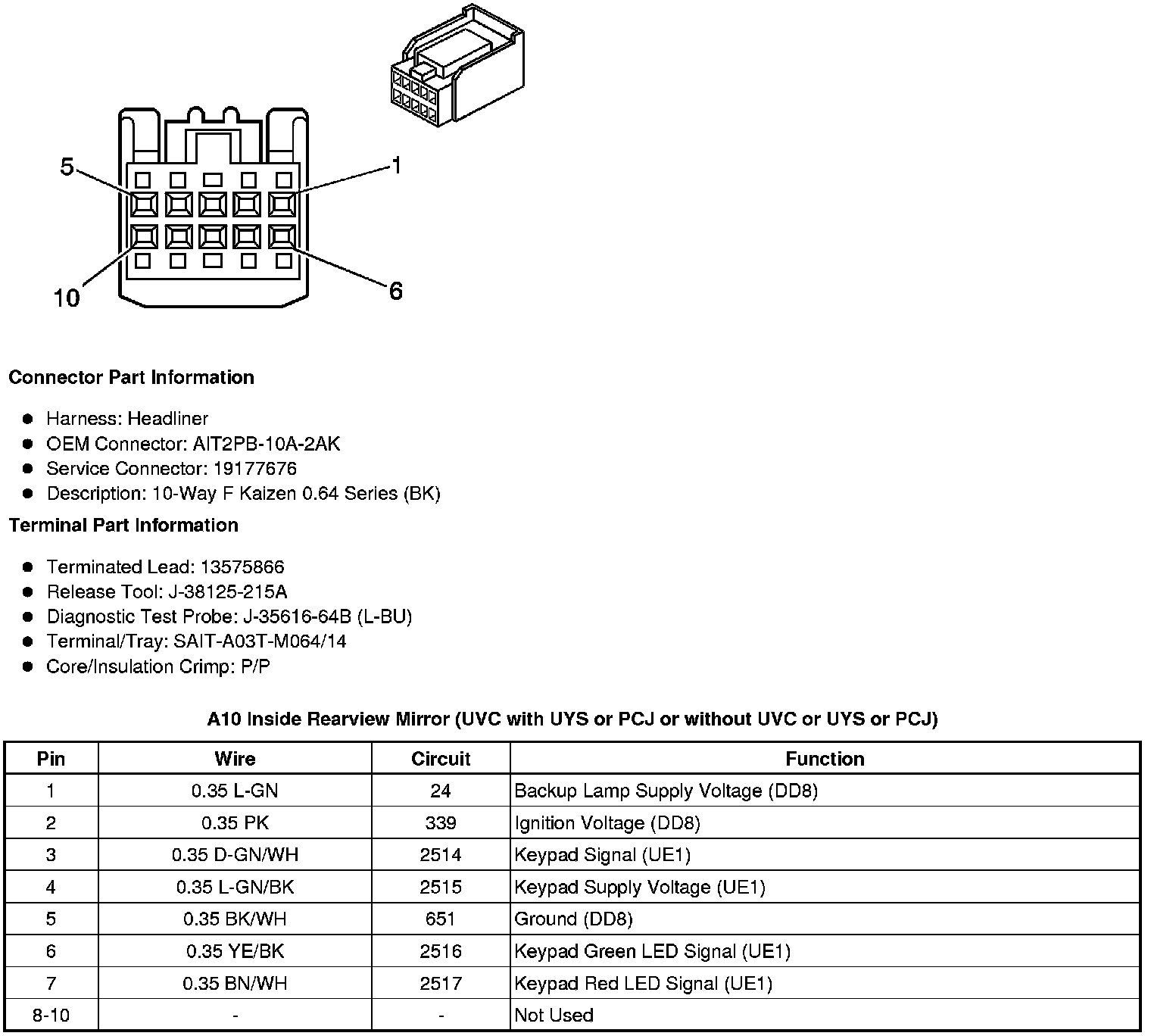

A10 Inside Rearview Mirror (UVC with UYS or PCJ or without UVC or UYS or PCJ)

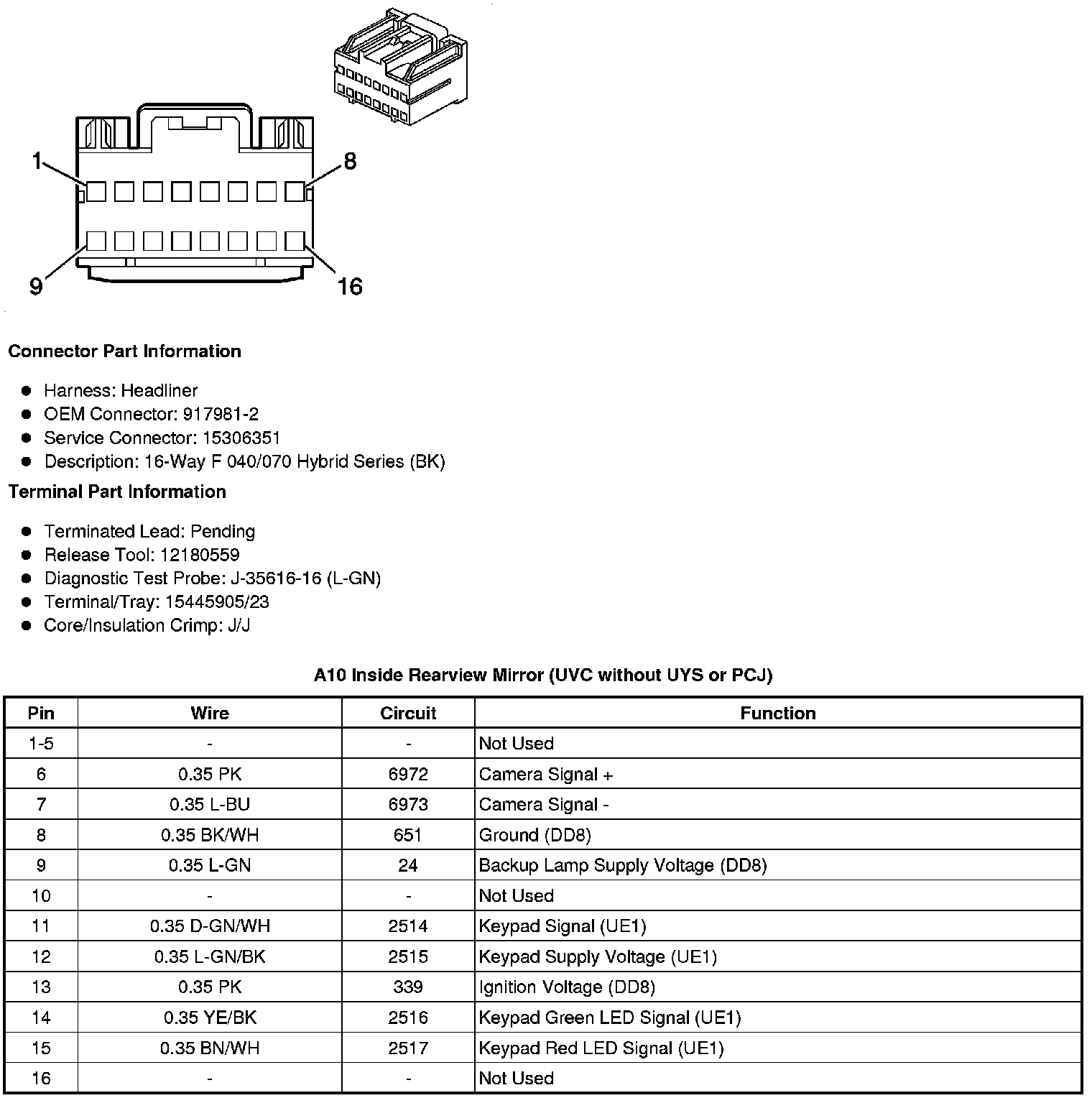

A10 Inside Rearview Mirror (UVC without UYS or PCJ)
