Air Flow Meter/Sensor: Service and Repair

Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Removal Procedure

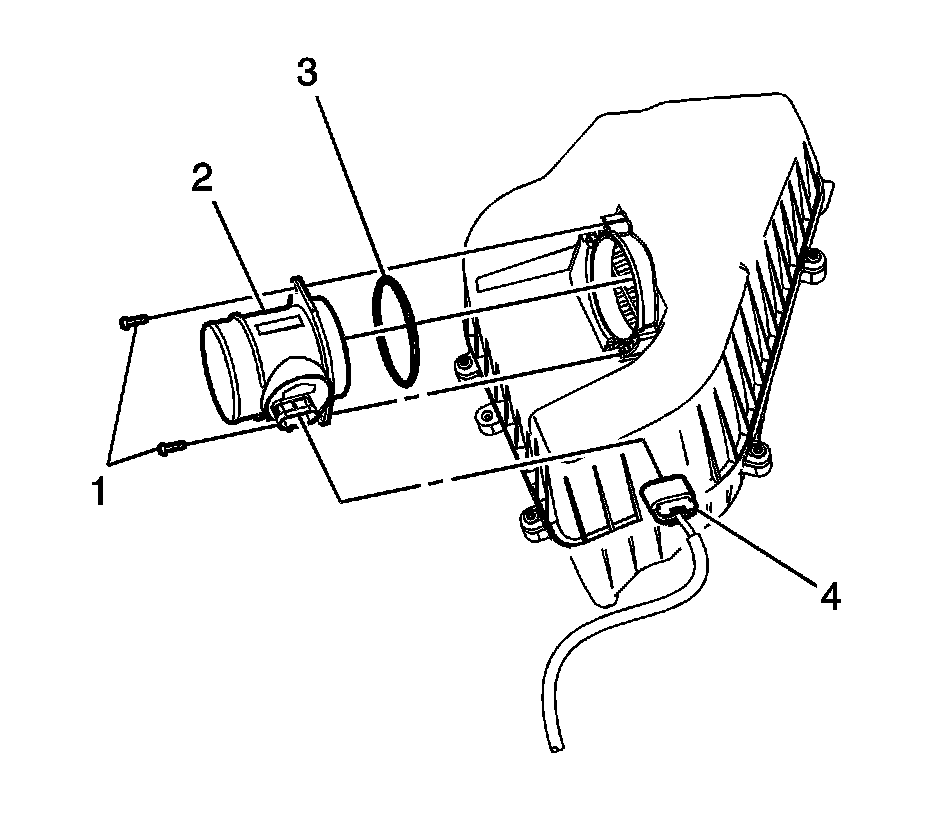

1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Service and Repair).
2. Disconnect the engine wiring harness electrical connector (4) from the mass air flow (MAF)/intake air temperature (IAT) sensor.
3. Remove the MAF/IAT sensor screws (1).
4. Remove the MAF/IAT sensor (2) from the air cleaner assembly.
5. Remove the MAF/IAT sensor seal (3).

Installation Procedure




1. Install the MAF/IAT sensor seal (3) onto the MAF/IAT sensor.
2. Install the MAF/IAT sensor (2) to the air cleaner assembly.

Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the MAF/IAT sensor screws (1).

Tighten the screws to 4 Nm (35 lb in).

4. Connect the engine wiring harness electrical connector (4) to the MAF/IAT sensor.
5. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (Service and Repair).
