Map Light




Component Connector End Views

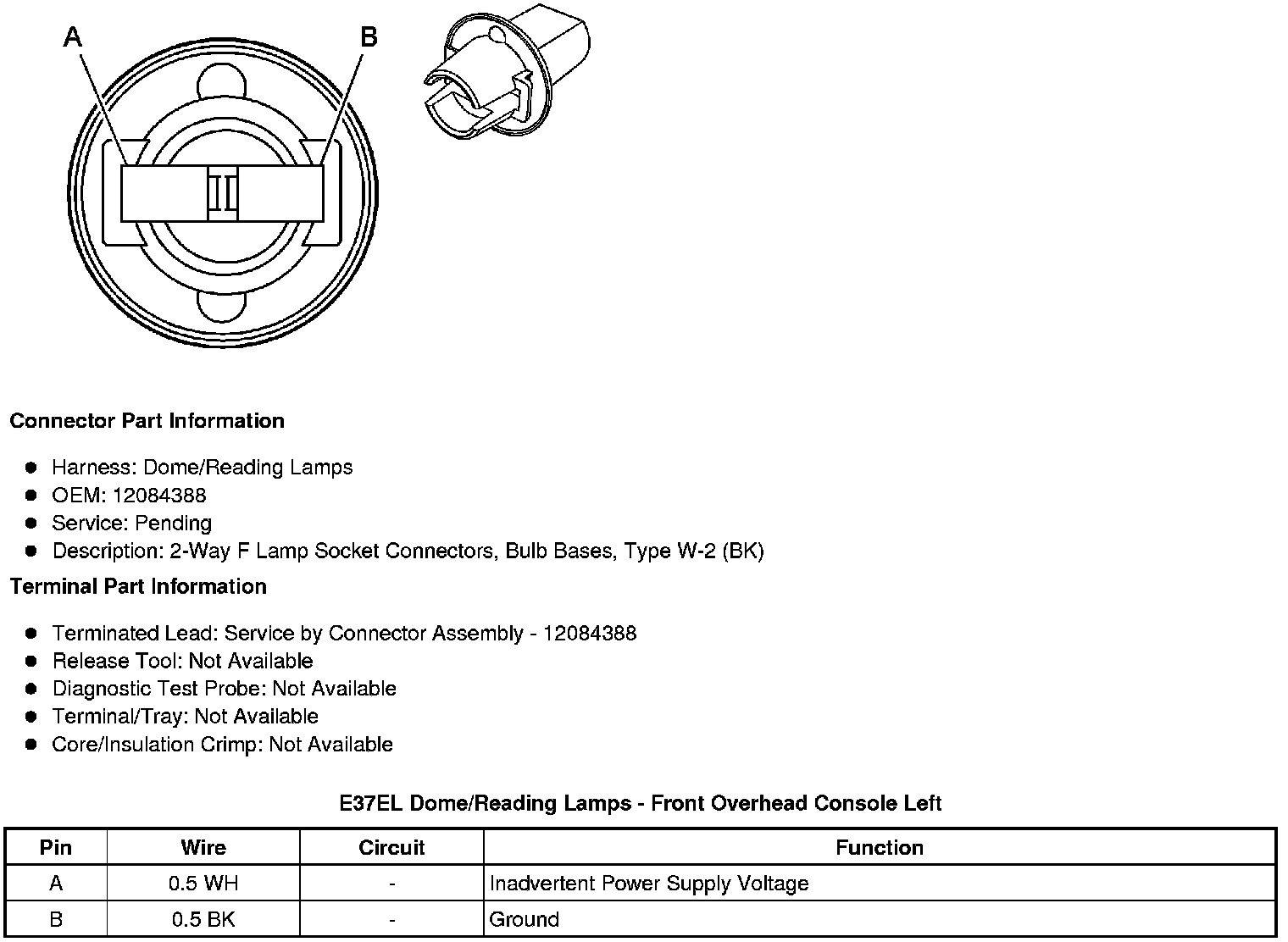

E37EL Dome/Reading Lamps - Front Overhead Console Left

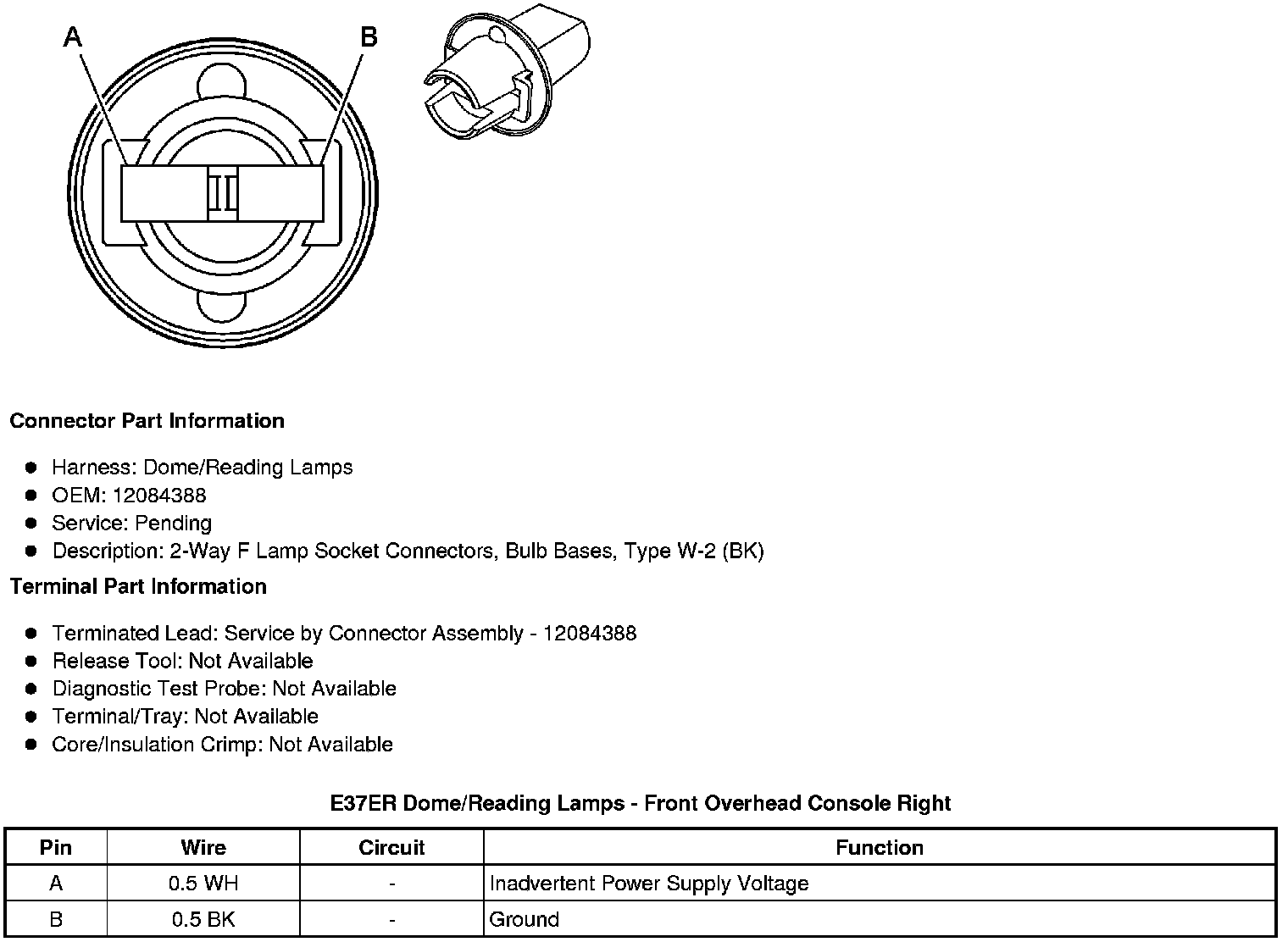

E37ER Dome/Reading Lamps - Front Overhead Console Right

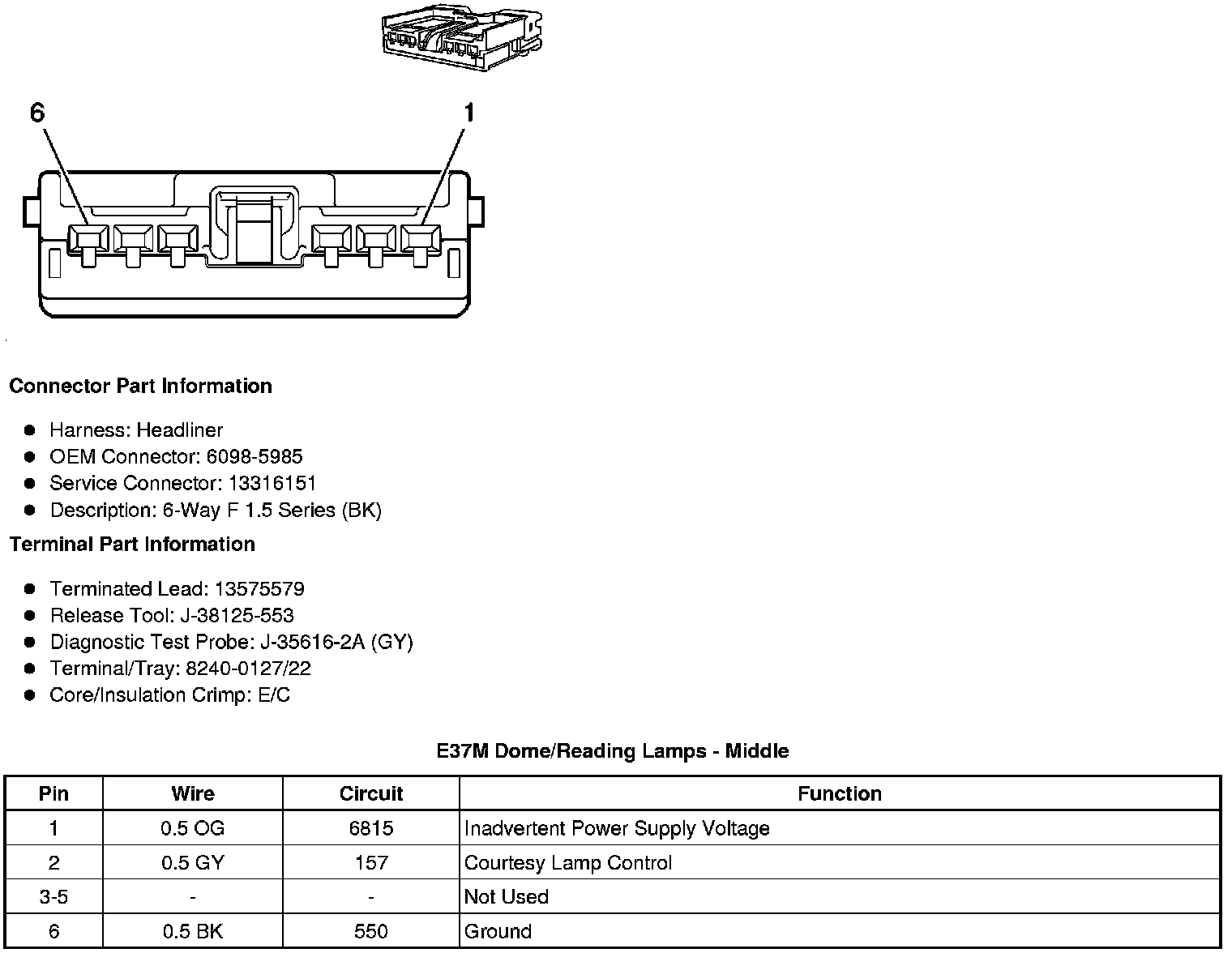

E37M Dome/Reading Lamps - Middle

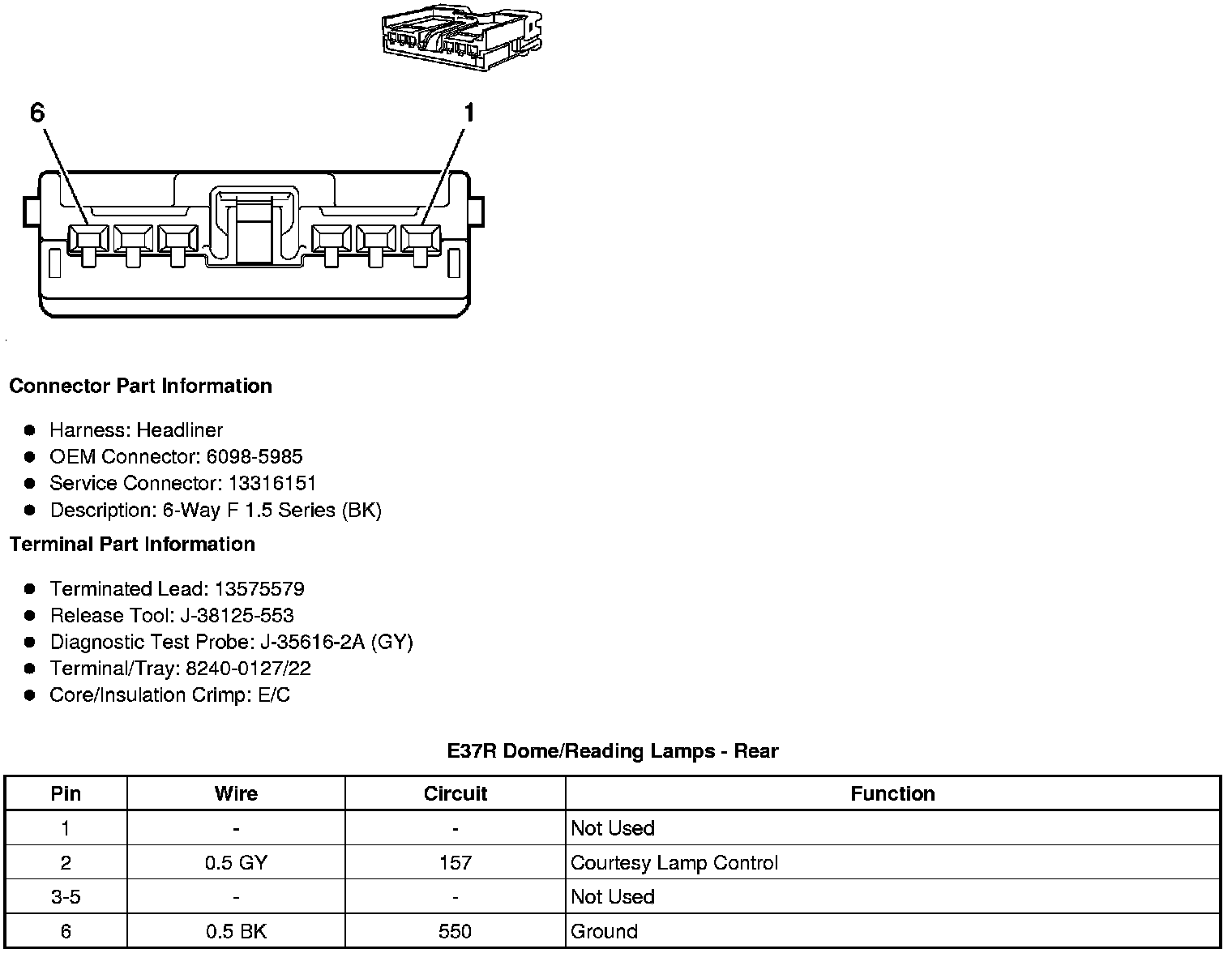

E37R Dome/Reading Lamps - Rear
