Memory Positioning Switch

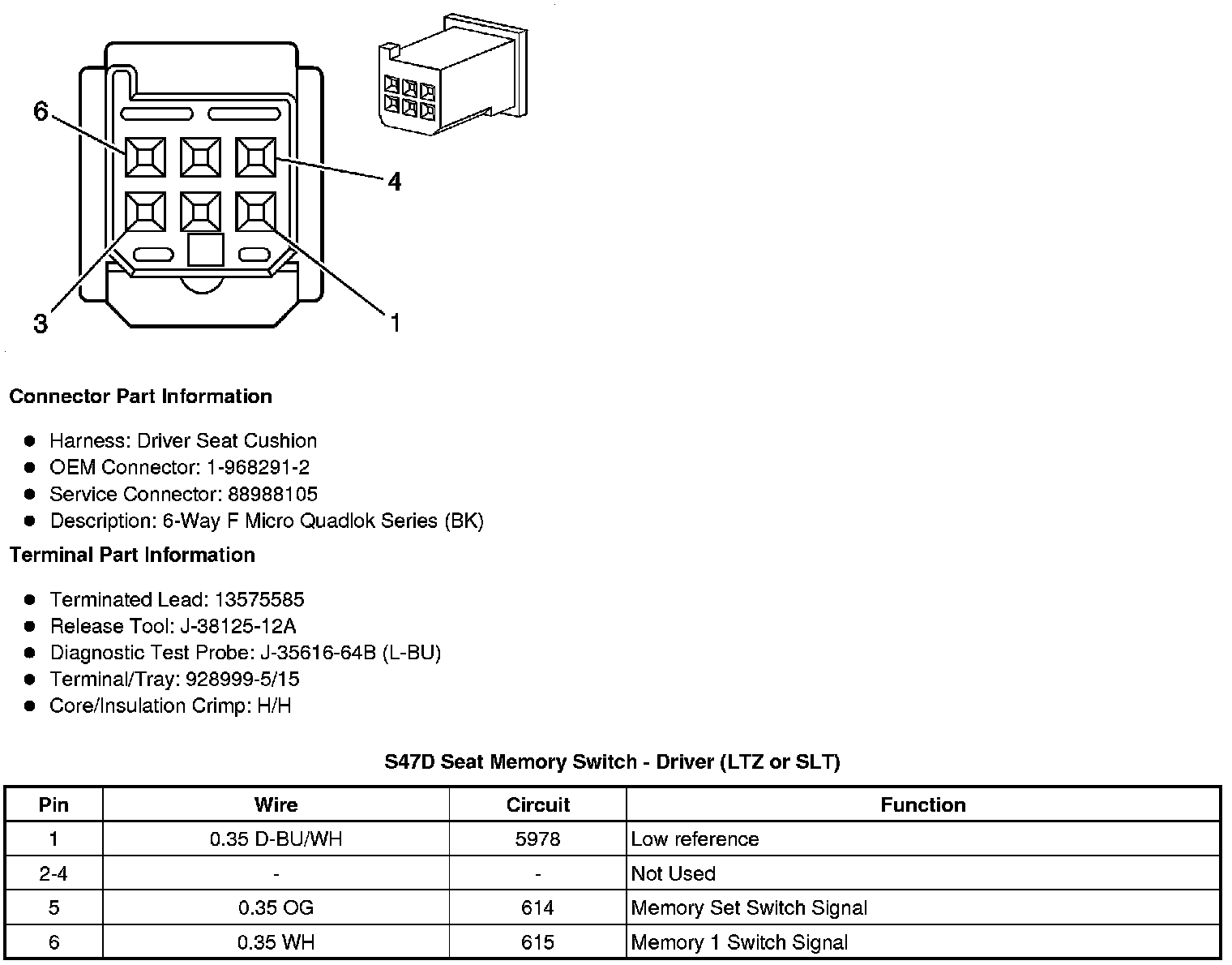

Component Connector End Views
S47D Seat Memory Switch - Driver (LTZ or SLT)
