Turn Signal Bulb




Component Connector End Views

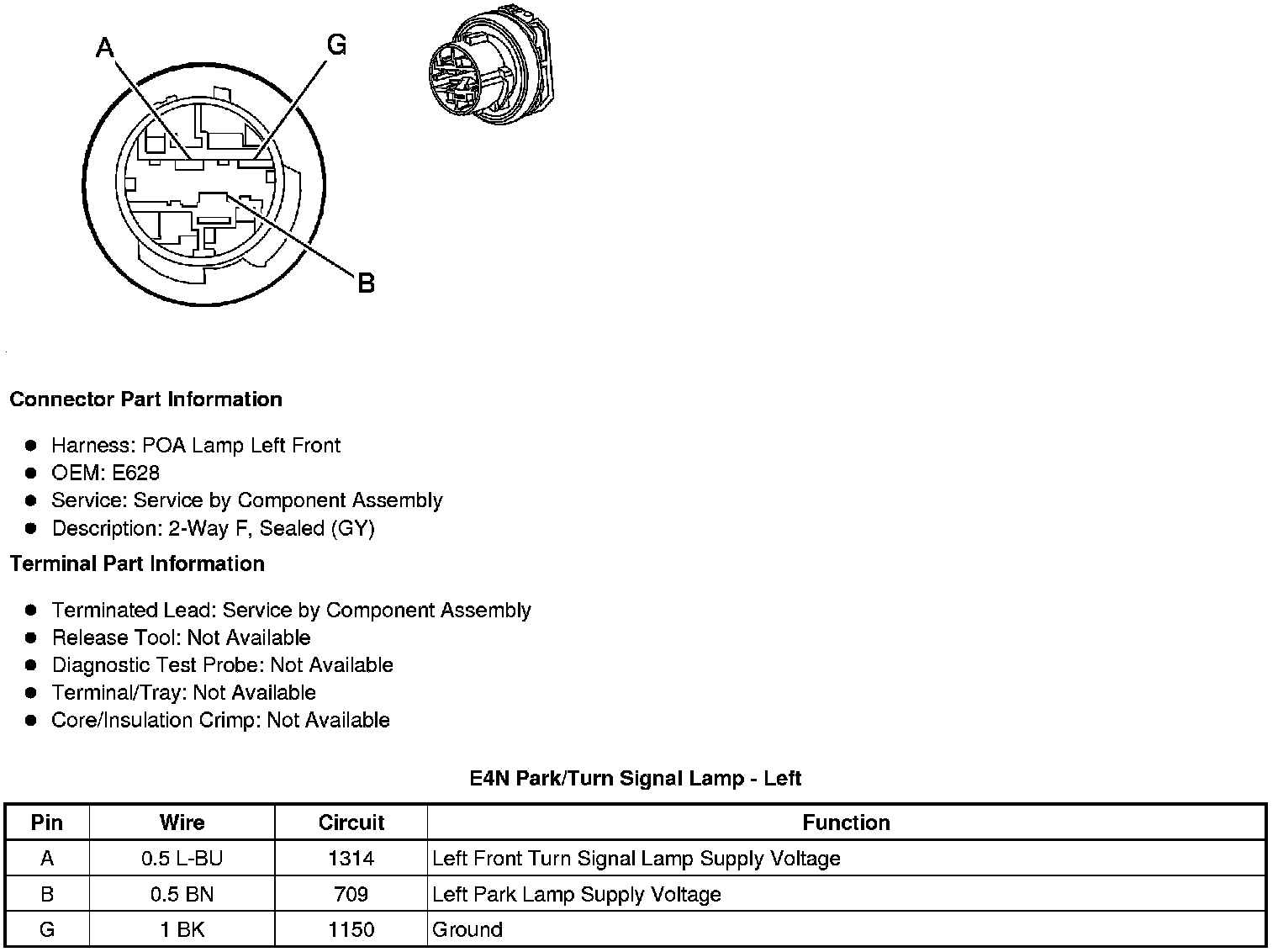

E4N Park/Turn Signal Lamp - Left

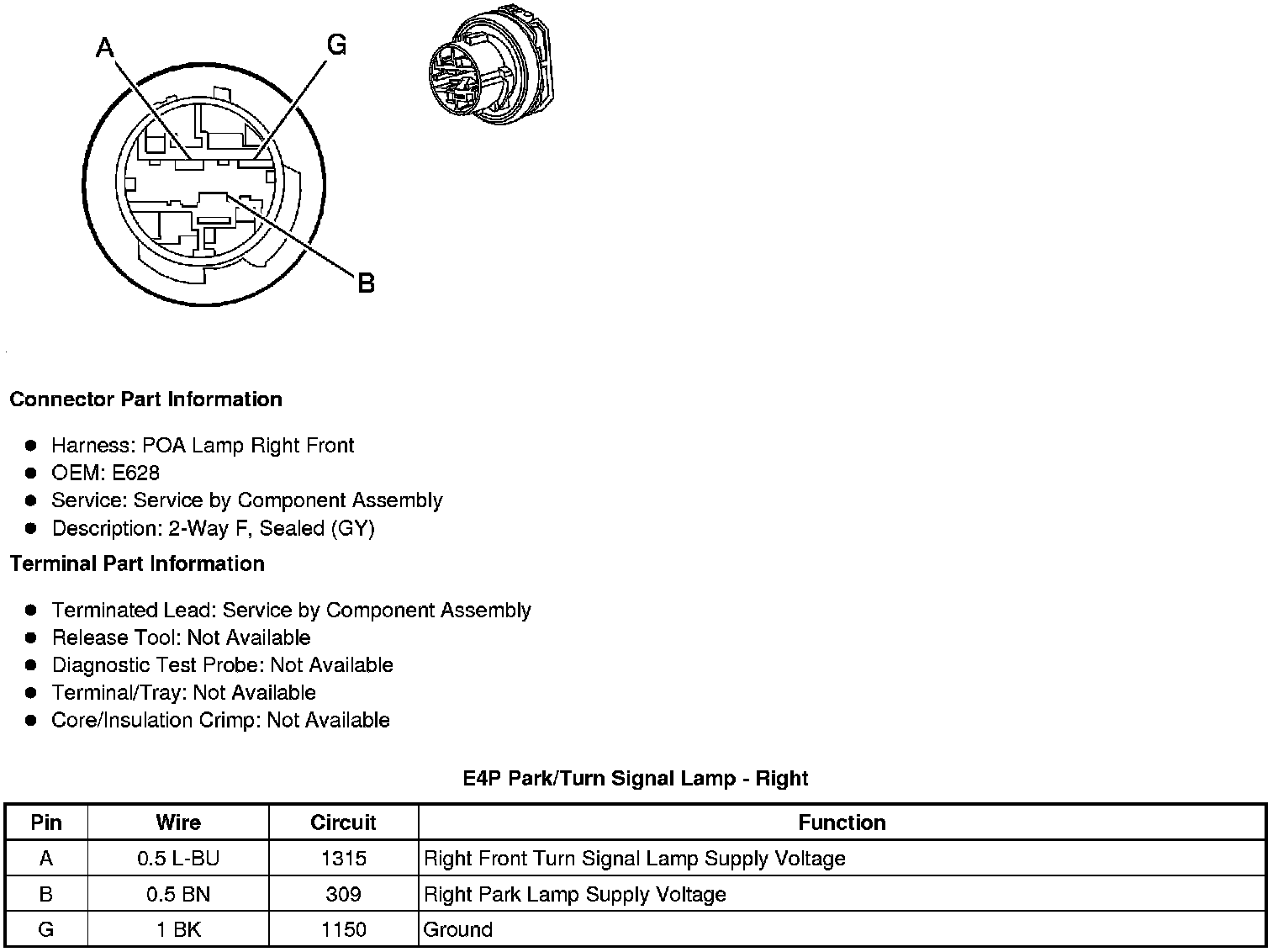

E4P Park/Turn Signal Lamp - Right

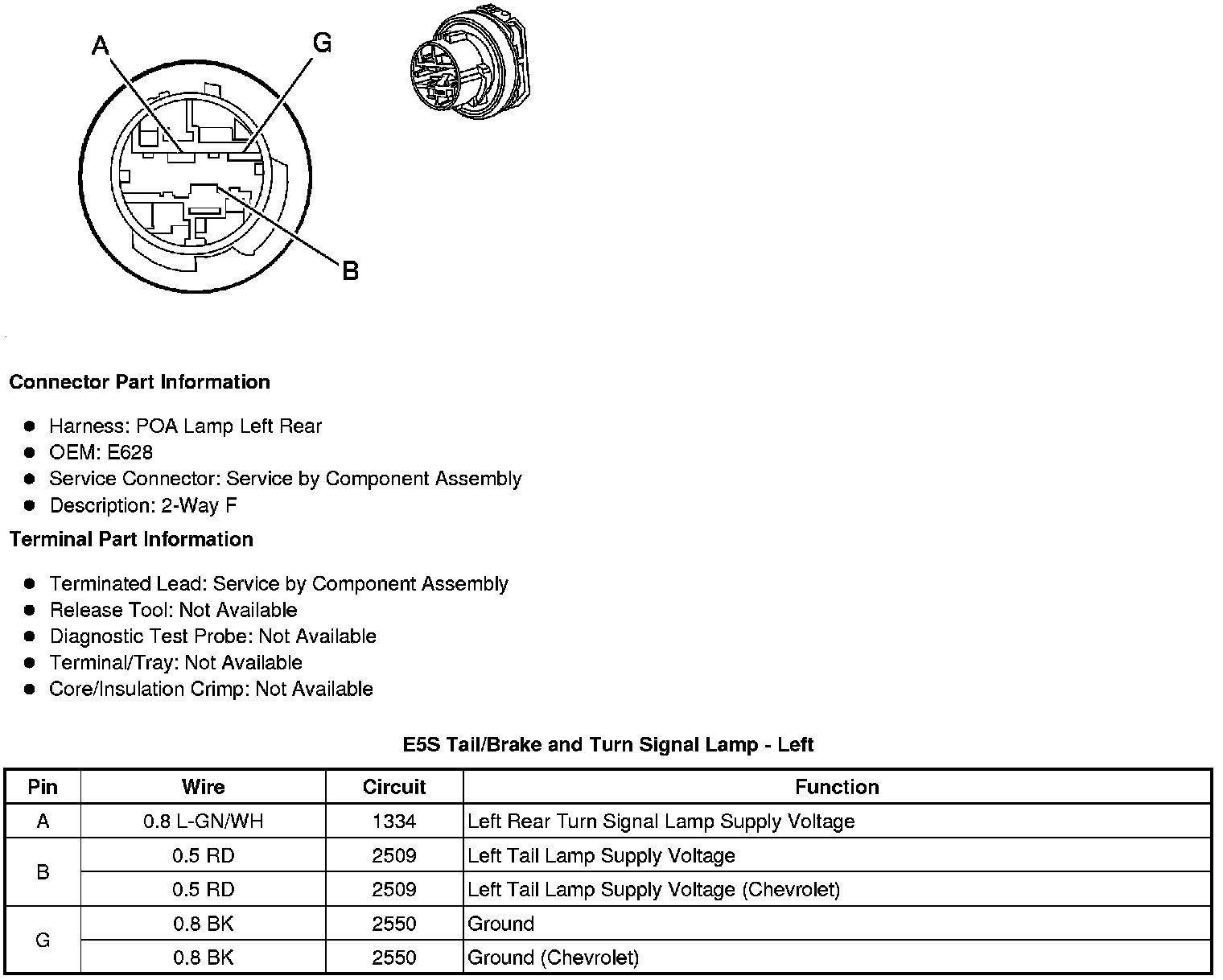

E5S Tail/Brake and Turn Signal Lamp - Left

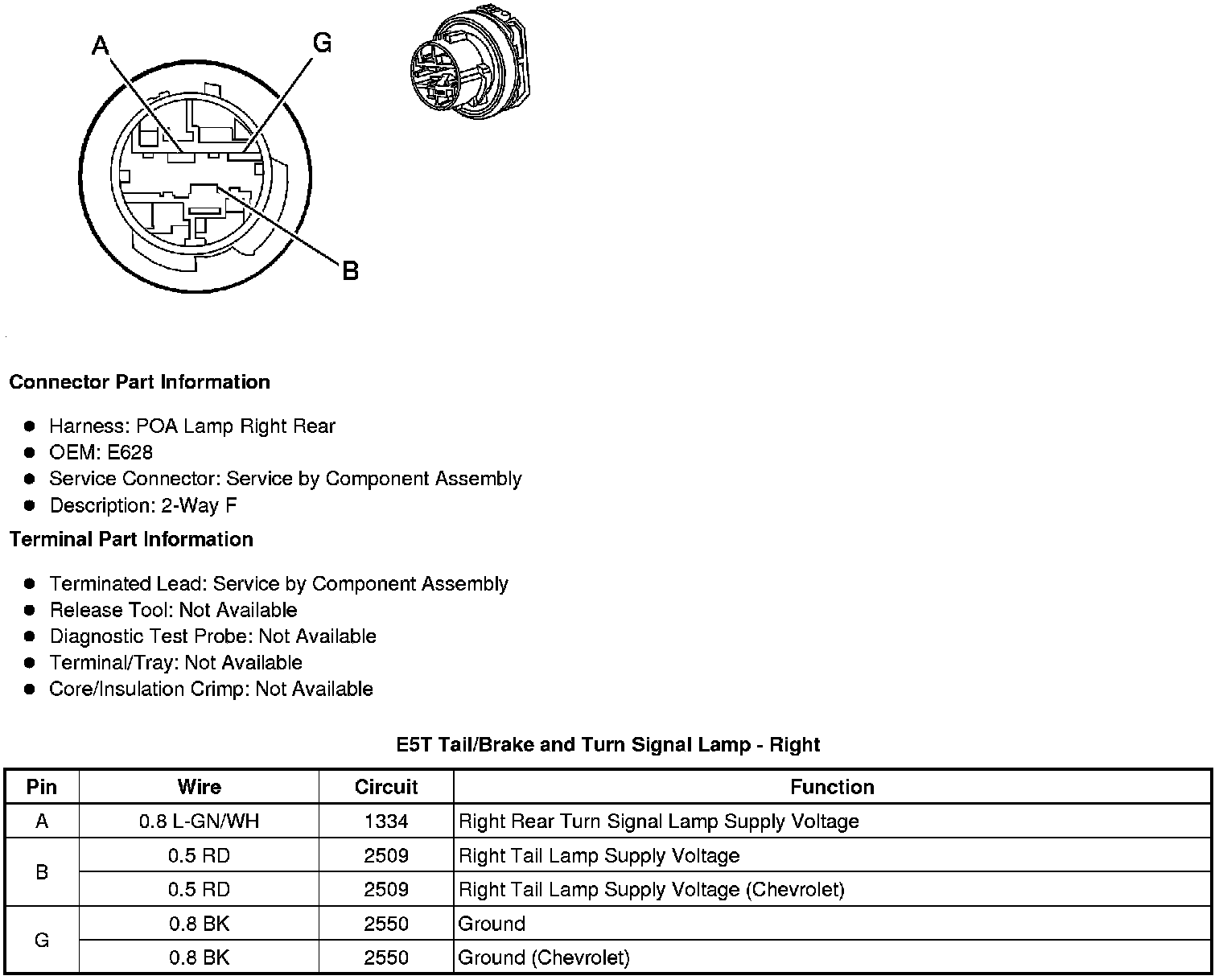

E5T Tail/Brake and Turn Signal Lamp - Right
