Front of Vehicle Components

Front of Vehicle/Engine Compartment Component Views

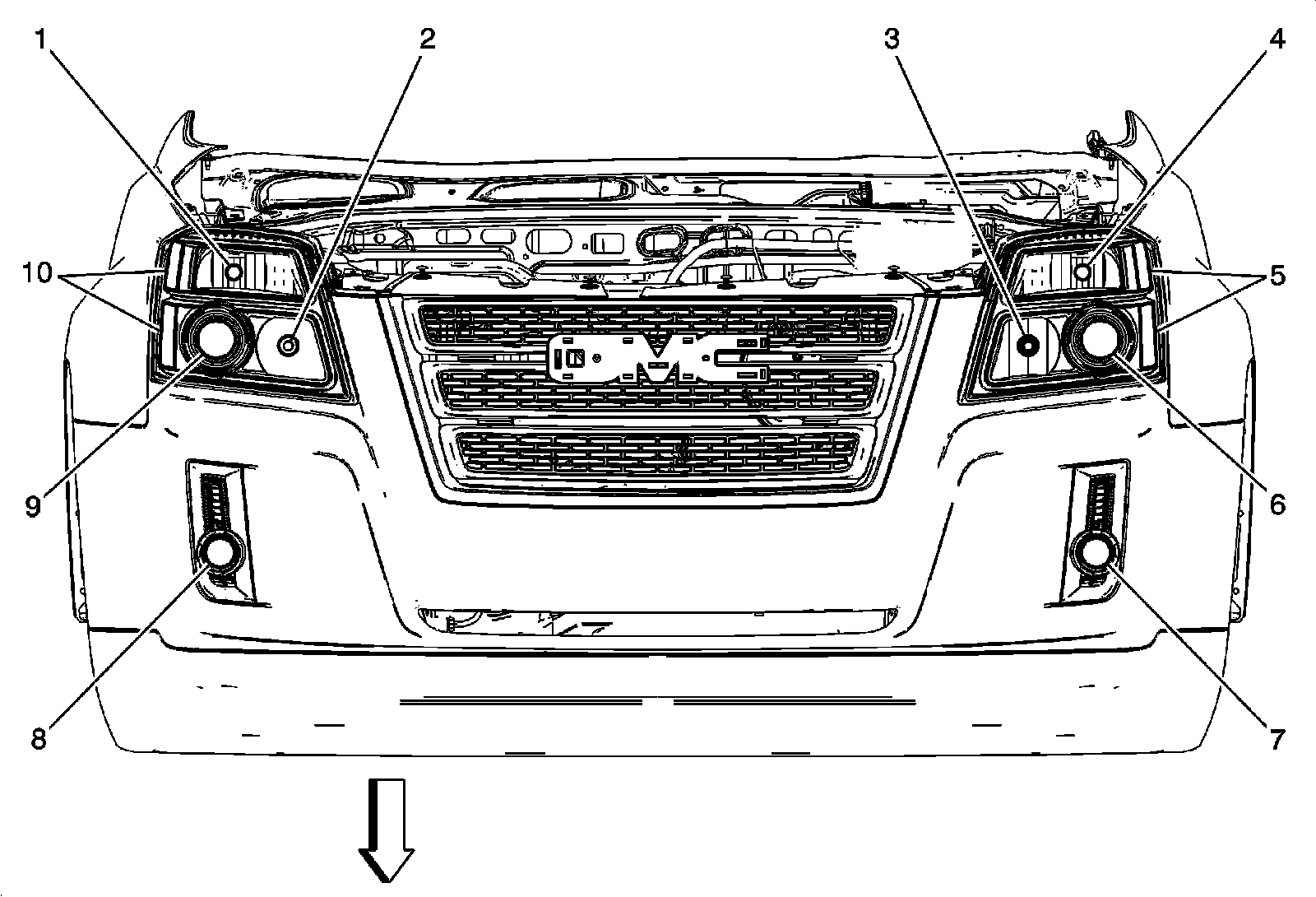

Front of Vehicle Components (GMC)




1 - E4P Park/Turn Signal Lamp - Right
2 - E4F Headlamp - Right High Beam
3 - E4E Headlamp - Left High Beam
4 - E4N Park/Turn Signal Lamp - Left
5 - E2LF Side Marker Lamp - Left Front
6 - E4G Headlamp - Left Low Beam
7 - E29LF Fog Lamp - Left Front (T96)
8 - E29RF Fog Lamp - Right Front (T96)
9 - E4H Headlamp - Right Low Beam
10 - E2RF Side Marker Lamp - Right Front
