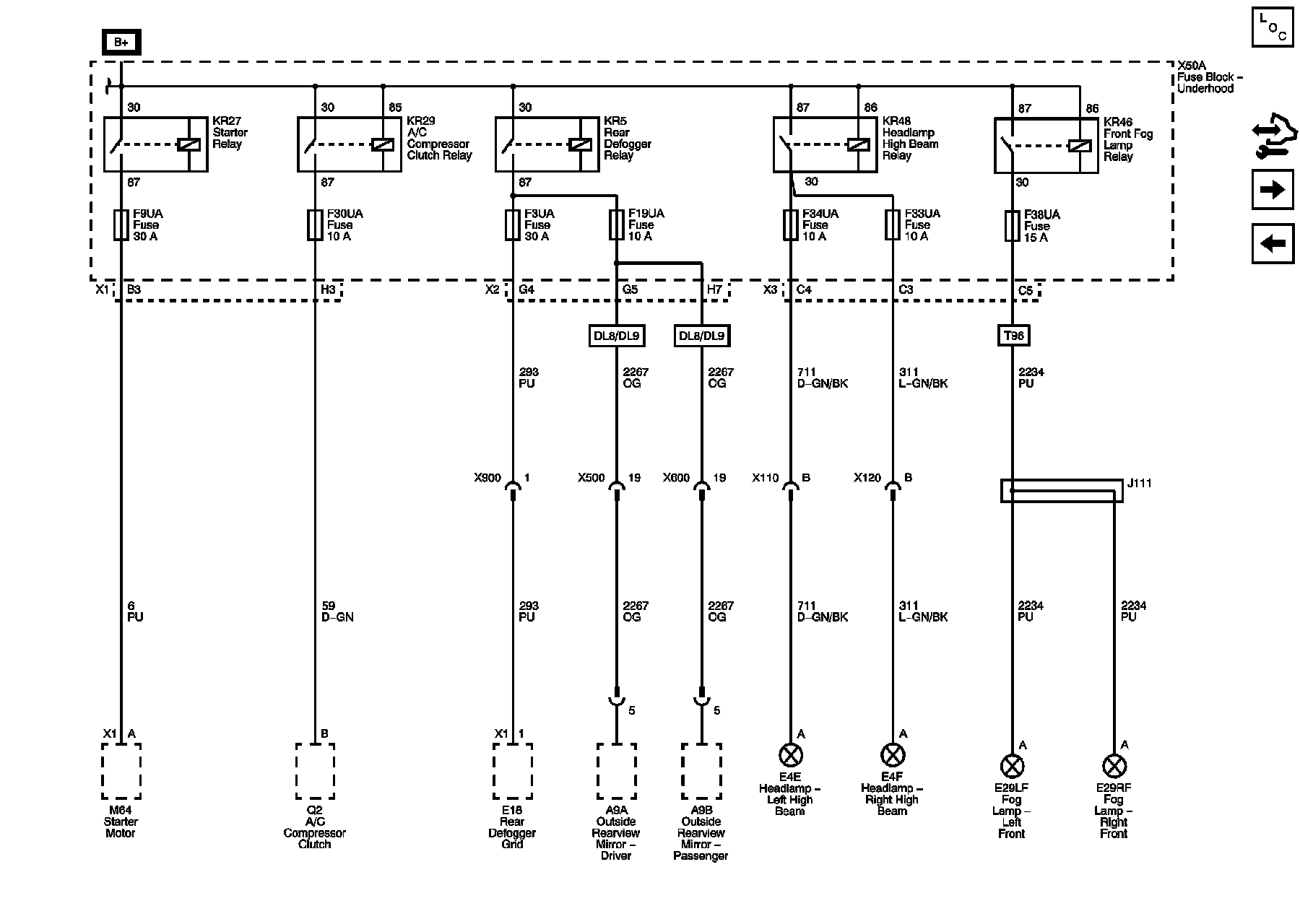

Power Distribution Schematic 12
Power Distribution Schematics
F3UA, F9UA, F19UA, F30UA, F33UA, F34UA, and F38UA Fuses
