Fuse Block - Instrument Panel




Electrical Center Identification Views

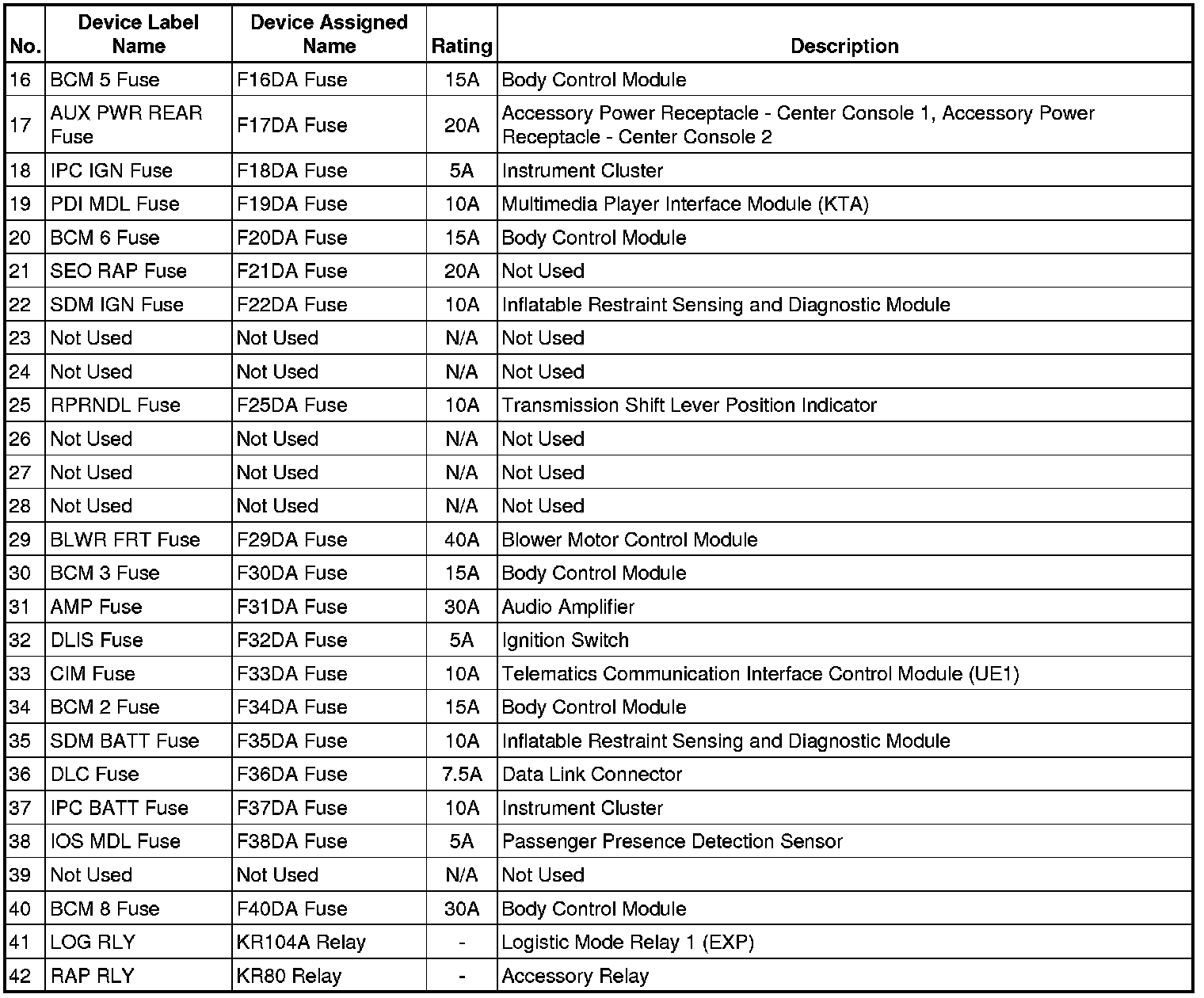

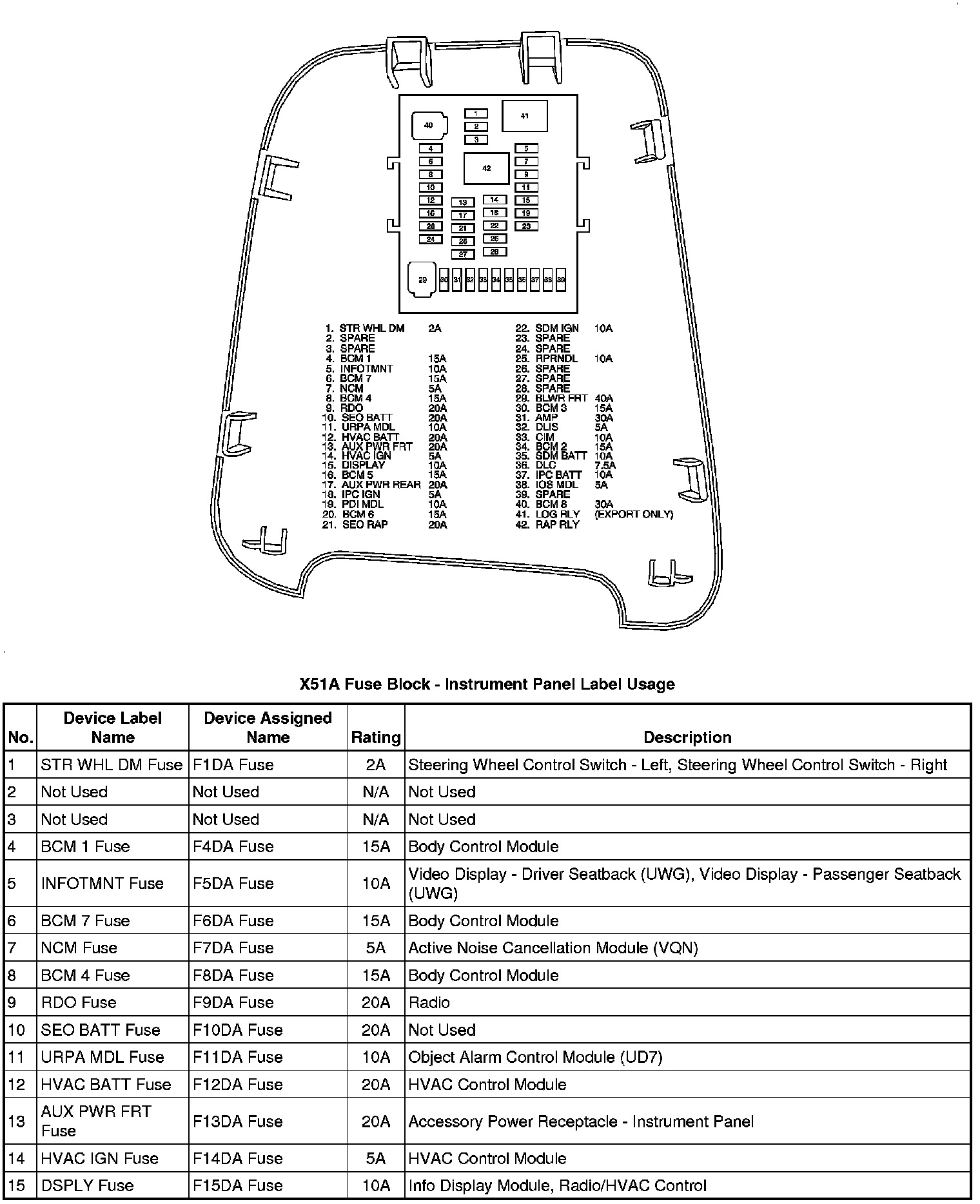

X51A Fuse Block - Instrument Panel Label









X51A Fuse Block - Instrument Panel, Top View





X51A Fuse Block - Instrument Panel, Bottom View

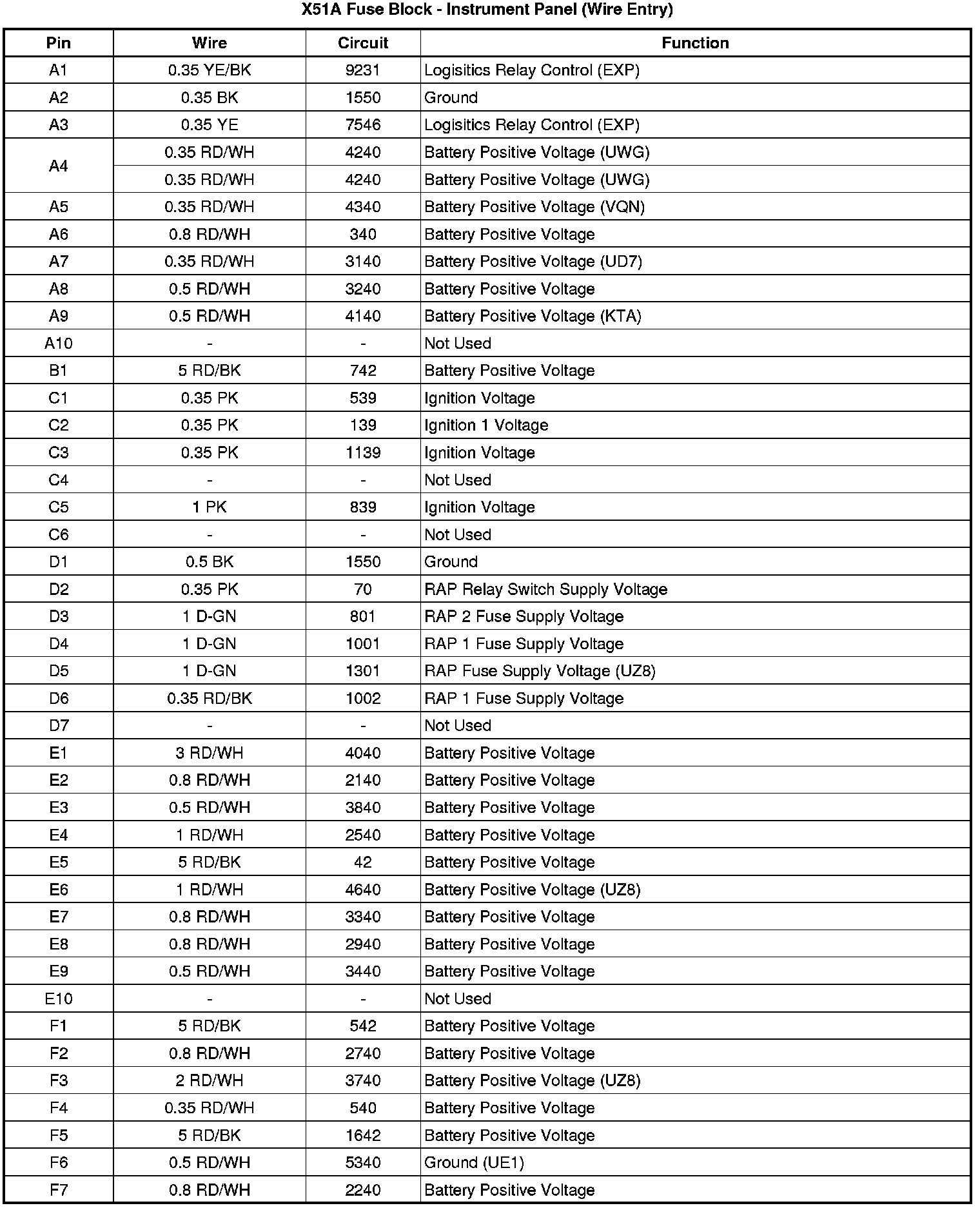

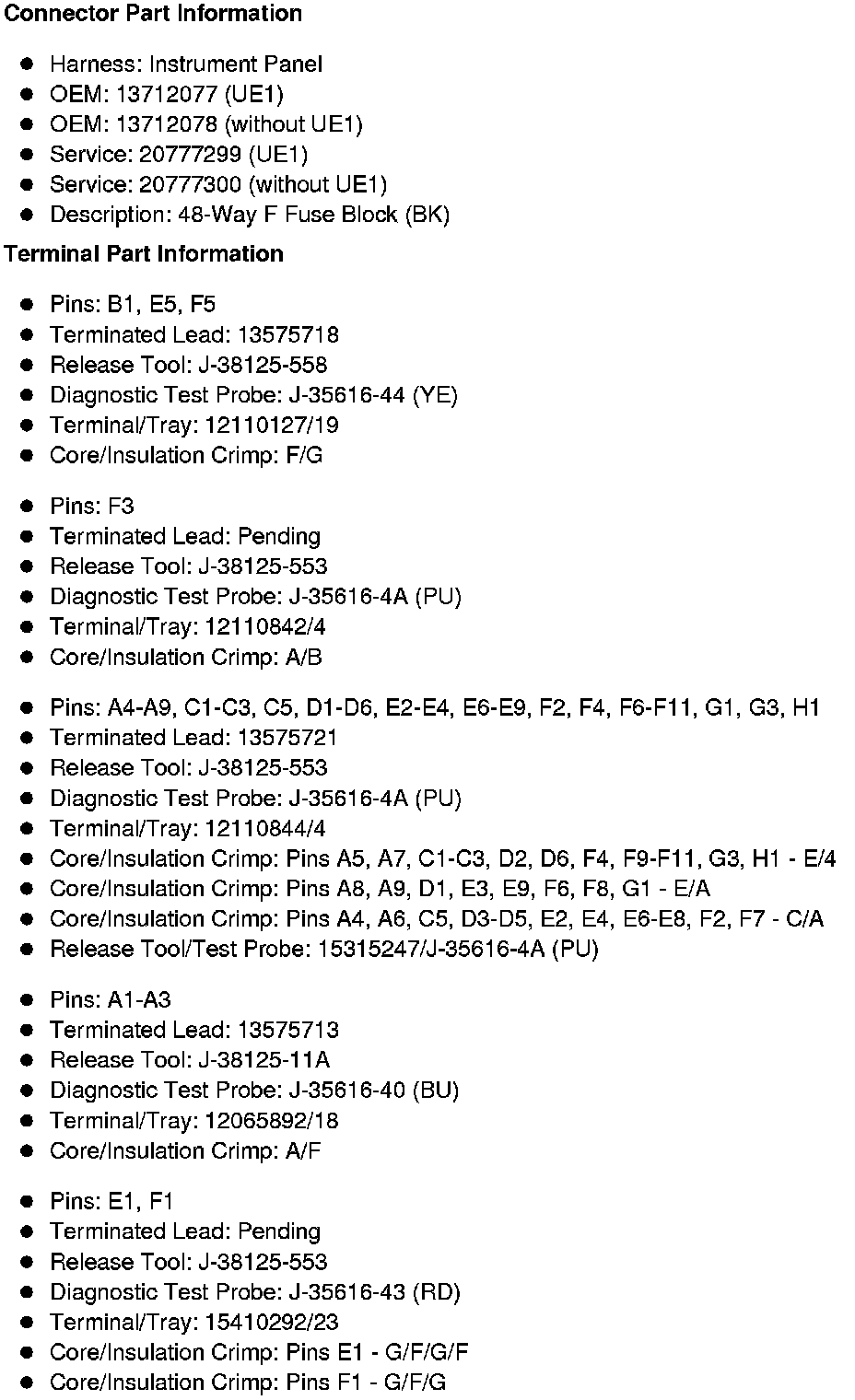

X51A Fuse Block - Instrument Panel Wire Entry
