System Diagram
Component Connector End Views

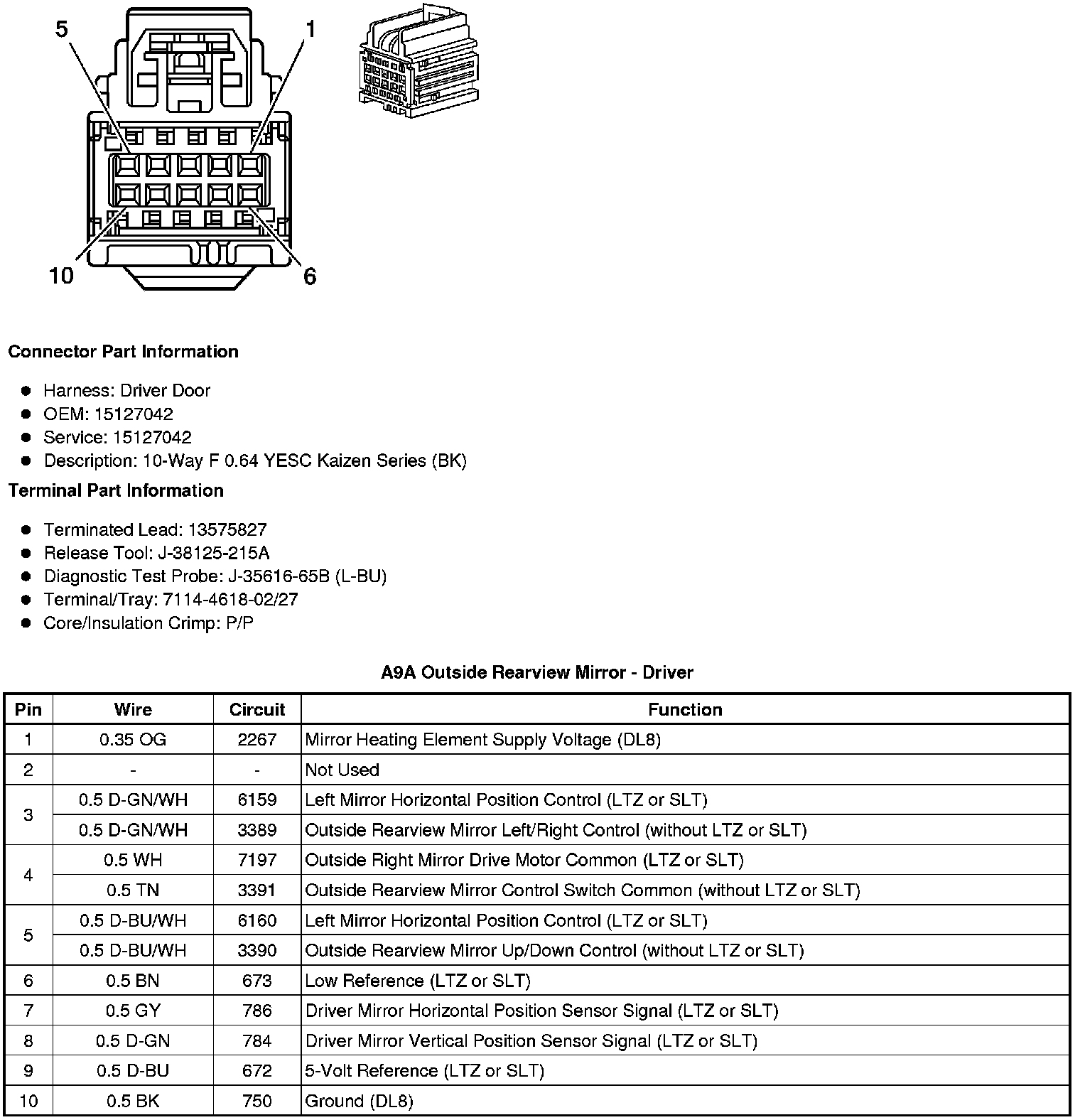

A9A Outside Rearview Mirror - Driver
A9B Outside Rearview Mirror - Passenger

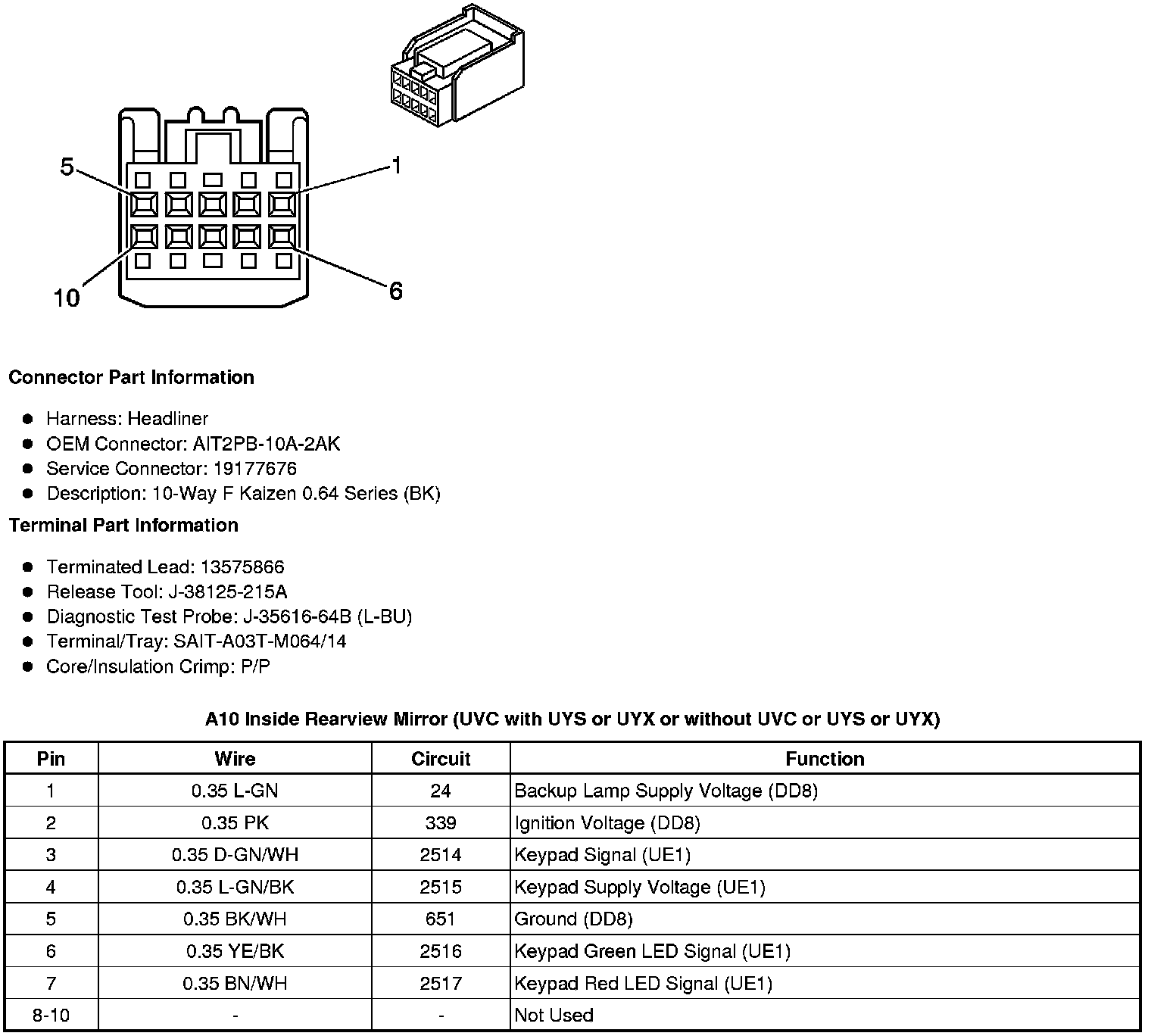

A10 Inside Rearview Mirror (UVC with UYS or UYX or without UVC or UYS or UYX)

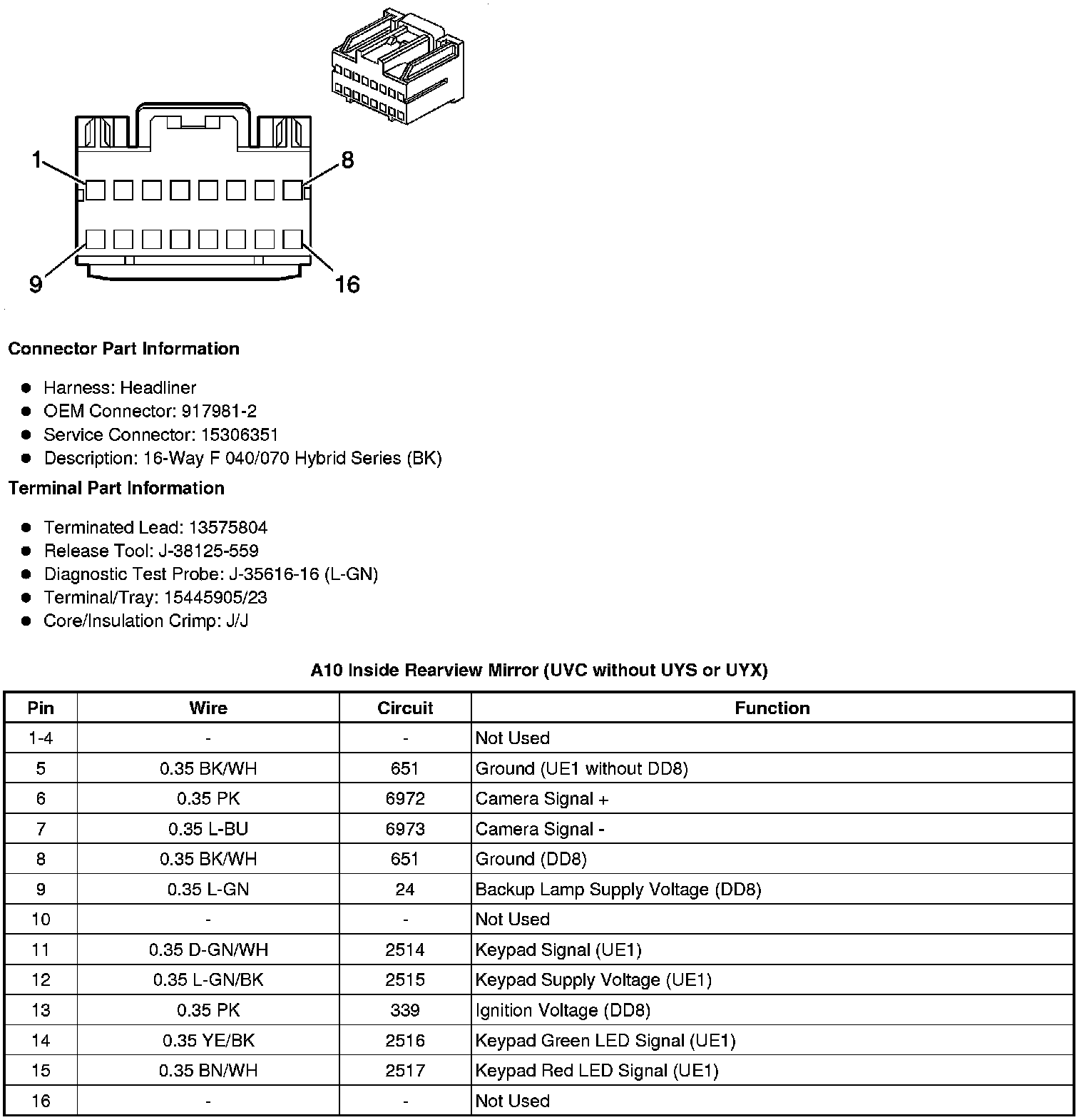

A10 Inside Rearview Mirror (UVC without UYS or UYX)
