Trunk / Liftgate Latch




Component Connector End Views

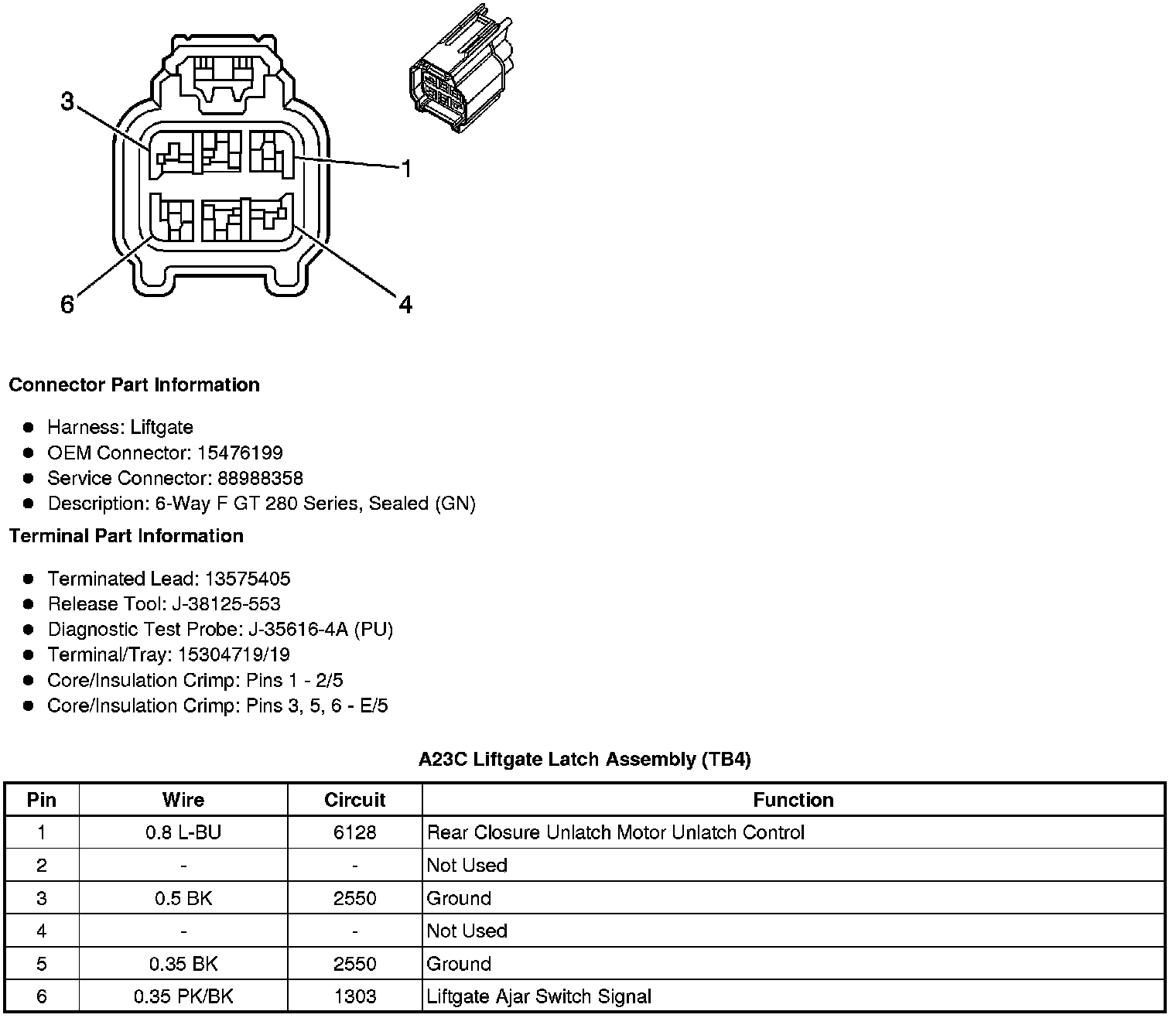

A23C Liftgate Latch Assembly (TB4)

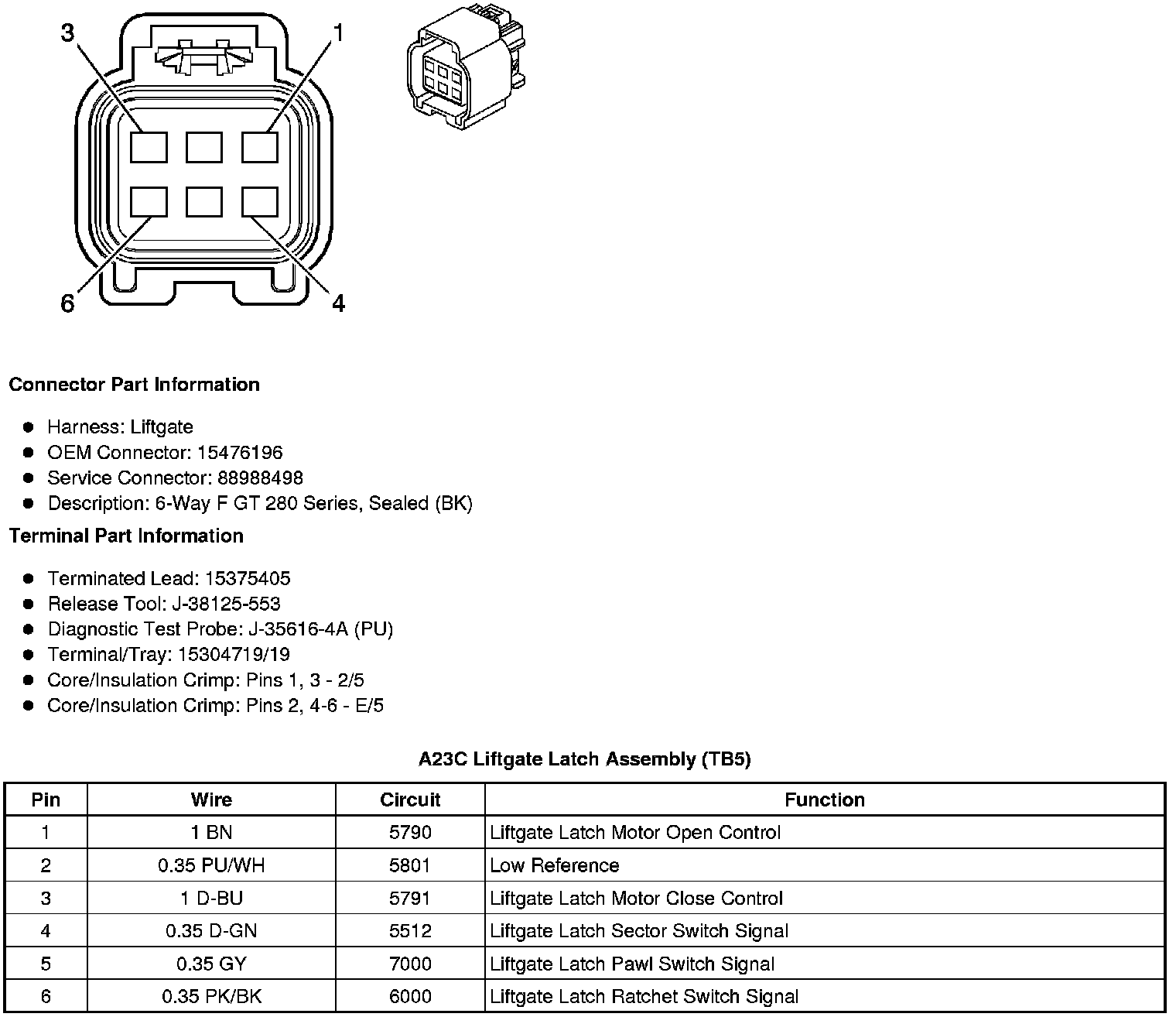

A23C Liftgate Latch Assembly (TB5)
